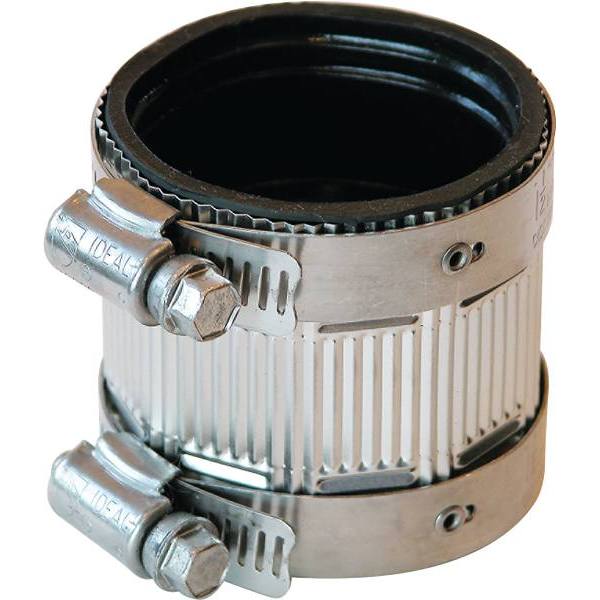

Fernco NH150 No-Hub Couplings 1-1/2 in.

Product Description

The FERNCO NH150 No-Hub Coupling is engineered to connect no-hub cast iron pipe. It features a patented shield design that provides maximum transfer of pressure from the clamps to the gasket and pipe. This coupling replaces the less-efficient hub and spigot in various applications and is rated for above or below ground applications.

• Patented Bi-Directional Shield Design adjusts to a variety of pipe diameters and circumferences, eliminating leak paths.
• Connects Cast Iron Pipe to Cast Iron Pipe without the need for a traditional hub and spigot joint.
• Specially Beaded Gasket meeting ASTM C564 requirements, consists of an elastomeric compound with strategically positioned grooves and beads.

Product Highlights

The coupling offers enhanced sealing force and fast, easy installation. All components are made from 300 series stainless steel.

Product Information

Standard Information

• Brand: FERNCO
• Manufacturer Part Number: FERNCO-NH150
• Country of Origin: USA

Technical Specifications

• Application: Plumbing
• Fitting Connectivity: Clamp
• Fitting Connectivity A Side: Clamp
• Fitting Connectivity B Side: Clamp
• Fitting Material: Cast Iron
• Fitting Size: 1-1/2 in.
• Fitting Type: Coupling
• Inlet Size: 1-1/2 in.
• Lead-Free: Lead-Free
• Media: Water
• Outlet Size: 1-1/2 in.
• Package Quantity: 1
• Pipe Schedule: Schedule 40
• Shape: Cylindrical
• End Style: No-Hub
• Fitting/Connector Type: Coupling
• Nominal Size: 1-1/2 In
• Pressure Rating: 4.3 psi Tested
• Type: Standard
• Maximum test pressure: 4.3 PSI (29.6KPA)
