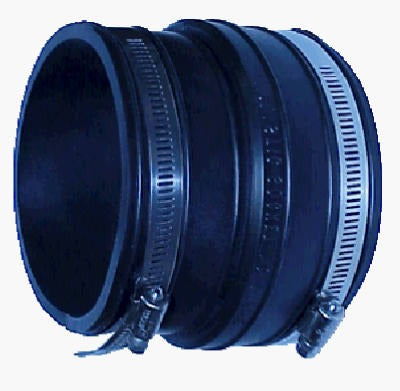

Fernco Inc P1056-43 Flexible Reducing Coupling 4x3

Product Description

The FERNCO INC P1056-43 is a flexible reducing coupling designed to join 4-inch pipe to 3-inch pipe in drain, waste, and vent (DWV) systems. It uses a shear-ring design with two stainless steel clamps that compress a flexible elastomeric sleeve to create a leak-resistant, no-hub connection. Licensed plumbers install this fitting when transitioning between different pipe diameters in underground or above-grade piping runs. The stainless steel clamps provide corrosion resistance and consistent clamping torque across the sleeve.

This coupling is suited for residential and light commercial plumbing applications where a reducer is needed between dissimilar or same-material pipe sections. It connects cast iron pipe to cast iron pipe, plastic pipe to plastic pipe, or cast iron pipe to plastic pipe. Typical installation scenarios include stack repairs, building drain transitions, and retrofit connections where rigid couplings are impractical due to pipe misalignment or vibration.

Key Features

• Reduces from 4-inch to 3-inch pipe in a single fitting
• Two stainless steel clamps included for secure, even compression
• Flexible elastomeric sleeve accommodates minor pipe misalignment
• Connects cast iron or plastic to cast iron or plastic pipe
• No-hub design eliminates the need for solvent cement or lead and oakum

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 4-inch to 3-inch no-hub DWV pipe connections in residential and commercial plumbing systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and the IPC or applicable adopted code. Shut off flow and ensure the pipe ends are clean, deburred, and free of sharp edges before sliding the coupling into position. Tighten the stainless steel clamps evenly using a torque-limiting screwdriver or nut driver to the coupling manufacturer's specified procedure. Do not over-drive the clamps, as over-compression can damage the elastomeric sleeve.

Technical Specifications

• Inlet Size: 4 inches
• Outlet Size: 3 inches
• Clamp Material: Stainless Steel
• Number of Clamps: 2
• Compatible Pipe Materials: Cast Iron, Plastic
• Weight: 45 pounds
• Unit of Measure: EA
• Package Quantity: 40

Standard Information

• Brand: FERNCO INC
• Manufacturer Part Number: P1056-43
