Product Description

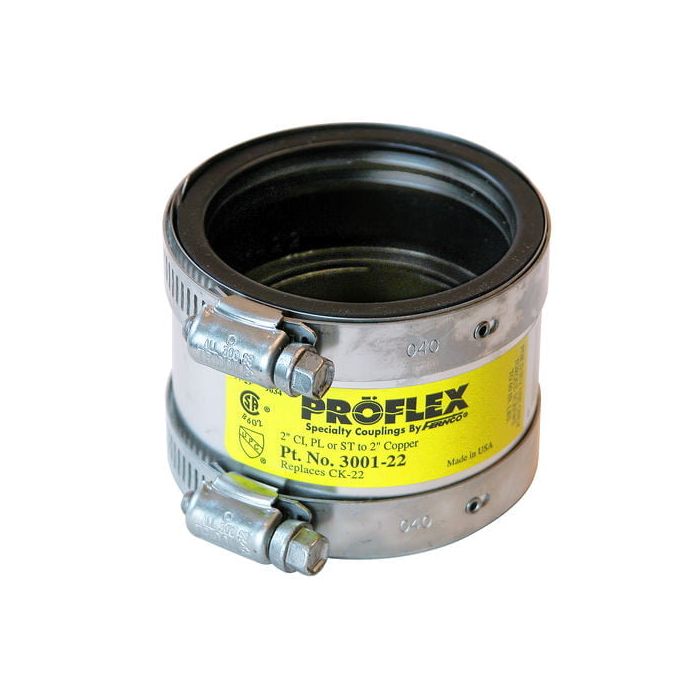

The FERNCO 3001-22 ProFlex shielded coupling is a neoprene gasket coupling designed for quick, reliable connections in drain, waste, and vent (DWV) piping systems. The neoprene sleeve compresses around the pipe ends and is secured by stainless steel shield bands, creating a leak-resistant mechanical joint without solvent cement or heat. The 2-inch size fits standard 2-inch pipe ends across multiple material types. Licensed plumbers and journeymen pipe fitters install this coupling for DWV repairs and new rough-in work in residential and light commercial construction.
The 3001-22 is rated for above-ground use only and is compatible with cast iron, plastic, steel, and copper drain, waste, and vent pipe. It is a practical solution for connecting dissimilar pipe materials in repair scenarios where the existing system may include a mix of older cast iron and newer PVC or ABS runs. The shielded design provides additional rigidity compared to unshielded couplings, making it well suited for exposed or accessible piping in crawl spaces, basements, and mechanical rooms.
Key Features
- Neoprene gasket sleeve seals against cast iron, plastic, steel, and copper pipe surfaces
- Stainless steel shield bands add structural support and clamp force across the joint
- No solvents, flames, or special tools required for installation
- 2-inch nominal size fits standard DWV pipe ends
- Above-ground rated for drain, waste, and vent applications
Compatibility
Compatible with 2-inch cast iron, plastic, steel, and copper drain, waste, and vent pipe. Rated for above-ground installations only. Not intended for buried or below-slab applications.
Installation Notes
Installation is performed by a licensed plumber. Shut off any upstream flow and ensure the pipe section is dry before installing the coupling. Slide the coupling onto one pipe end, align the joint, then position the neoprene sleeve evenly over both pipe ends before tightening the stainless steel clamp bands. Do not overtighten bands; follow the torque guidance printed on the coupling packaging or the manufacturer installation sheet. Verify the finished joint complies with local plumbing code requirements under the IPC or applicable state plumbing code before restoring flow.
Technical Specifications
-
Pipe Size: 2 inches
-
Gasket Material: Neoprene
-
Band Material: Stainless steel
-
Application: Above ground drain, waste, and vent (DWV)
-
Compatible Pipe Materials: Cast iron, plastic, steel, copper
Standard Information
-
Brand: FERNCO
-
Manufacturer Part Number: 3001-22
