Fernco 1056-55RC COUPLING 5X5 CI/PL RC

Product Description

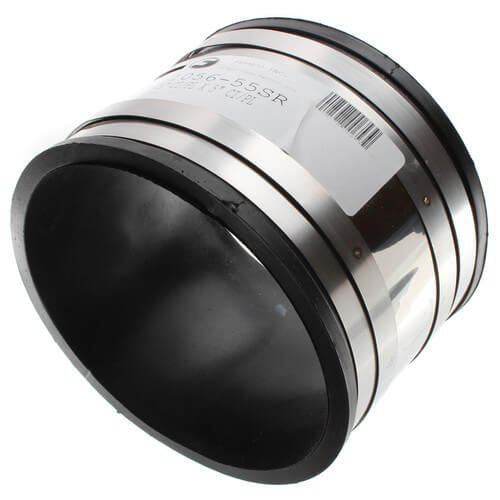

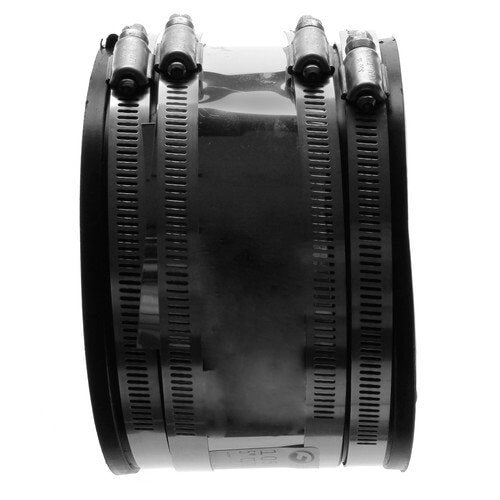

The Fernco 5 in. Strong Back PVC Shielded Coupling, model 1056-55RC, connects various pipe materials such as cast iron, PVC, copper, steel, and lead. It is designed for underground applications and is tested to ensure durability. The coupling is composed of flexible PVC and comes with a stainless-steel shield and molded-in bushing for added strength and stability.

• Suitable for above and below ground applications
• Mechanical connection type
• Corrosion-resistant stainless-steel components

Product Highlights

This product provides a reliable method to join pipes of different sizes and materials quickly and effectively. It is rated for a maximum test pressure of four-point-three PSI.

Product Information

Standard Information

• Product Type: Coupling
• Size: 5 x 5

Technical Specifications

• Min Temperature: -30°F
• Max Temperature: 140°F
• Temperature Range: -30°F to 140°F
• Torque: 60 lb-in
• Material: PVC
• End Style: Cast Iron, Copper, Lead, Plastic, Steel
• Series: 1056RC
• Dimensions: 5.52 inches
• Length: 3.97 inches
• Domestic/Import: Domestic
