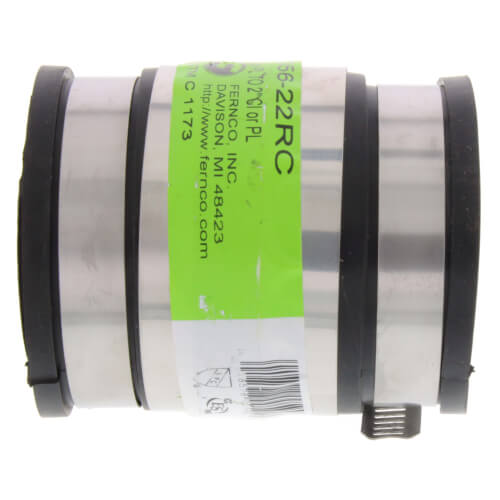

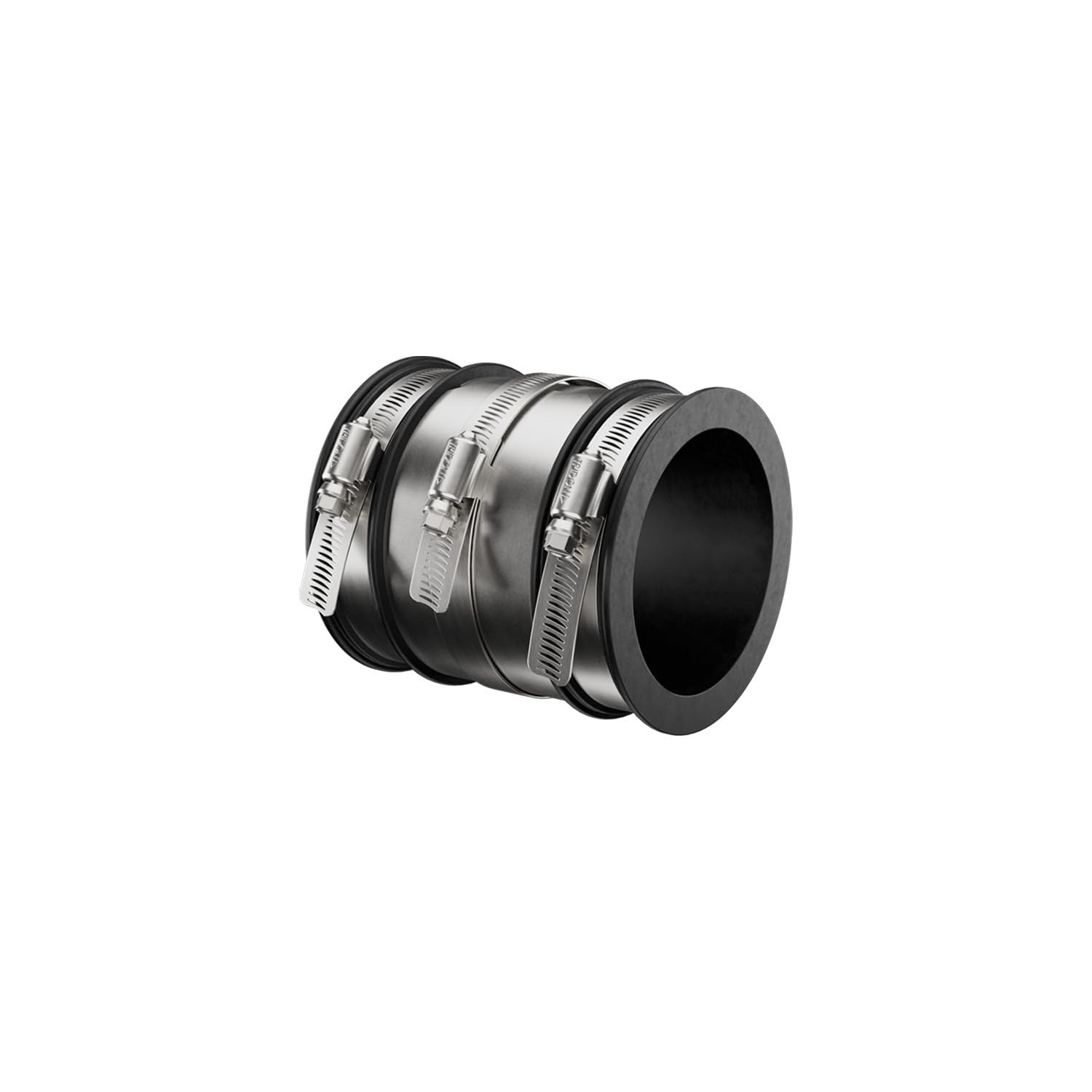

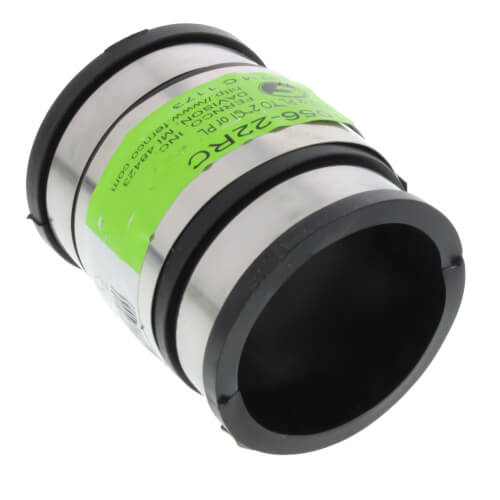

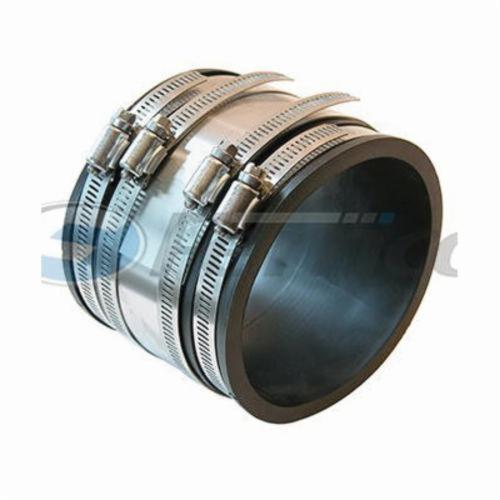

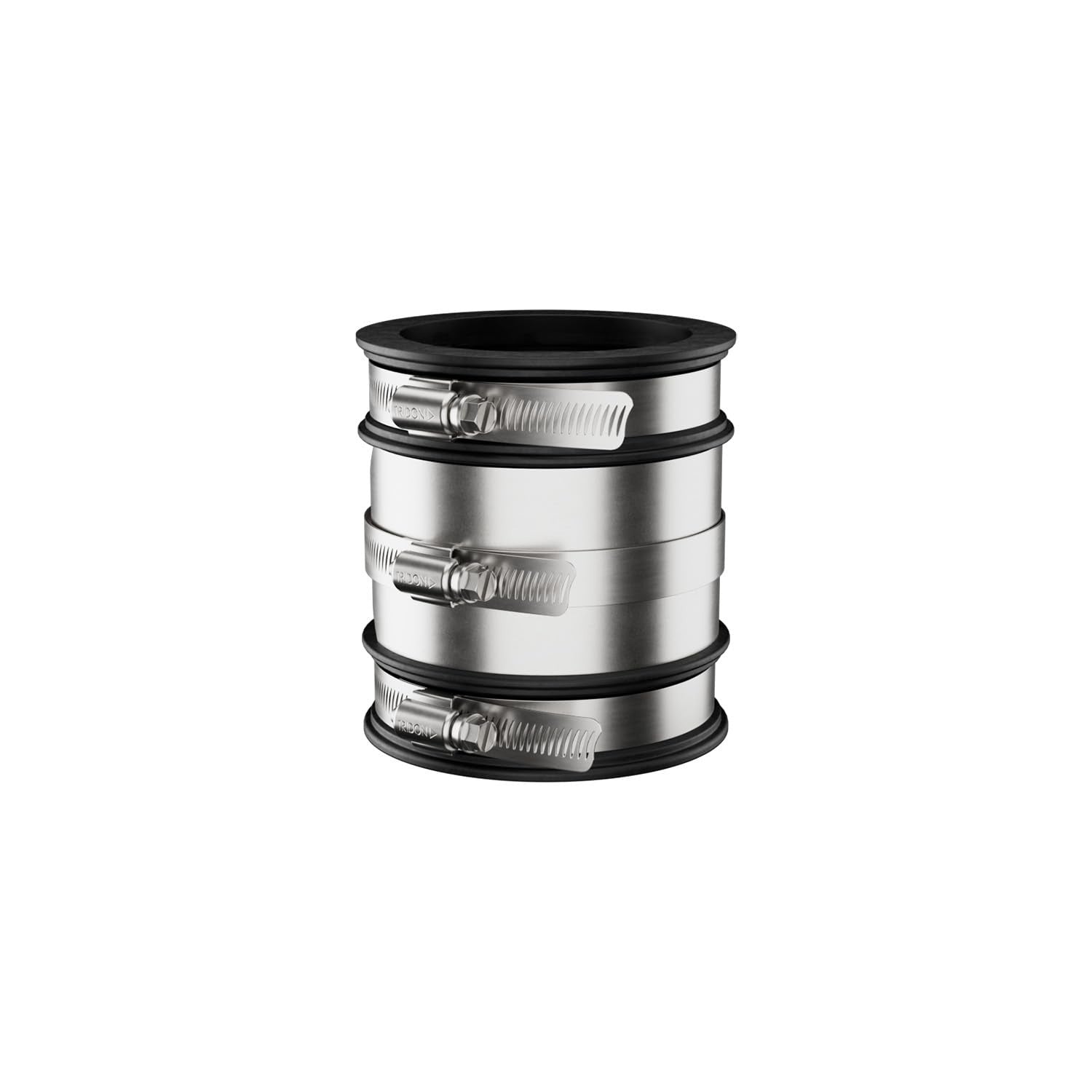

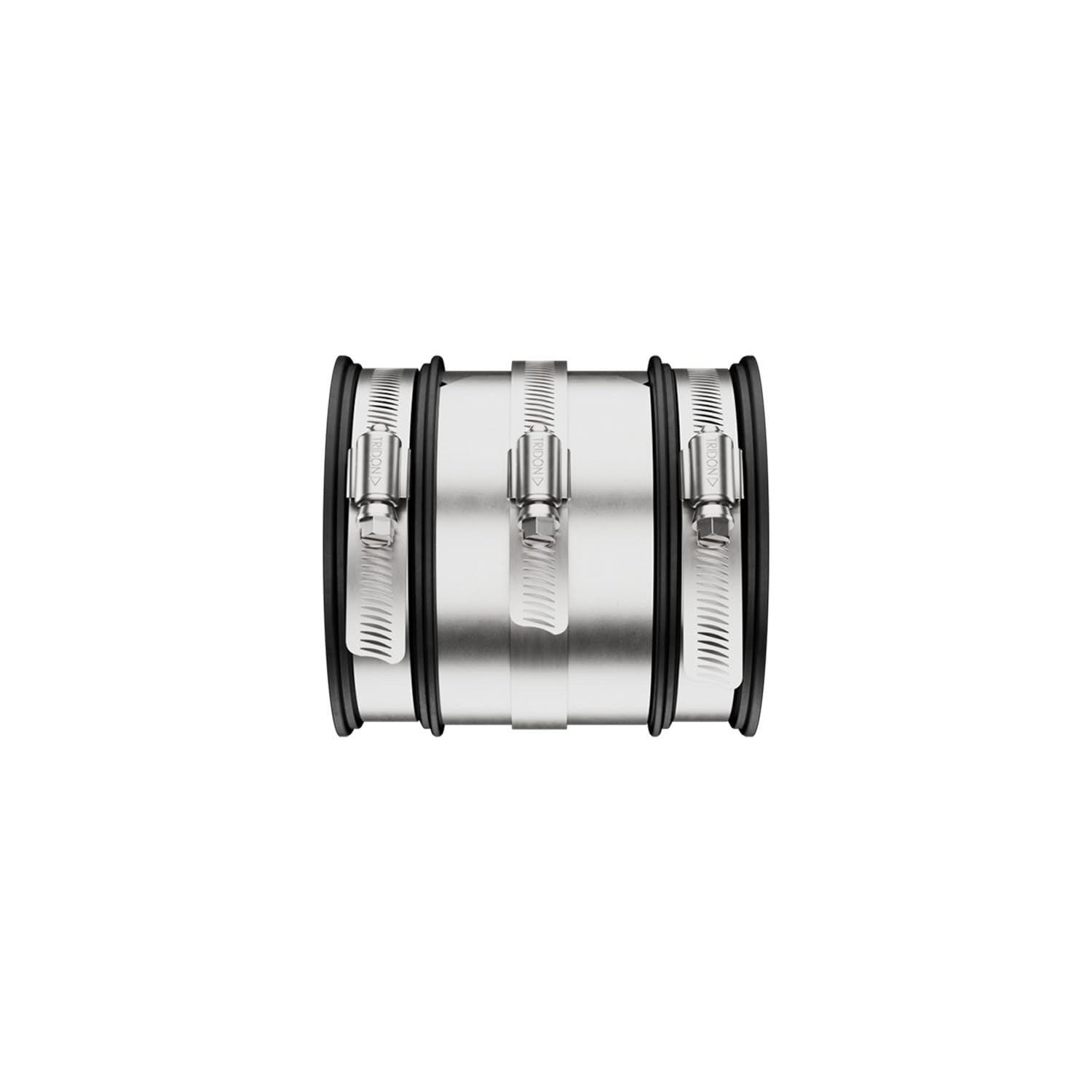

The FERNCO 1056-22RC is a shielded strong-back pipe coupling designed for sewer, drain, waste, and vent piping applications where a secure, gas-tight connection is required. The body is made from elastomeric polyvinyl chloride wrapped in 300 series stainless steel, giving it resistance to heavy earth loads and shear forces while maintaining the flexibility to absorb ground movement and vibration. Rated for both above-ground and below-ground installations, the 1056-22RC accepts pipe outside diameters between 2.15 and 2.5 inches on both ends, with an internal diameter of 2.4 inches. Licensed plumbers and pipefitters are the primary installers on residential, commercial, and municipal drainage work.
The 1056-22RC is suited for connecting cast iron, plastic, or steel pipe to cast iron, plastic, or steel pipe in a wide range of project types. Typical applications include municipal infrastructure, new construction rough-in, retrofit repairs, and temporary connections on active job sites. The coupling works on both permanent and temporary installations, making it a practical choice when a quick, reliable connection is needed without solvent cement or primer. Its flexibility allows it to accommodate minor pipe misalignment, which is common in repair situations where existing pipe ends may not be perfectly straight.
Key Features
Elastomeric PVC body wrapped in 300 series stainless steel resists heavy earth loads and shear forces
Flexible construction absorbs vibration and ground movement, reducing stress on connected pipe

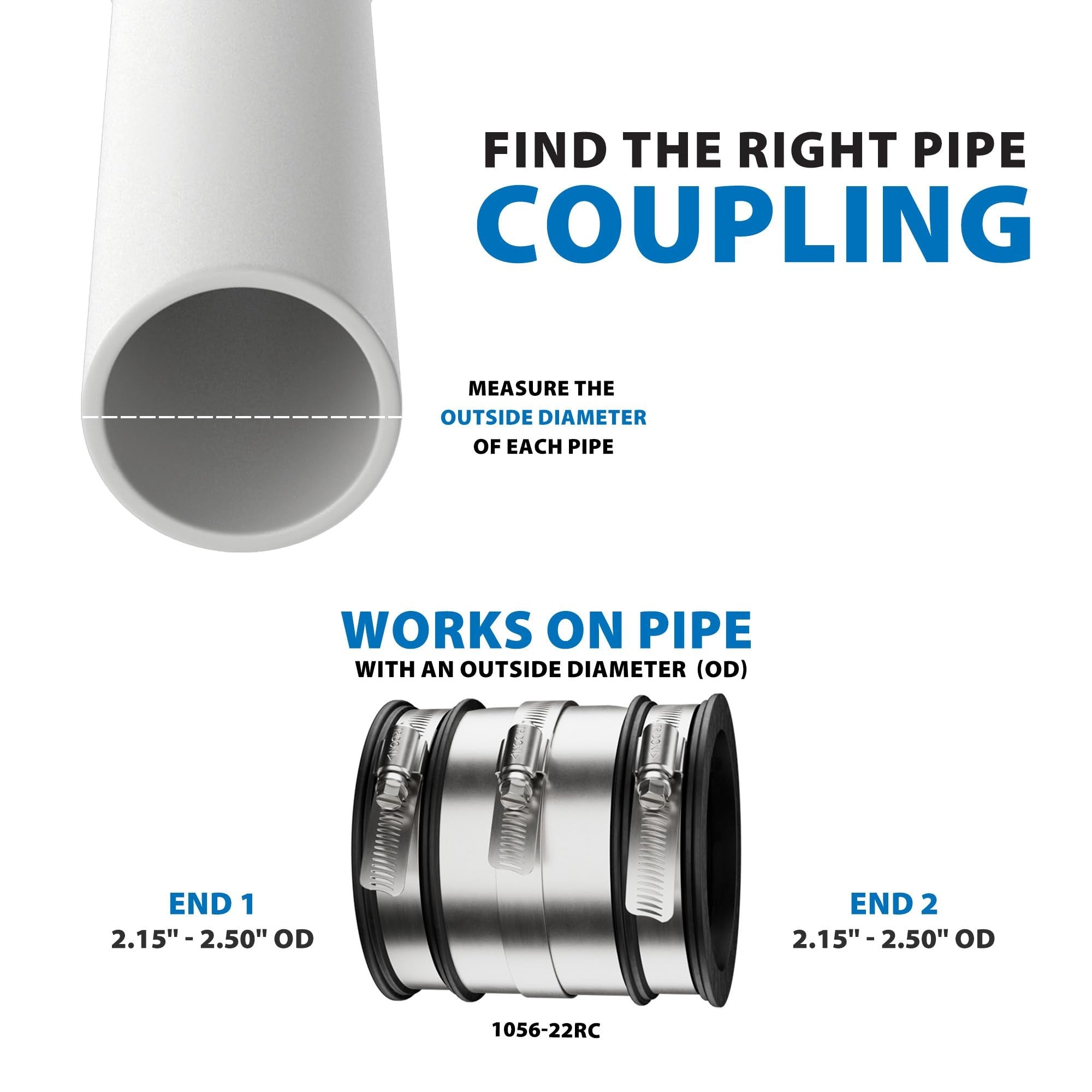

Accepts pipe ODs from 2.15 to 2.5 inches on both ends with a 2.4-inch internal diameter
No primer, solvent cement, or adhesive required for installation
Stainless steel clamps are corrosion-resistant and tighten with a standard screwdriver, nut driver, or torque wrench
Rated for above-ground and below-ground service
Compatibility
Designed for connecting cast iron, plastic, or steel pipe to cast iron, plastic, or steel pipe on drain, waste, and vent systems. Pipe outside diameter must fall between 2.15 and 2.5 inches for proper sealing on both ends.
Installation Notes
Installation is performed by a licensed plumber. Before beginning work, shut off water service and relieve any pressure or flow in the line being serviced. Slide the coupling over the pipe ends, position evenly, and tighten the stainless steel clamps in accordance with the manufacturer torque specifications printed on the product label. Verify compliance with applicable local plumbing codes, including IPC and UPC requirements, before backfilling or covering the connection.
