Federal Signal 225-120R Electraray 25 W (5-1/2 in)

Product Description

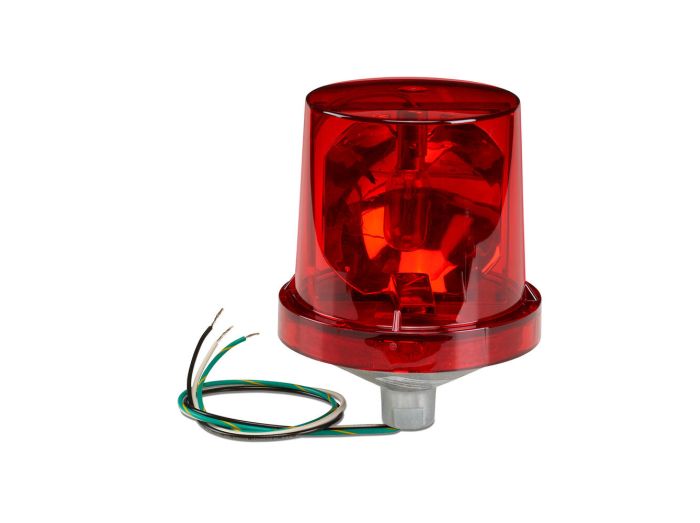

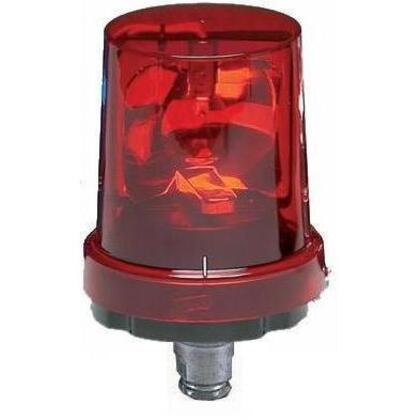

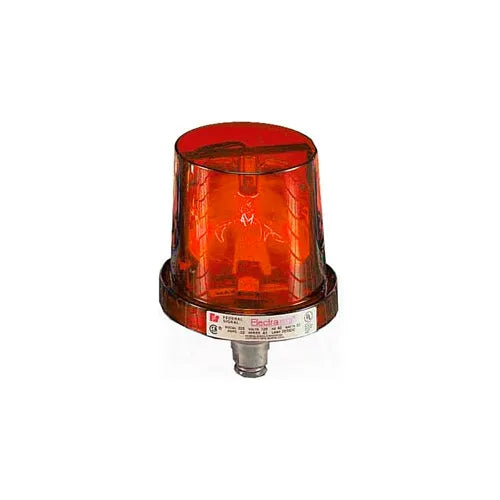

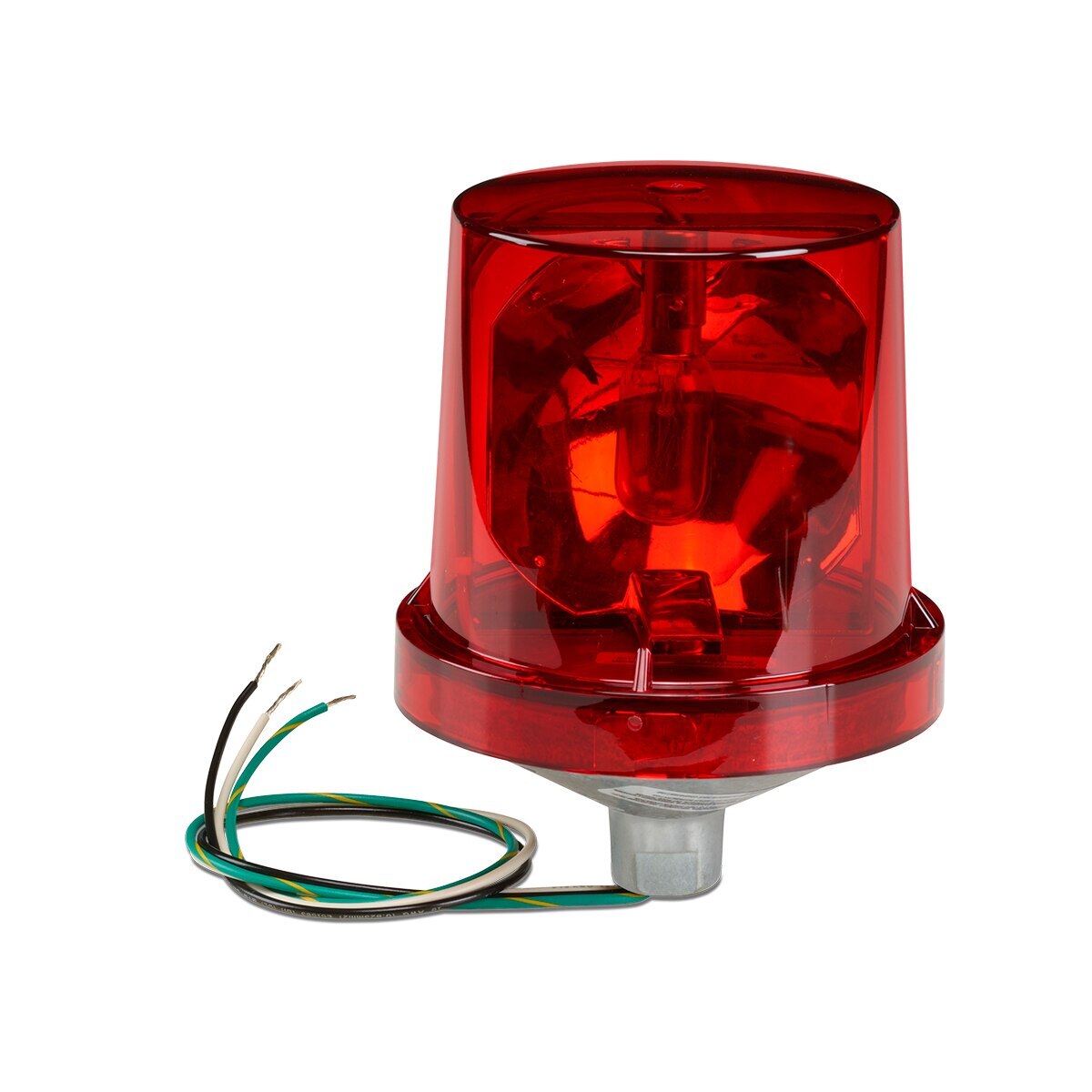

The Federal Signal 225-120R is an Electraray rotating warning light designed for 120 VAC, 50/60 Hz operation. It uses a 25 W incandescent lamp with an injection-molded reflector to produce approximately 90 flashes per minute and about 1,000 candela output. The unit is NEMA 4X / IP66 / IP69K rated for indoor and outdoor use, mounts to a 1/2 in NPT pipe or surface, and operates across an environmental range of -31 to 150 °F.

• 25 W incandescent lamp; ~90 flashes per minute; approximate 1,000 cd light output and ~1,000 hour lamp life
• NEMA 4X / IP66 / IP69K enclosure with closed-cell neoprene gasket for water resistance and washdown compliance
• Integrated 1/2 in NPT pipe or surface mounting; polycarbonate/zinc housing with single retaining screw for lamp access

Product Highlights

Rotating 25 W incandescent beacon, 120 VAC, 1/2 in NPT mount, NEMA 4X / IP66 / IP69K, 90 fpm, ~1,000 cd

Product Information

Standard Information

• Brand: FEDERAL SIGNAL
• Manufacturer Part Number: 225-120R
• Country of Origin: United States

Technical Specifications

• Brand: Federal Signal
• Manufacturer Part Number: 225-120R
• Product Series: Electraray 225
• Model: 225
• Operation: Rotating
• Input Voltage: 120 VAC, 50/60 Hz
• Power Consumption: 25 W
• Operating Current: 0.22 A
• Lamp Type: Incandescent
• Flash Rate: 90 fpm
• Light Output: Approximately 1,000 cd
• Average Lamp Life: Approximately 1,000 hr
• Enclosure Rating: NEMA 4X / IP66 / IP69K
• Certifications: UL Listed, cUL Listed
• Mounting Type: Integrated 1/2 in NPT pipe / Surface mount
• Housing Material: Polycarbonate / Zinc
• Dimensions: 5.5 in W x 5.5 in D x 7.25 in H
• Diameter: 5.5 in
• Height: 7.25 in
• Shape: Cylindrical
• Operating Temperature: -31 to 150 °F
• Country of Origin: United States
• Weight: 2 lbs
