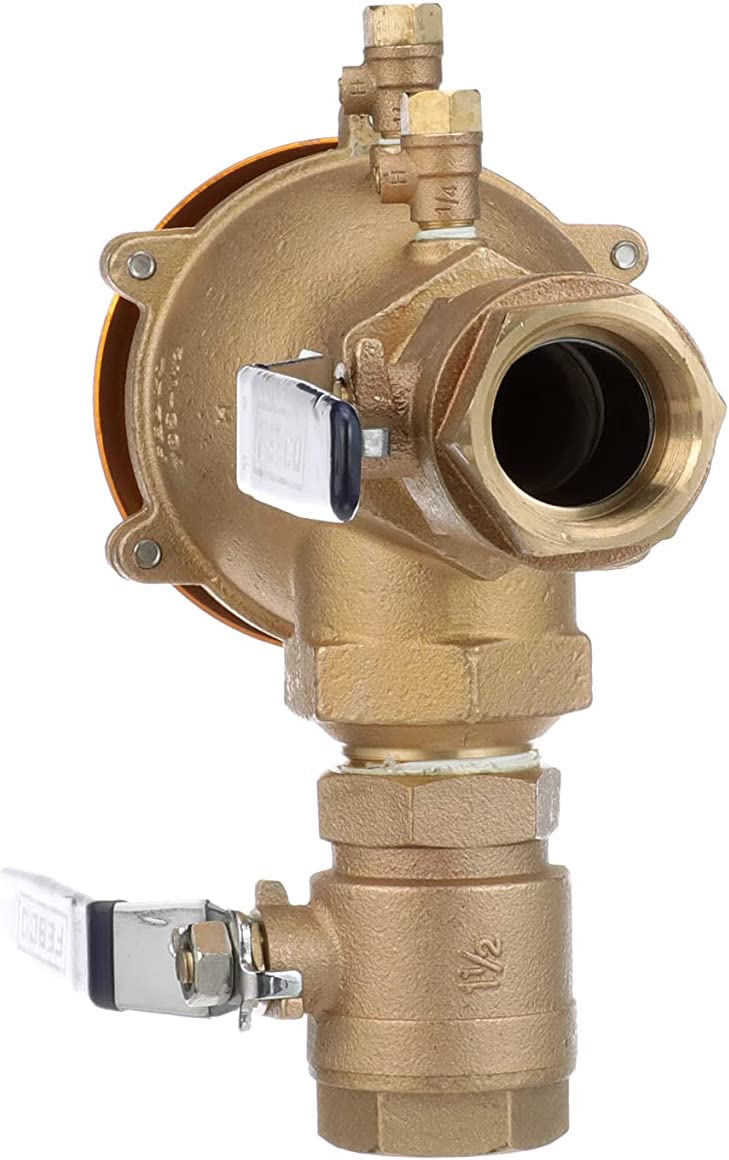

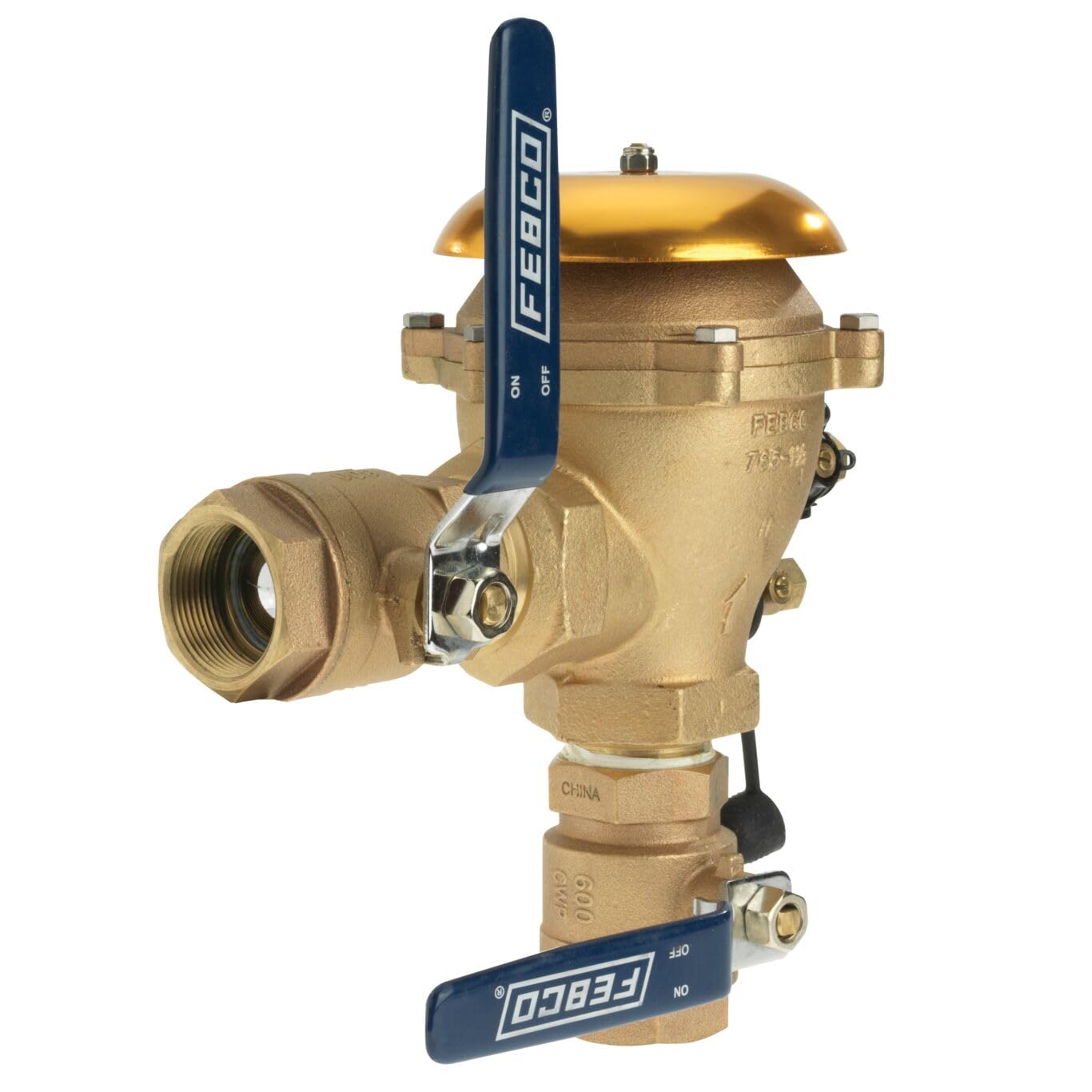

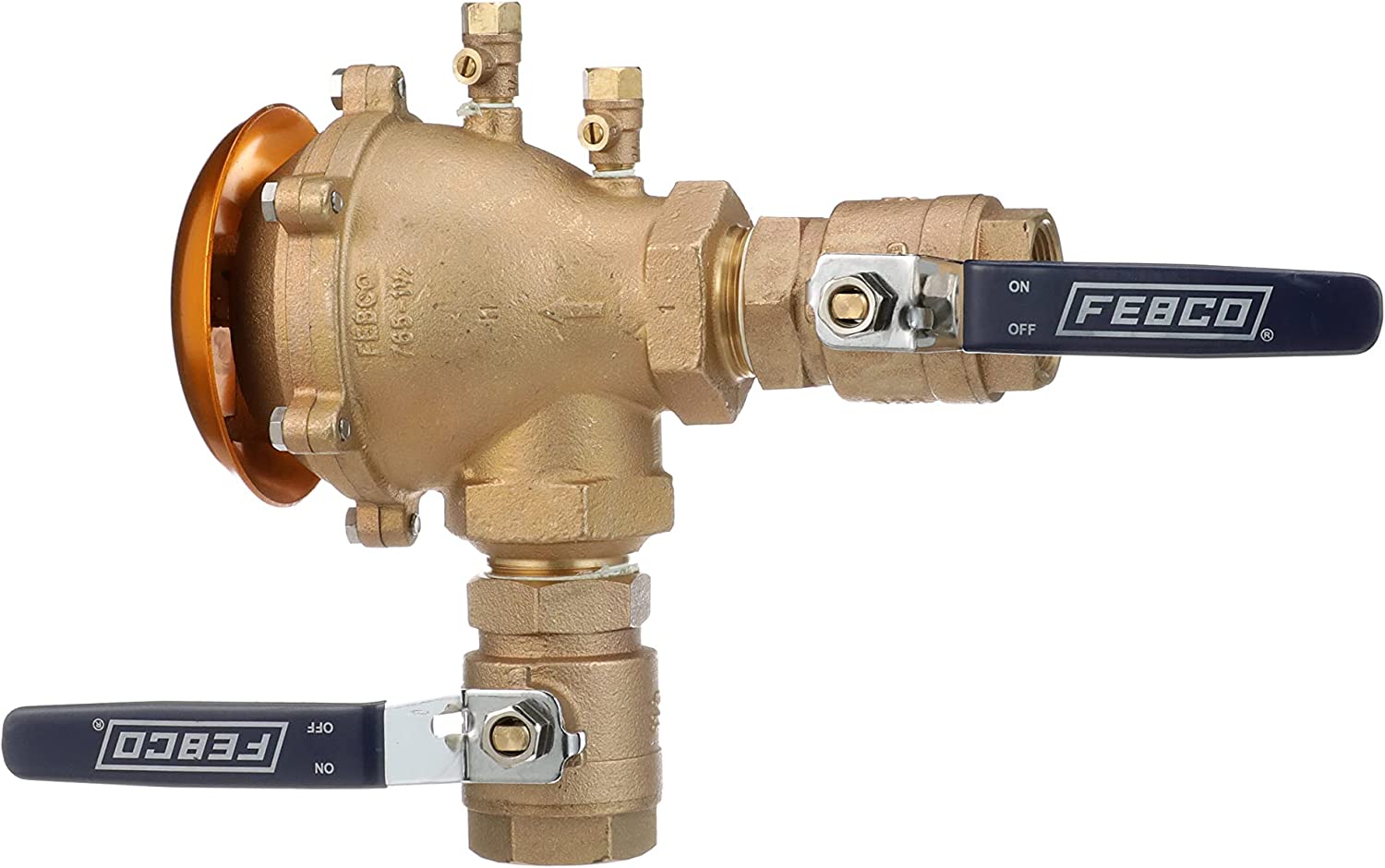

Febco T765GBV Pressure Vacuum Breaker 1-1/2 inches Bronze Freeze Sensor

Product Description

The Febco T765GBV bronze pressure vacuum breaker backflow preventer assembly with freeze sensor protects potable water systems from cross-connection contamination. Designed for minimum head loss, it meets USC FCCCHR Manual specifications. Ideal for industrial plants, cooling towers, laboratories, laundries, swimming pools, and irrigation systems.

• Protects against health hazard and non-hazard backsiphonage.
• Equipped with a plastic bonnet to protect from freeze damage, a spring-loaded check valve and NPT end connections.
• Includes a freeze sensor compatible with SentryPlus Alert technology.

Product Highlights

The Febco backflow preventer ensures water supply integrity with a maximum working pressure of 150 psi and a temperature range of 32° F to 140° F.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: T765GBV

Technical Specifications

• Maximum Working Pressure: 150 psi (10.3 bar)
• Temperature Range: 32 F to 140 F (0 C to 60 C)
• Connections: NPT
• Material: Bronze
• Inlet Type: NPT
• Max Temp (F): 140 F
• Connection Type: FNPT x FNPT
• Max Pressure (PSI): 150
• Outlet Type: NPT
• Product Type: Backflow Preventer
• Min Temp (F): 32 F
• Size: 1-1/2"
• Application: Plumbing
• Backflow Preventer Type: Vacuum Breaker
• Body Finish: Rough Bronze
• Body Material: Bronze
• Body Pattern: N-Pattern
• Brand: FEBCO
• Bypass: No
• Cap And Tether: Yes
• Disc Material: Nitrile
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 1 1/2 IN
• Inlet Connection Size-Metric: 40 MM
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: No
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 10.00
• Minimum Temperature - Celsius: 0.00
• Minimum Temperature-Fahrenheit: 32
• Outlet Connection Size: 1 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: T765GBV
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backsiphonage
• Seat Material: Bronze
• Series: 765
• Strainer: No
• Technologies: Freeze Detection
• Valves: QT
• Type: PVB 1020
• Configuration: N-Pattern
• Connection: NPT
• Manufacturer: Febco
• Model: 765 FZ
• MPN: T765GBV
• Connection Size: 1-1/2 in.
