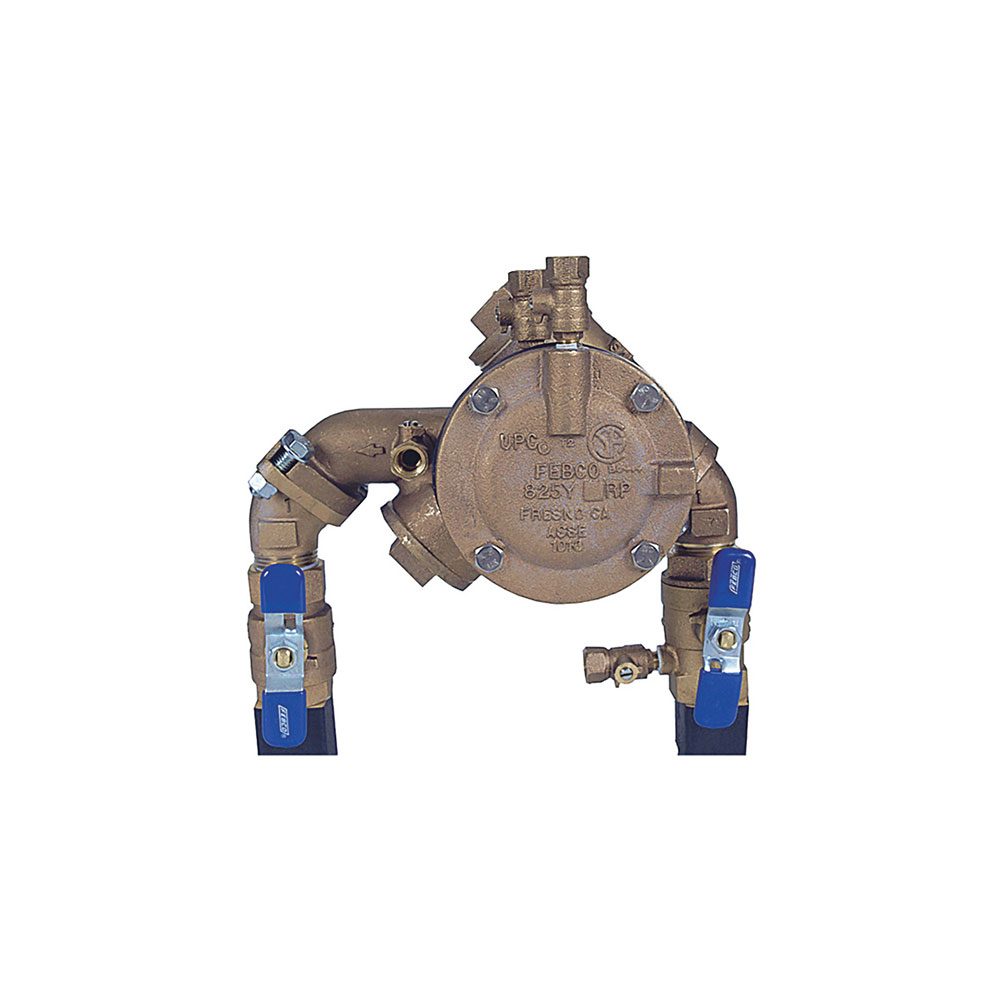

FEBCO LF825Y-QT1 Reduced Pressure Zone Assembly

Product Description

The FEBCO LF825Y-QT1 is a Reduced Pressure Zone Assembly (RPZA) made for protecting potable water systems from high hazard cross-connections. This assembly is available in sizes from three-fourths inch to two inches. It features lead-free bronze construction and NPT end connections.

• Protects potable water systems from contamination due to high hazard cross-connections.
• Features a modular relief valve design to simplify maintenance procedures.
• Constructed with lead-free bronze and stainless steel components for potable water compatibility.

Product Highlights

This backflow preventer is built with quarter-turn ball valves for reliable shutoff and incorporates a modular relief valve for easy upkeep. It is compliant with AWWA, ASSE, and CSA standards and is approved by the Foundation for Cross-Connection Control and Hydraulic Research.

Product Information

Standard Information

• Brand: FEBCO
• Model: LF825Y-QT1

Technical Specifications

• Size: 1 Inch
• Body Material: Lead Free Bronze
• Inlet Connection Size: 1 Inch
• Outlet Connection Size: 1 Inch
• Maximum Working Pressure: 175 PSI
• Hazard Protection Level: Health Hazard
• Temperature Range: 32 to 140 Fahrenheit
• Body Pattern: Y-Pattern
