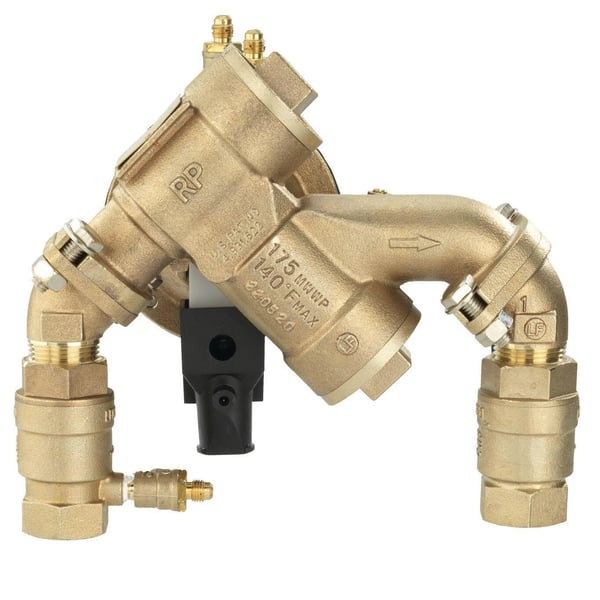

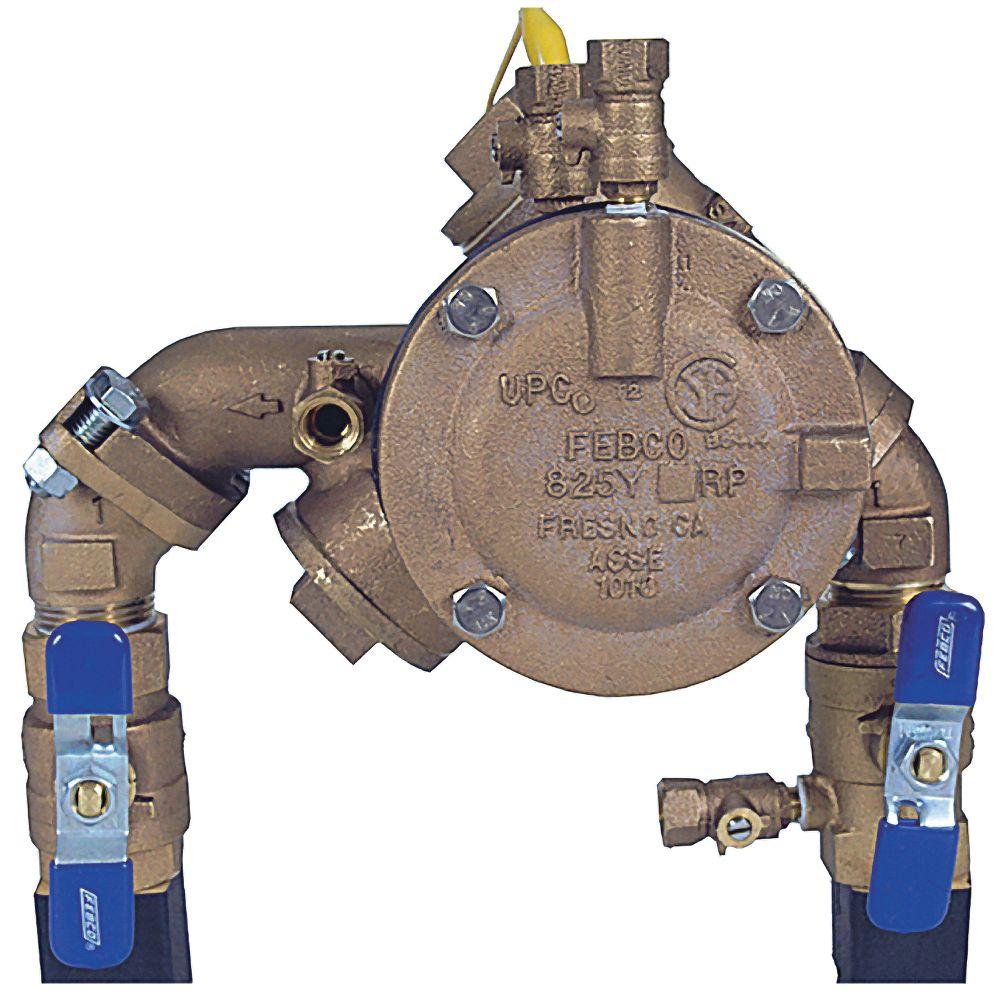

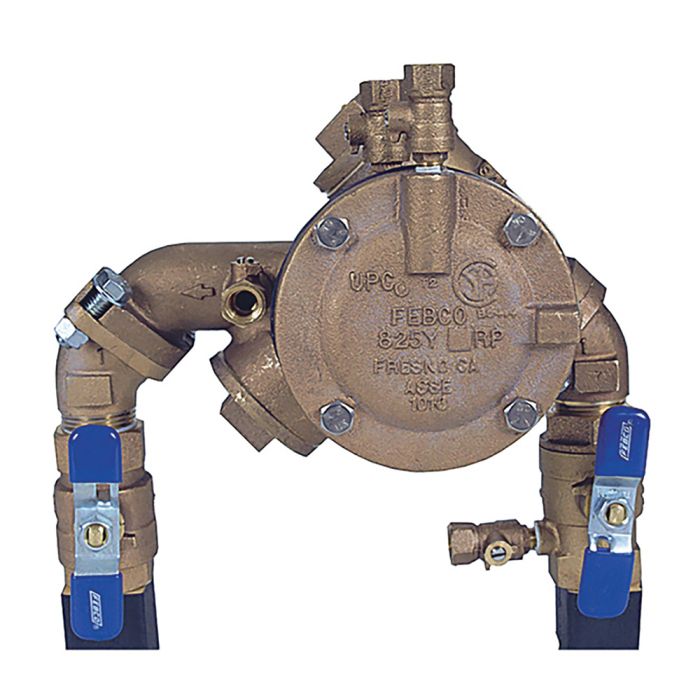

Febco F825eya 825ya n-pattern backflow preventer with flood sensor, 1 in nominal

Product Description

The FEBCO F825EYA 1 inch N pattern bronze reduced pressure zone assembly backflow preventer prevents the reverse flow of high hazard fluids from entering the potable water supply. Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.

• Modular relief valve and check valves for easy maintenance
• Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Installation versatility simplifies new and retrofit installations.

Product Highlights

This backflow preventer is used in industrial plants, hospitals, irrigation systems, and other installations requiring maximum protection. Compact design simplifies new and retrofit installations.

Product Information

Standard Information

• Brand: FEBCO
• Manufacturer Part Number: F825EYA

Technical Specifications

• Backflow Type: Reduced Pressure Zone
• Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
• Body Material: Bronze
• Domestic/Import: Import
• End Style: NPT
• Finish: Rough Bronze
• Media: Water
• Nominal Size: 1 in
• Pressure Rating: 175 psi
• Series: 825YA
• Temperature Rating: 32 to 140 deg F
• Type: N-Pattern
• Manufacturer (Brand): Febco
• Manufacturer Item Number: F825EYA
• UPC: 643925581577
• UOM: Eaches
• Material: Bronze
• Reduced Pressure: Reduced Pressure
• Valve Mechanism: Ball
• Feature: Genuine OEM
• Valve Size: 1 Inch
• Model Number: 825
• Test Cocks: 4 FEMALE
• Max Working Pressure: 175 PSI
• Hydrostatic Test Pressure: 350 PSI
• Temperature Range: 32F to 140F
• Main Valve Body Materials: Bronze
• Relief Valve Body: Bronze
• Elastomers: Nitrile Seat Discs
• Diaphragms: Nitrile, Fabric reinforced
• Springs: Stainless Steel
• Size: 1 in.
• Connection: FPT
• Lead Free: Not Lead Free
