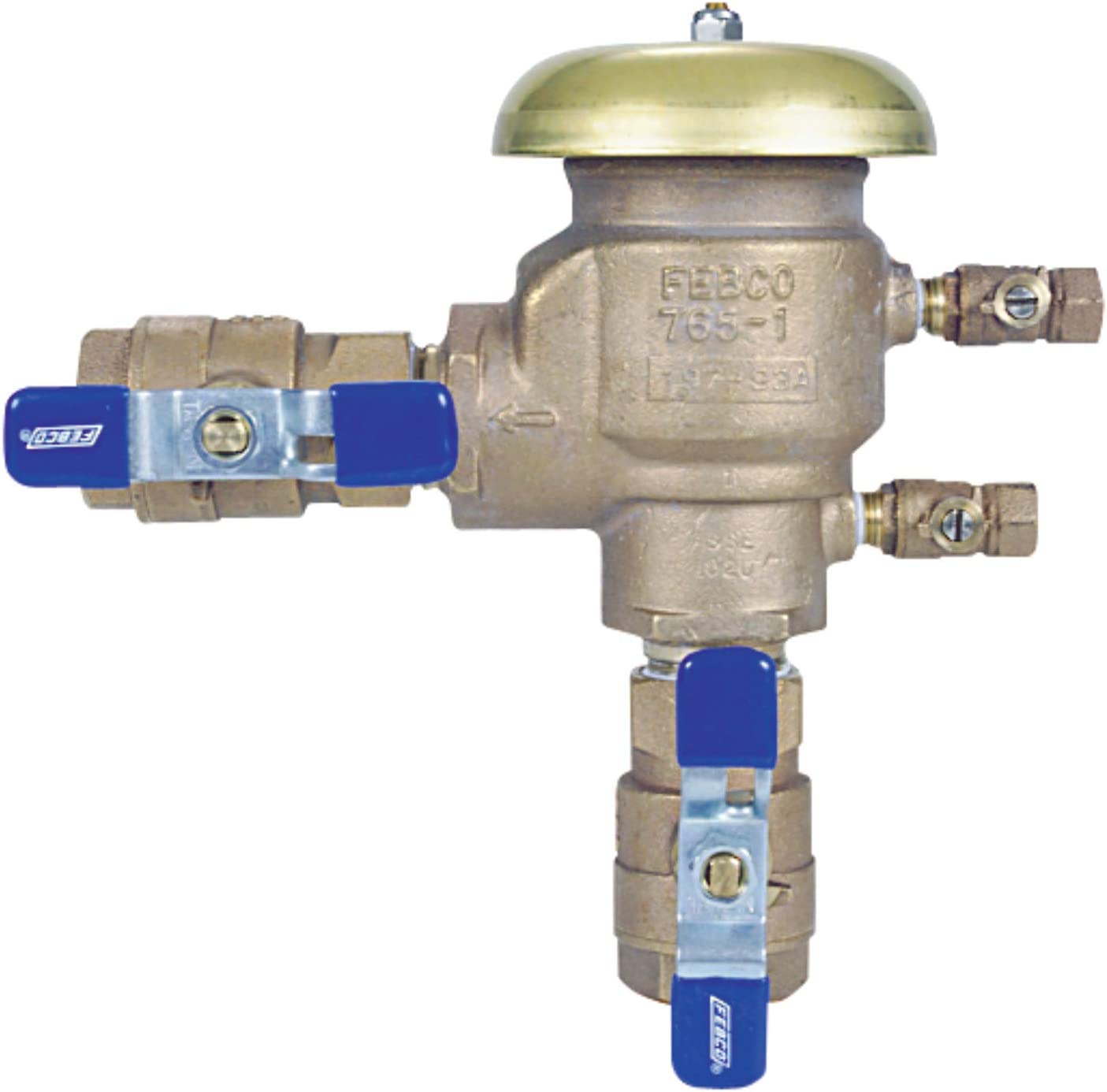

Febco 765EBV 1 765 Pressure Vacuum Breaker

Product Description

The Febco 765EBV is a 1 inch pressure vacuum breaker designed to protect against back siphonage of toxic and non-toxic liquids. It is suitable for many applications, including industrial plants, cooling towers, swimming pools, and lawn sprinkler systems. This unit features a durable bronze body with a check valve and air opening port integrated into one assembly.

• Durable bronze construction for longevity.
• Easy service procedures, with all internal parts accessible from the top.
• Engineered to minimize head loss.

Product Highlights

Specifically designed for effective backflow prevention while ensuring ease of maintenance and efficient operation.

Product Information

Standard Information

• Brand: Febco
• Model Number: 765EBV

Technical Specifications

• Maximum Working Pressure: 150 PSI
• Material: Bronze
• Connection Type: Female Threaded
• Temperature Range: Thirty-two to one hundred forty degrees Fahrenheit
• Overall Dimensions: Ten point four-three by ten point zero four by six point eight-nine inches
• Weight: Six point two-four pounds
• Hydrostatic Test Pressure: Three hundred PSI
• End Connections: NPT ANSI/ASME B1.20
