Product Description

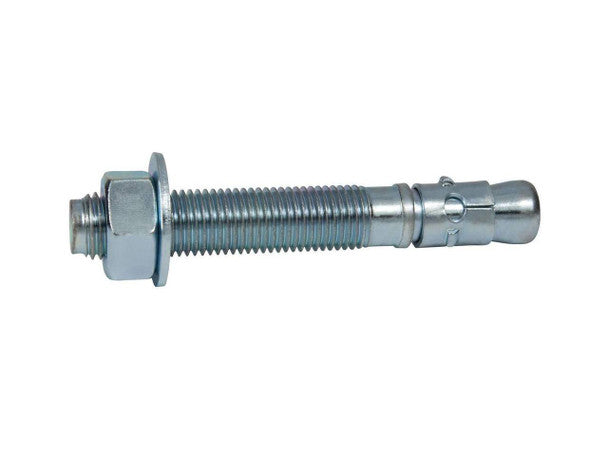

The Fasteners WEDGE-ANCR-3/8X23/4 is a wedge anchor that measures three-eighths by two and three-fourths inches. It is designed for secure use in concrete. Made from carbon steel, it features a zinc plated finish to prevent rust in dry settings. This anchor set includes nuts and a washer, ensuring you have everything needed for installation. The hole size required matches the anchor size for easy fitting.
- Anchor diameter: 3/8 inch
- Anchor length: 2-3/4 inches
- Material: Carbon steel with zinc plating
Product Highlights
The WEDGE-ANCR-3/8X23/4 anchor is suitable for concrete only and provides strong holding power, making it ideal for construction and renovation projects.
Product Information
Standard Information
-
Product Name: Fasteners WEDGE-ANCR-3/8X23/4
-
Brand: Fasteners
Technical Specifications
-
Bit Size: 3/8
-
Box Quantity: 50
-
Minimum Embedment: 1-1/2 inches
-
Wrench Size For Nut: 9/16 inches
-
Application: Concrete only
-
Thread Type: 3/8 - 16
-
Minimum Edge Distance: 1-7/8 inches
-
Maximum Fixture Thickness: 7/8 inches
-
Minimum Fixture Hole Diameter (In Place): 1/2 inches
-
Minimum Fixture Hole Diameter (Hole Spotted): 3/8 inches
-
Length ID Code: C
-
Thread Length: 1-1/2 inches
-
Pull-Out Strength (2000 PSI Concrete): 1223 lbs.
-
Shear Strength (2000 PSI Concrete): 3238 lbs.
-
Length Measurement: End to End
-
Diameter: 3/8 inches
-
Length: 2-3/4 inches
-
Material: Carbon Steel Zinc Plated
-
Environment: Dry
-
Type: Male
-
Minimum Spacing: 3-3/4 inches
-
Maximum Torque: 25 - 30 ft./lbs.
