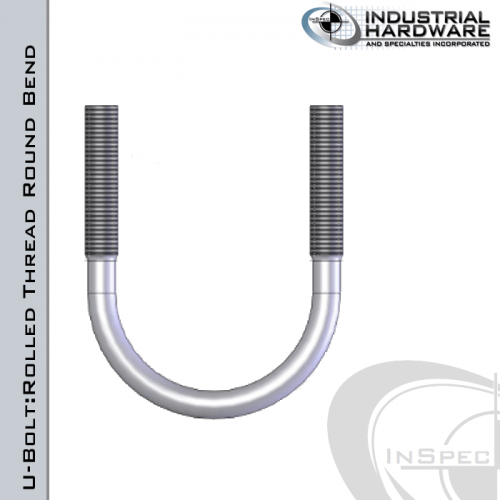

FASTENERS U-BLT-3/8-16X2-SS304

Product Description

The FASTENERS U-Bolt with MPN U-BLT-3/8-16X2-SS304 is designed for securing two and a half trade size pipes or conduits. It accommodates an outside diameter of two point eight seven five inches. This U-bolt has a diameter thread pitch of three eighths by sixteen and is made from type 304 stainless steel, known for its durability and corrosion resistance.

• Accommodates two and a half trade size pipe.
• Constructed from type 304 stainless steel.
• Rolled threads enhance tensile and shear strength.

Product Highlights

This U-bolt is ideal for applications where strength and resistance to fatigue are important. The rolled threads allow for greater durability compared to traditional cut threads.

Product Information

Standard Information

• Material: Stainless Steel Type 304
• Pipe Size: Two and a half inches

Technical Specifications

• MPN: U-BLT-3/8-16X2-SS304
• Diameter Thread Pitch: Three eighths by sixteen
• Inside Length: Six and five eighths inches
• Thread Length: Two inches
• Wire Pitch Diameter: Zero point three three zero inches
• Distance Between Legs: Three inches
• Centerline Distance: Three and three eighths inches
• Leg Length: Three and three quarter inches
• Tangent Length: Five and one eighth inches
• Outside Diameter: Two point eight seven five inches
• Weight: Zero point four pounds
