FASTENERS U-BLT-2-SS304

Product Description

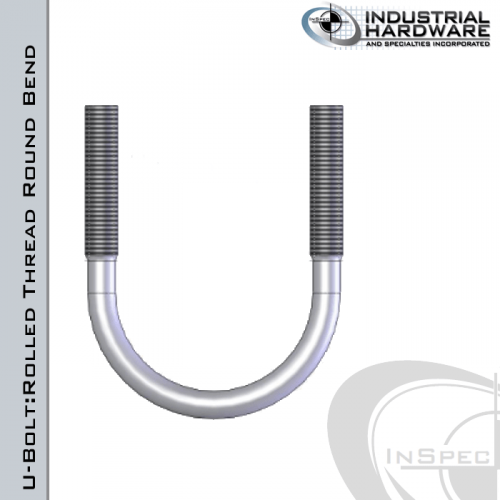

The FASTENERS U-BLT-2-SS304 is a U-bolt made to secure 2 trade size pipes or conduits with an outer diameter of two point three seven five inches. This U-bolt is constructed from type 304 stainless steel, known for its durability and resistance to corrosion. The round bend design and rolled threads make it suitable for various installations.

• Designed for pipes with an outer diameter of two point three seven five inches
• Made from type 304 stainless steel
• Features a thread pitch of three eighths by sixteen

Product Highlights

This U-bolt is ideal for plumbing and mechanical projects. It provides reliable support for pipes in various settings.

Product Information

Standard Information

• Brand: FASTENERS
• MPN: U-BLT-2-SS304

Technical Specifications

• Material Finish: Stainless Steel Type 304
• Pipe Size: 2
• Diameter Thread Pitch: 3/8-16
• Inside Length: 4-1/2 inches
• Thread Length: 2-1/2 inches
• Wire Pitch Diameter: 0.330 inches
• Distance Between Legs: 2.438 inches
• Centerline Distance: 2-13/16 inches
• Leg Length: 2.125 inches
• Tangent Length: 3.281 inches
• Outside Diameter: 2.375 inches
• Weight: 0.273 lbs
