FASTENERS STEEL-DROP-IN-ANCR-1/2

Product Description

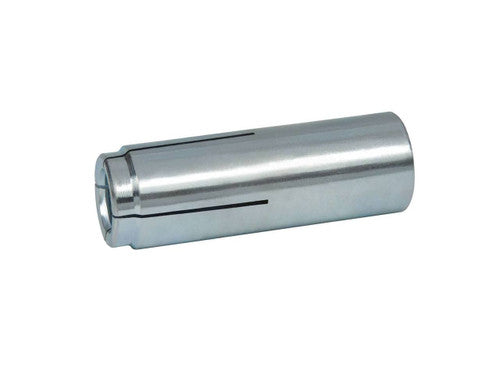

The FASTENERS STEEL-DROP-IN-ANCR-1/2 is a drop-in anchor designed specifically for use in concrete. This anchor is made of carbon steel and features a zinc plated finish, suitable for indoor environments. It requires a setting tool for installation.

• Designed for solid concrete applications.
• Suitable for dry, indoor conditions.
• Requires a separate setting tool for proper installation.

Product Highlights

Product Information

Standard Information

• Brand: FASTENERS
• MPN: STEEL-DROP-IN-ANCR-1/2

Technical Specifications

• Bit Size: 5/8
• Minimum Embedment: 2 inches
• Thread Type: 1/2 - 13
• Pull-Out Strength: 2328 lbs (2000 PSI Concrete)
• Type: Female
• Application: Concrete only
• Diameter: 1/2 inches
• Length: 2 inches
• Material: Carbon Steel Zinc Plated
• Environment: Dry
• Box Quantity: 50
• Minimum Edge Distance: 3-1/8 inches
• Minimum Fixture Hole Diameter: 1/2 inches
• Inside Anchor Diameter: 1/2 inches
• Outside Anchor Diameter: 5/8 inches
• Internal Thread Length: 13/16 inches
• Length Measurement: End to End
• Bolt Length: Fixture Thickness + Embedment Depth
