FASTENERS HH-CAP-SCR-1/2-13X1-G-5

Product Description

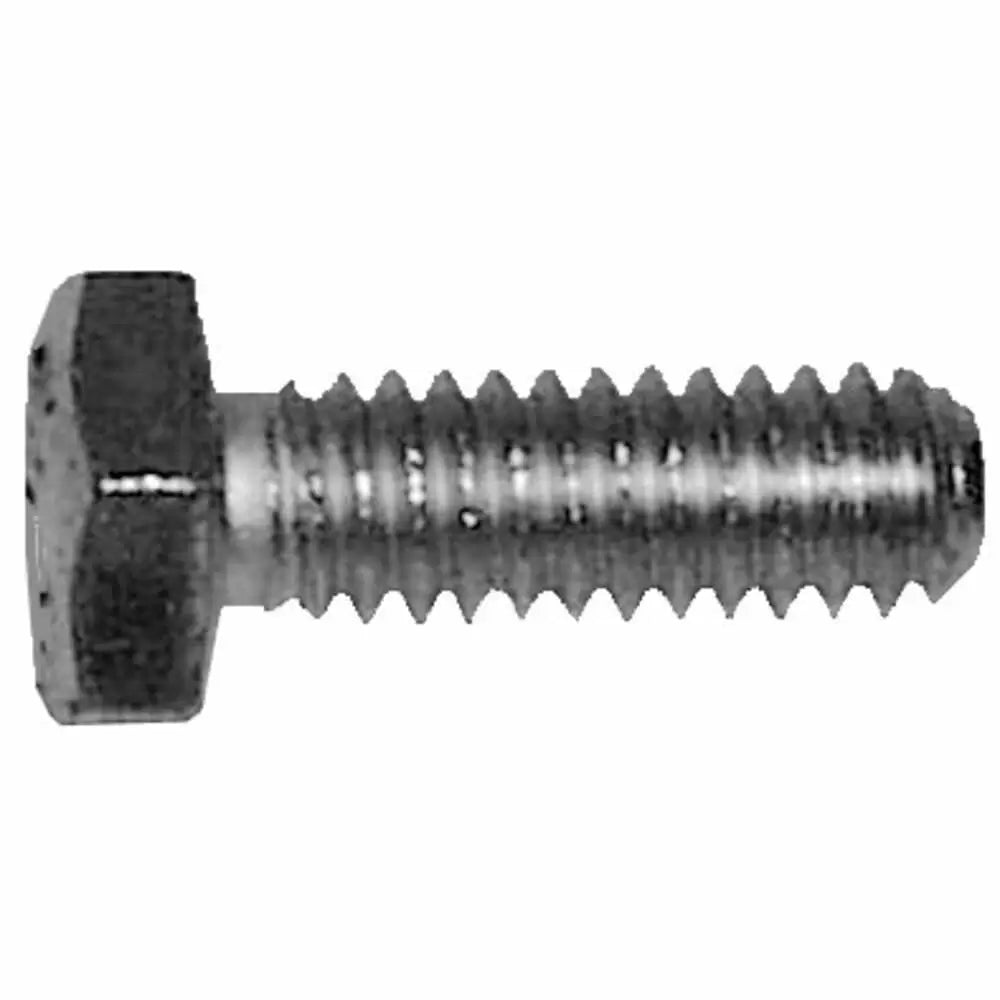

The FASTENERS HH-CAP-SCR-1/2-13X1-G-5 is a hex head cap screw designed to fit easily into a tapped hole. This product meets SAE specifications and includes a washer face beneath the head along with a chamfered point for better engagement. The screw is made from steel and features a zinc finish, which helps resist corrosion in normal atmospheric conditions. It is categorized as grade 5, which is commonly used in manufacturing assembly.

• Designed for easy assembly into a tapped hole.
• Meets SAE specifications and includes a washer face under the head.
• Zinc plating helps reduce corrosion.

Product Highlights

This screw is essential for various applications where reliable fastening is required. Its coarse thread type and full thread style support strong connections in different materials.

Product Information

Standard Information

• Material: Steel
• Type: Hex Cap Screw

Technical Specifications

• Dia/Thread Size: 1/2-13
• Length: 1 inch
• Grade: SAE Grade 5
• Finish: Zinc
• System of Measurement: Imperial (Inch)
• Thread Type: Coarse
• Thread Style: Full Thread
• Standards: ASME B18.2.1, SAE J429, ASTM F1941/F1941M
• Wrench Size: 3/4 inch
• Tensile Strength: 120,000 psi
• Head Height: 0.302 - 0.323 inch
• Head Width: 0.736 - 0.750 inch
