FASTENERS DROP-IN-ANCR-1/4X1SS316

Product Description

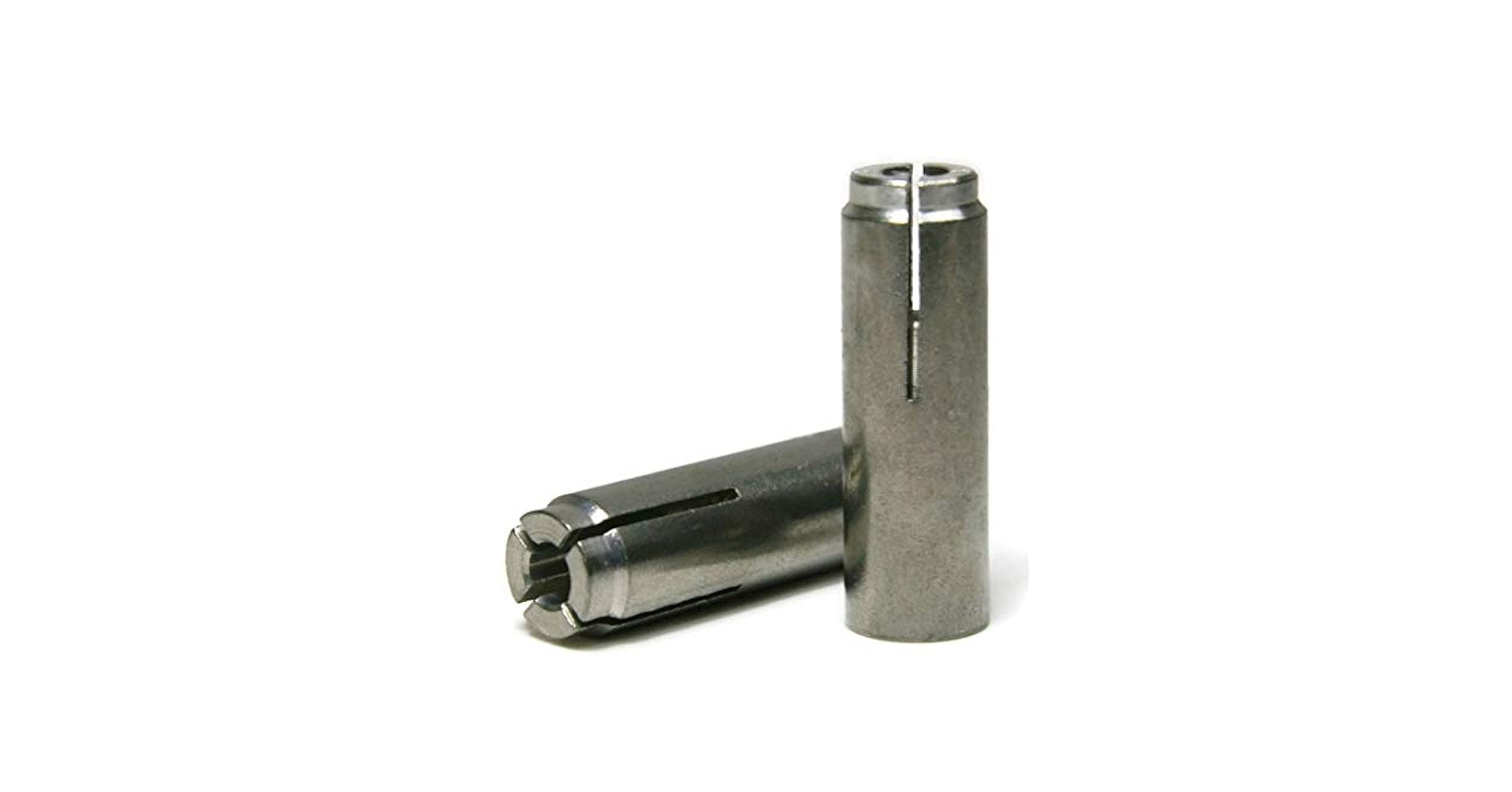

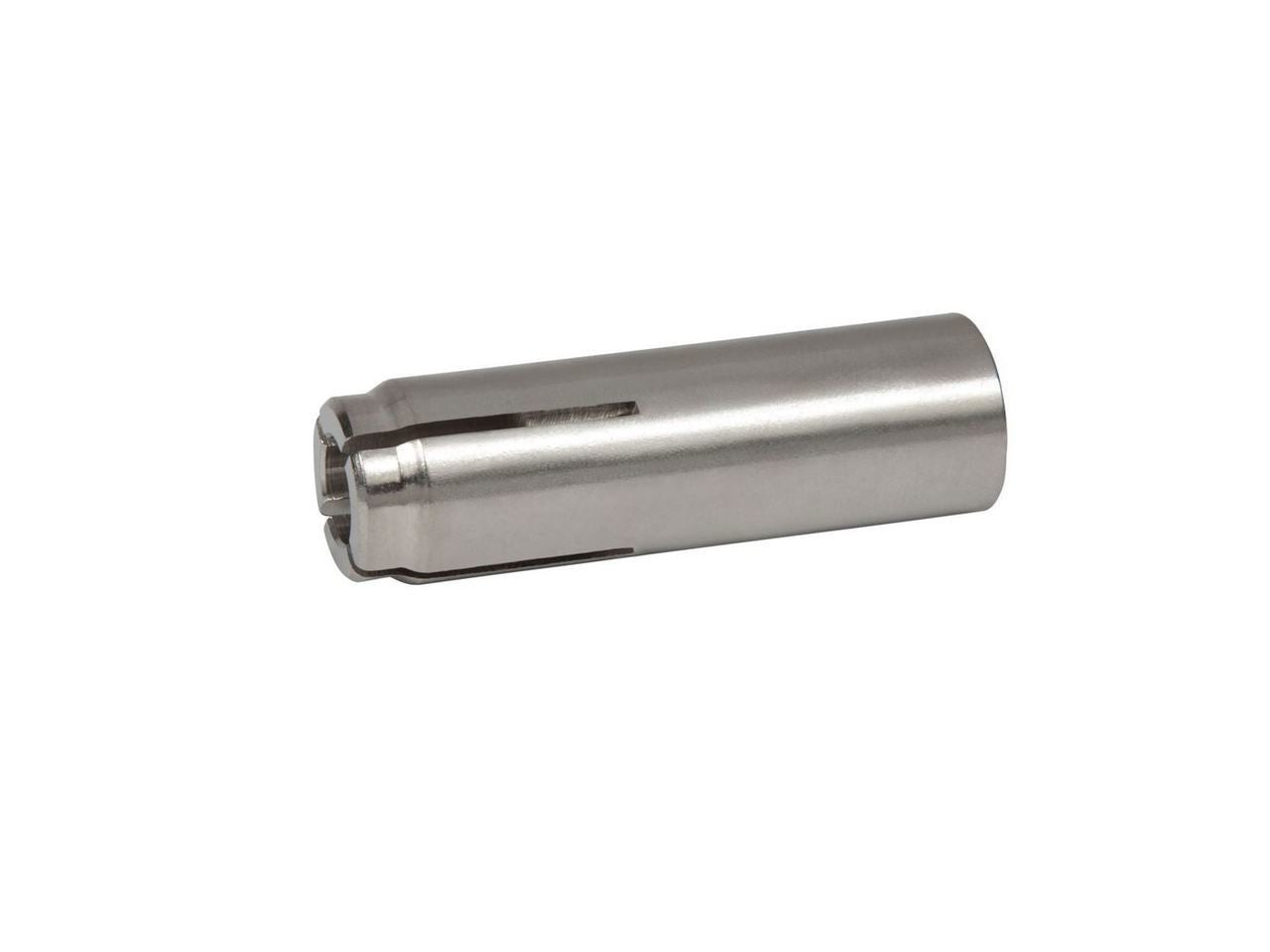

The FASTENERS DROP-IN-ANCR-1/4X1SS316 is a drop-in anchor made from 316 stainless steel, designed for robust performance in concrete. It features a smooth wall design, which enhances holding capabilities while providing an aesthetic finish. These anchors come with internal national coarse threads, simplifying the process of selecting compatible rods or bolts. They are particularly suited for flush mounting applications, ensuring a clean installation without any protruding parts.

• Smooth wall design promotes consistent holding performance.
• Internal threads facilitate easy selection of hardware.
• Flush mounting capability for a neat surface finish.

Product Highlights

This anchor is ideal for use in solid concrete and is an excellent choice for various construction and installation tasks.

Product Information

Standard Information

• Brand: Fasteners
• Type: Female

Technical Specifications

• Bit Size: 3/8
• Box Quantity: 100
• Minimum Embedment: 1 inch
• Primary Material: Concrete only
• Thread Type: 1/4 - 20
• Minimum Edge Distance: 1-7/8 inches
• Minimum Fixture Hole Diameter (In Place): 7/16 inches
• Minimum Fixture Hole Diameter (Hole Spotted): 1/4 inches
• Inside Anchor Diameter-Bolt Diameter: 1/4 inches
• Outside Anchor Diameter: 3/8 inches
• Internal Thread Length: 7/16 inches
• Minimum Spacing: 3-3/4 inches
• Maximum Torque: 5 ft./lbs.
• Length Measurement: End to End
• Length: 1 inch
• Material: 316 Stainless Steel
• Environment: Submerged/Chemicals
