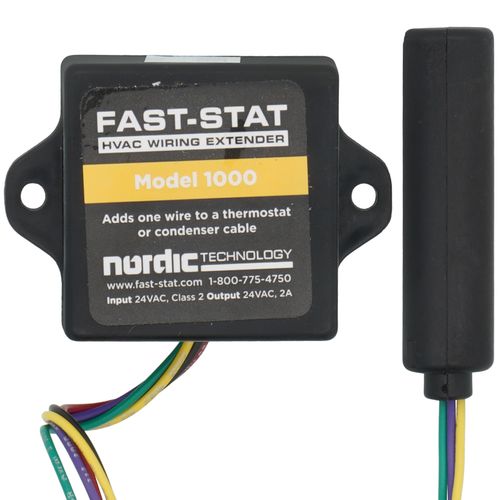

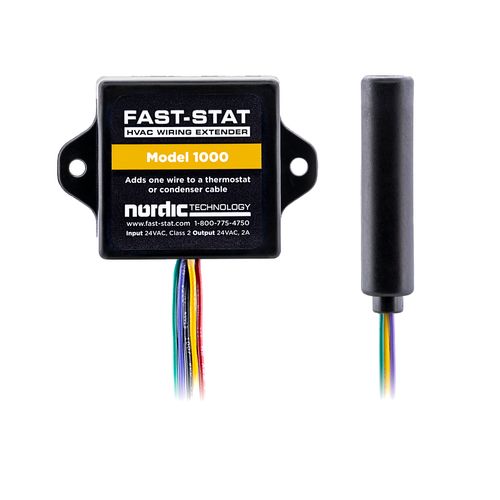

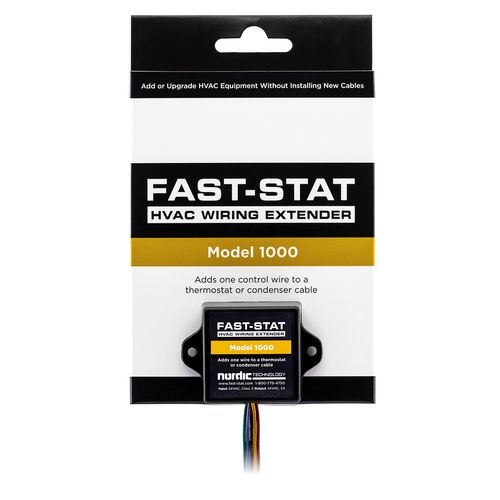

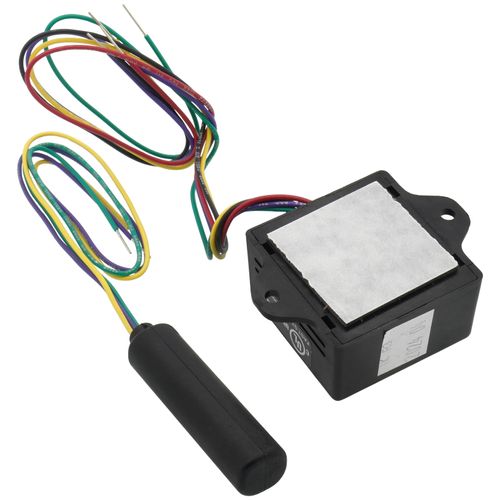

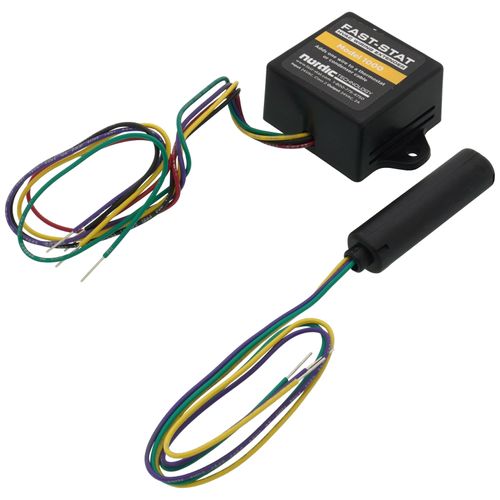

Fast-Stat 1000 hvac Wiring Extender

Product Description

The Fast-Stat 1000 provides an additional control wire to any system. It provides an additional control wire between a thermostat and indoor unit, or indoor unit and outdoor unit. Compatible with all 24VAC heating and cooling systems. It can provide a common connection 'C' using a thermostat cable with 3 or more wires.

• Adds one wire to any system
• Can be used for thermostats that need a common connection, adding fan or humidity control and many other uses
• Used to install a 2-stage A/C when there is only a 2-wire condenser cable but 4-wires are needed

Product Highlights

The Fast-Stat 1000 is for adding a common with only 2 wires. It can be used for thermostats that need a common connection, adding fan or humidity control and many other uses.

Product Information

Standard Information

• Brand: Fast-Stat
• Manufacturer Part Number: 1000
• Country of Origin: CANADA

Technical Specifications

• Description: Two Functions Over 1-Wire
• Harmonize Code: 9032.90.6120
