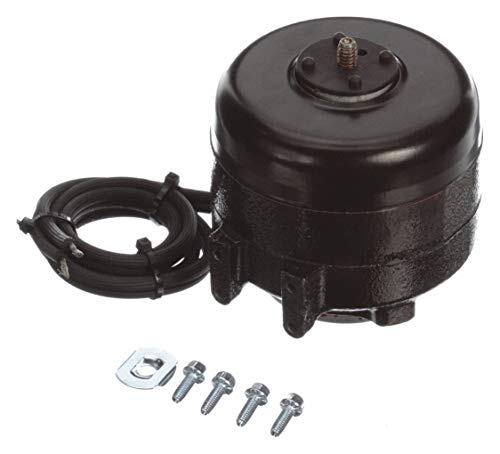

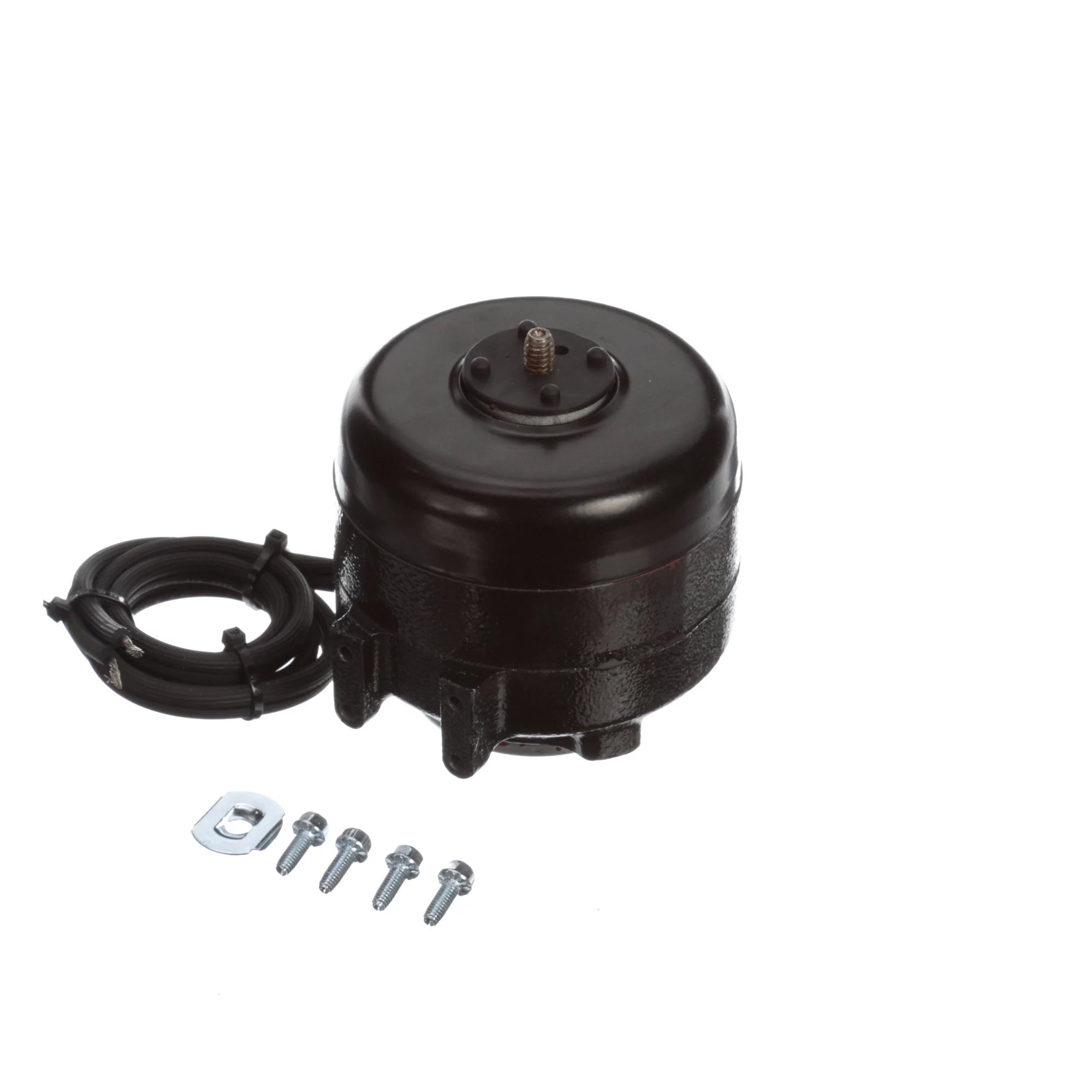

Fasco UB569 Refrigeration Fan Motor 230 Volts 1550 RPM

Product Description

The FASCO UB569 is a 230V, 1550 RPM unit bearing refrigeration fan motor. It is designed to power fans in evaporators and condensers. This shaded pole motor has a low starting torque, providing a smooth and quiet startup. It is thermally protected and features a totally enclosed air over (TEAO) enclosure.

• Unit bearing motor with shaded pole design
• Thermally protected
• Totally Enclosed Air Over (TEAO) enclosure

Product Highlights

The FASCO UB569 is suitable for refrigeration and HVAC/R applications.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: UB569
• Country of Origin: USA

Technical Specifications

• Amps: 0.4
• Bearing Type: Unit
• Brand: Fasco
• CSA Certified: No
• CSA Listing: Yes
• Cycle/Hertz: 60 Hz
• Duty: Continuous (S1)
• Full Load Amps: 0.4
• Height: 4
• Insulation Class: B
• Lead Length: 22"
• Length: 4.25
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor Type: Shaded Pole
• Number of Speeds: 1 (Single)
• Phase: Single
• Protection: Thermally Protection
• Rotation: Counter Clockwise (CCW)
• RPM: 1550
• Shaft Diameter: 0.25" (1/4\")
• Shaft Length: 0.375"
• UL Listed: No
• UL Recognized: Yes
• Voltage: 230 VAC
• Watts: 16
• Width: 4.25
• Motor Application: HVAC/R
• Motor Sub Application: Refrigerator/Freezer
• Motor Design: Shaded Pole
• Motor Enclosure Design: Totally Enclosed Air-Over
• HP [Specifications]: 1/50
• Hz [Specifications]: 60
• Item [Specifications]: Unit Bearing Motor
• Frame [Specifications]: Non-Standard
• Phase [Specifications]: Single
• Voltage [Specifications]: 230V AC
• Features [Specifications]: Totally Enclosed Air Over
• Includes [Specifications]: Speed Nut and Screw
• Body Dia. [Specifications]: 3 7/16 in
• RPM Range [Specifications]: 1,401-1,500
• Standards [Specifications]: UL and CSA
• Duty Cycle [Specifications]: Continuous
• Ins. Class [Specifications]: B
• Shaft Dia. [Specifications]: 1/4 in
• Lead Length [Specifications]: 28 in
• Output Watts [Specifications]: 16 W
• Shaft Length [Specifications]: 7/16 in
• Nameplate RPM [Specifications]: 1,550
• No. of Speeds [Specifications]: 1
• Stud Quantity [Specifications]: 2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
• Frame Material [Specifications]: Cast Iron
• Motor Bearings [Specifications]: Unit
• Overall Length [Specifications]: 3 5/8 in
• Bolt Circle Dia. [Specifications]: 2 13/16 in
• Length Less Shaft [Specifications]: 3 1/16 in
• Max. Ambient Temp. [Specifications]: 40 Degrees C
• Motor Shaft Design [Specifications]: Threaded
• Motor Mounting Type [Specifications]: Rear/Double Foot
• Motor Frame Material [Specifications]: Cast Iron
• Motor Service Factor [Specifications]: 1
• Motor Shaft Rotation [Specifications]: CCWLE
• Mounting Stud Length [Specifications]: 3/8 in
• Mounting Stud Pattern [Specifications]: 1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
• Motor Mounting Position [Specifications]: All Angle
• Motor Thermal Protection [Specifications]: Auto
