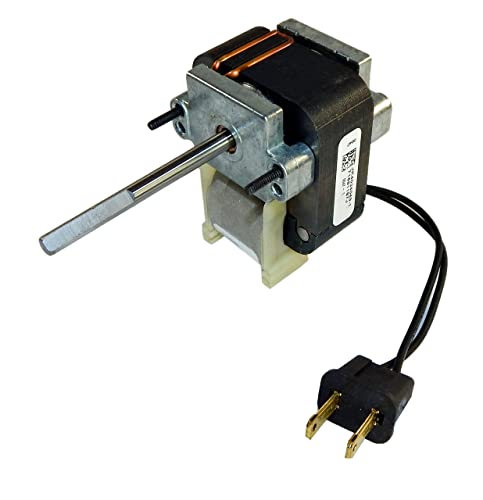

Fasco K612 C-Frame Motor Open K Line Shaded Pole OEM Replacement 1/65 HP 3000 RPM 115 VAC 60 Hz 0.73 Amps

Product Description

The Fasco K612 OEM Replacement Motor is a reliable and essential component for various applications. This shaded pole motor operates at 115 VAC, with a power input of 1/65 HP and 3000 RPM speed. Ideal for use in vent fans, gas furnace draft inducers, microwave ovens, humidifiers, aquarium pumps, copy machines, and vending machines.

• Thermally protected for added safety
• Clockwise shaft end rotation
• Sleeve bearings for smooth operation

Product Highlights

The Fasco K612 is built with an open-air over design and includes Class B insulation. It is a single-phase motor with a 0.25-inch diameter shaft and 2.7-inch shaft extension. Applications range from HVAC systems to consumer appliances.

Product Information

Standard Information

• Brand: Fasco
• MPN: K612
• UPC: 818508021690
• Country of Origin: Mexico

Technical Specifications

• Electical Type: Shaded Pole
• Horsepower: 1/65
• Voltage: 115 VAC
• Amperage: 0.73
• Speed: 3000 RPM
• Shaft Diameter: 0.25 inches
• Shaft Extension: 2.7 inches
• Insulation Class: B
• Enclosure: Open
• Rotation: Clockwise
• Bearing Type: Sleeve
• Mounting Type: Extended Studs
• Frequency: 60 Hz
