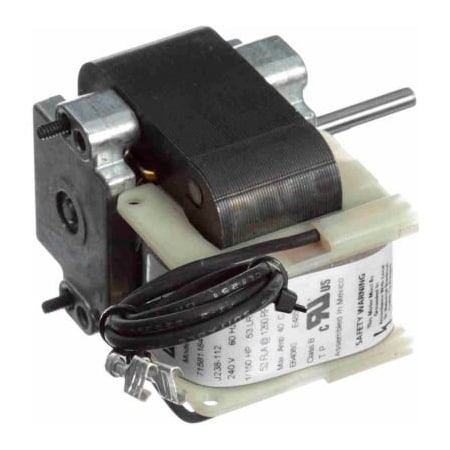

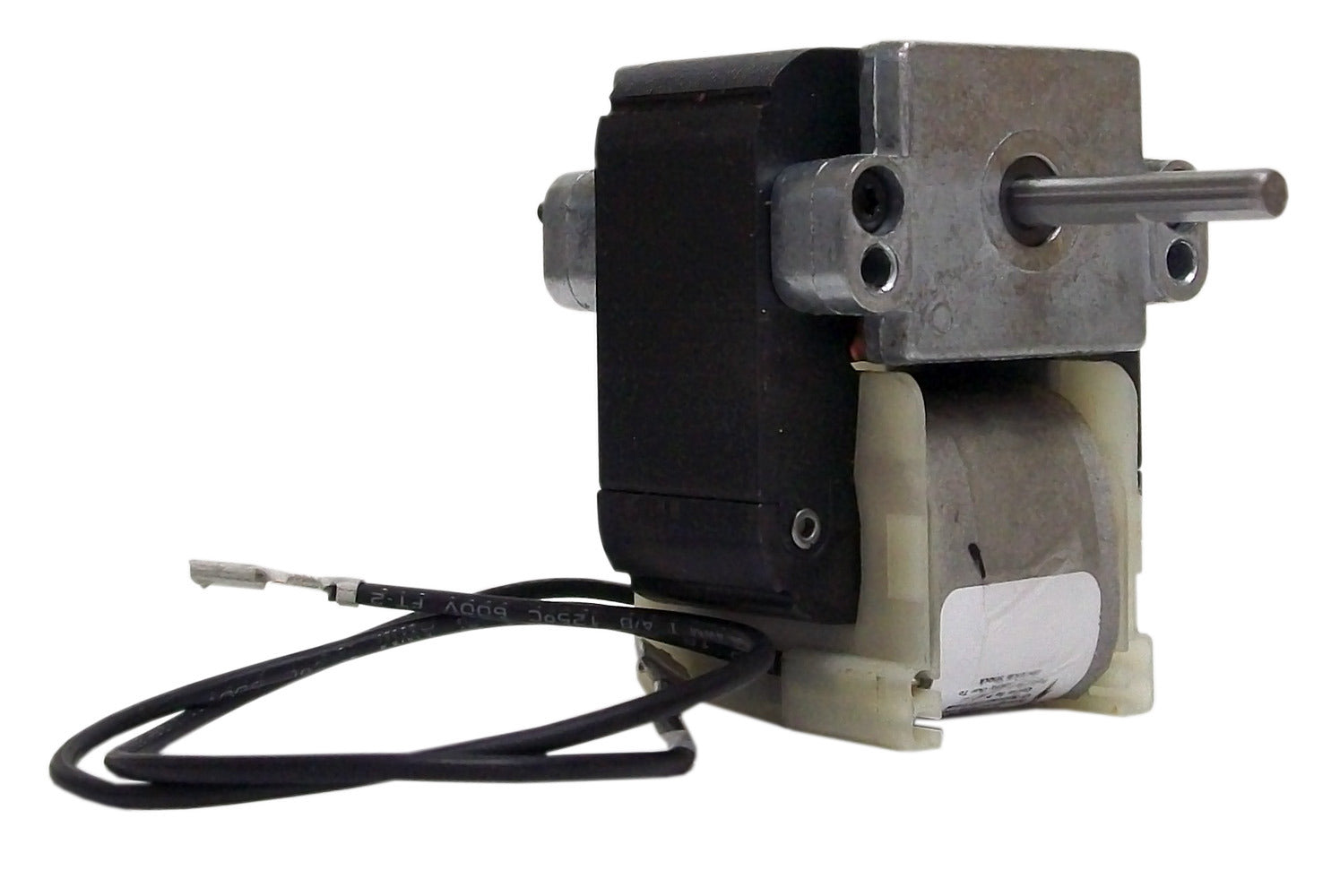

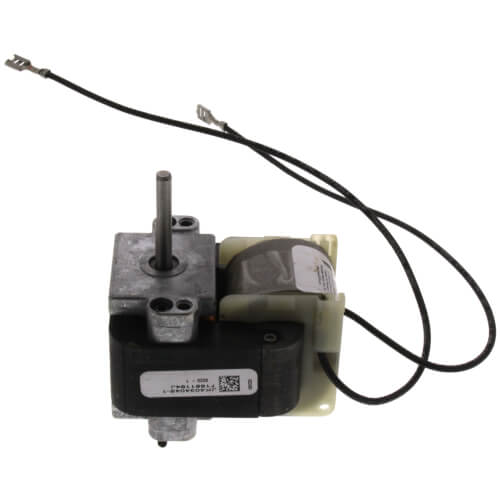

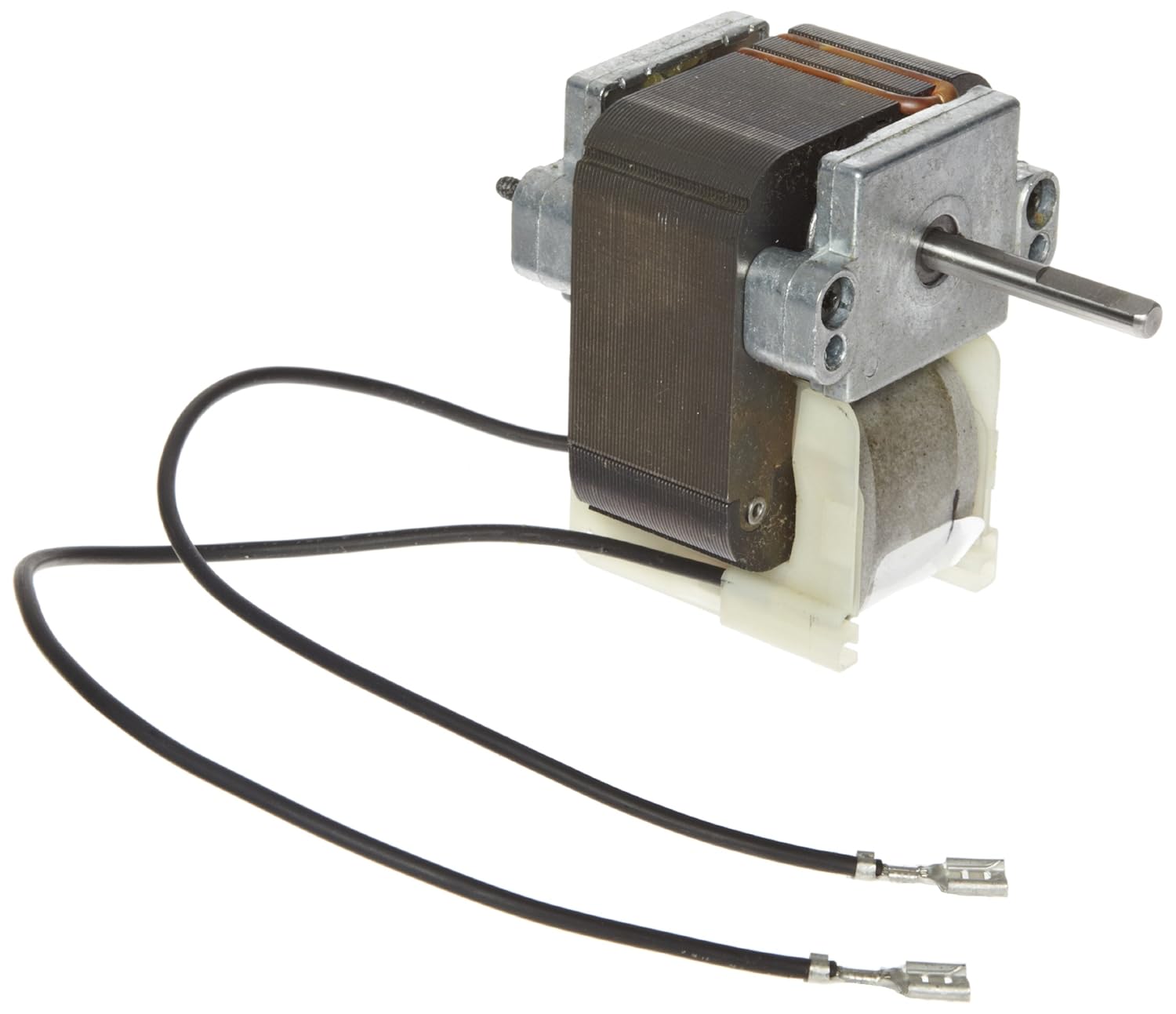

Fasco K101 C Frame Open K Line Shaded Pole OEM Replacement Electric Motor with Sleeve Bearing 1260 RPM 230 VAC 60 Hz

Product Description

The Fasco K101 electric motor is designed for OEM replacement in various appliances. This motor operates at 1/150 HP and runs at 1260 RPM with 230 VAC power. It features a sleeve bearing and is suitable for use in wall heaters and other applications.

• 1/150 HP motor
• 1260 RPM speed
• 230 VAC, 60 Hz

Product Highlights

The Fasco K101 motor is perfect for replacement in wall heaters and ensures reliable performance with shaded pole design and thermal protection. The C-Frame structure enhances durability.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Model: K101

Technical Specifications

• Electrical Type: Shaded Pole
• Horse Power: 1/150 HP
• Rotation: Counterclockwise Shaft End
• Voltage: 230 VAC
• Current: 0.52 Amps
• Motor RPM: 1260 RPM
• Phase: Single
• Frequency: 60 Hz
• Bearings: Sleeve
• Enclosure: Open Air Over
• Mounting: Extended Studs
• Shaft Type: Flat
• Shaft Diameter: 0.218 inches
• Shaft Extension: 1.34 inches
• Ambient Temperature: 40°C
• Insulation Class: B
• Poles: 4
• Service Factor: 1.0
