Product Description

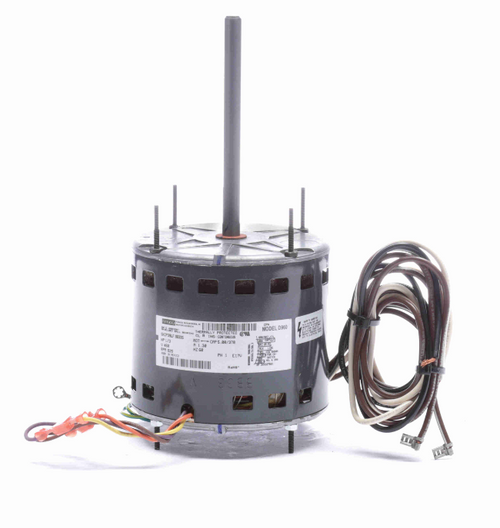

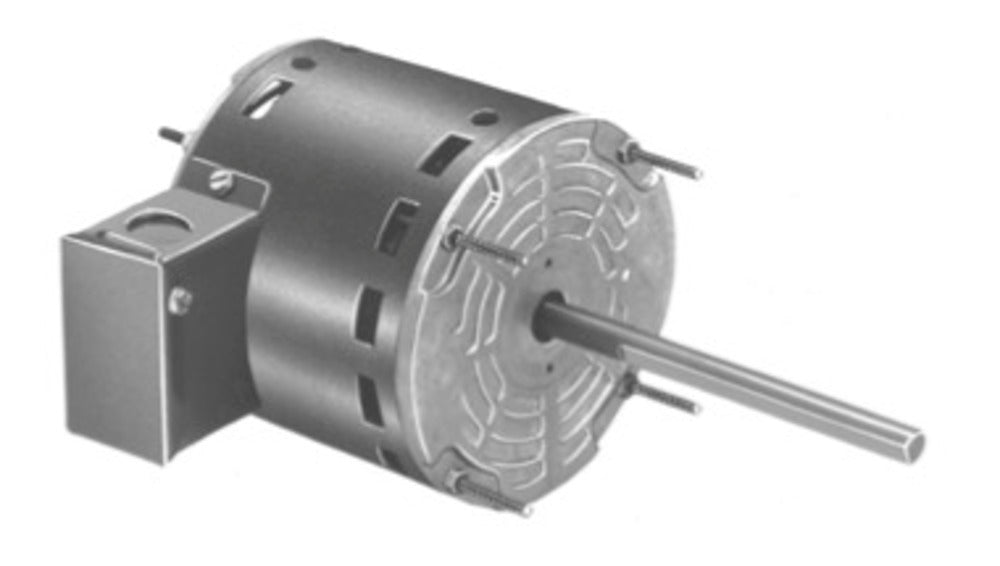

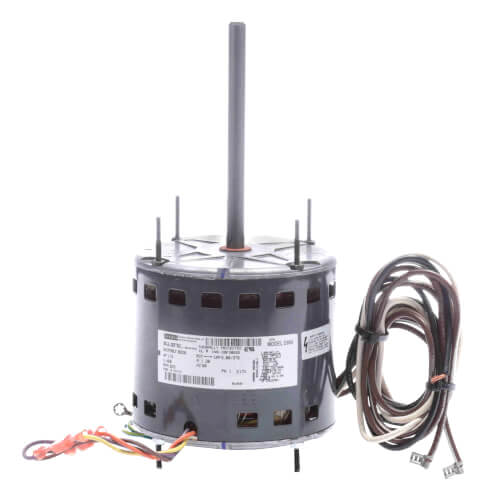

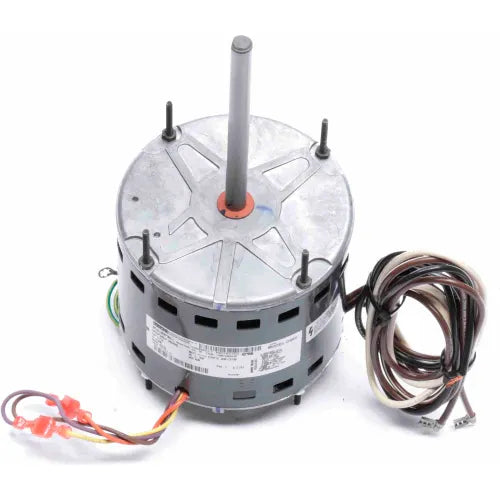

The FASCO D960 is a 5.6" frame open ventilated permanent split capacitor condenser fan motor with ball bearings. This motor operates at 460V, 60Hz, and 1.3 amps, delivering 1/3HP at 825rpm. It features extended studs for mounting and is thermally protected.
- Open Ventilated design
- Ball bearing construction
- Thermally Protected
Product Highlights
This condenser fan motor is designed for air conditioning applications, offering reversible rotation and reliable performance.
Product Information
Standard Information
-
Brand: FASCO
-
Manufacturer Part Number: D960
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Fasco
-
MPN: D960
-
Voltage: 460V
-
Frequency: 60Hz
-
Amperage: 1.3 amps
-
Speed: 825 RPM
-
Horsepower: 1/3 hp
-
Model Name: D960
-
Electrical Type: Permanent Split Capacitor
-
Frame: 48Z
-
Diameter: 5.6"
-
Enclosure: Open Air Over
-
Phase: Single Phase
-
Rotation: Reversible
-
Overload: Thermally Protected
-
Material: Rolled Steel
-
Mounting: Extended Studs
-
KW: 0.25
-
Shaft Diameter: 0.500 in
-
Bearings DE Type: Ball
-
Bearings ODE Type: Ball
-
Shaft Extension: 6.000"
-
Insulation Class: B
-
Ambient Temperature: 60 °C
-
Poles: 8.0
-
Service Factor: 1.0
-
Number of Speeds: 1.0
-
Frame Length: 4.32 in
-
C Dimension: 11.06 in
-
Thermal Protection: Automatic
-
Enclosure Type: Open Ventilated Air Over
-
Frame Size: 5.6" Frame
-
Motor Diameter (In.): 5.6
-
Shaft (In.): 1/2 x 6
-
Agency Approvals: UL, CSA
-
Reversibility: Reversible
-
Duty: Continuous
-
Rated RPM: 825
-
Motor Type: Condenser Fans Motor
-
Bearing Type: Ball
-
Full Load Amps: 1.30 FLA
-
Shaft Type: Double Flat
-
Output HP: 1/3 Hp
-
Output KW: 0.25 kW
-
Current: 1.30 A
-
UL: Recognized
-
CSA: Y
-
CE: N
-
Motor Orientation: Any
-
Drive End Bearing: Ball
-
Opp Drive End Bearing: Ball
-
Frame Material: Rolled Steel
-
Overall Length: 11.06 in
-
Country of Origin (subject to change): United States
