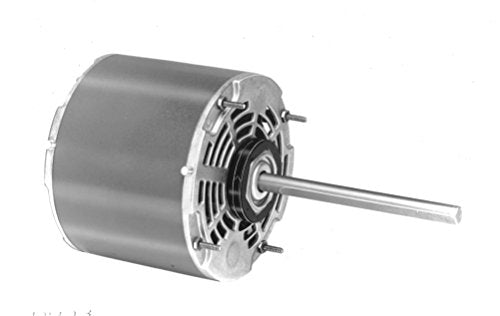

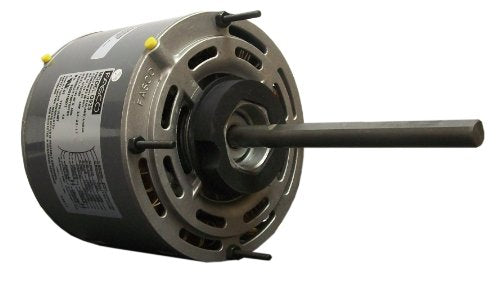

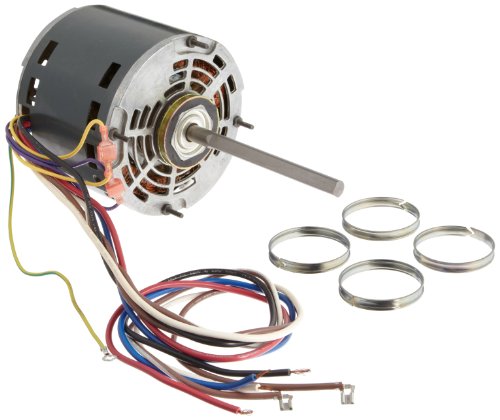

Fasco D723 5.6 Inches Frame Open Ventilated Permanent Split Capacitor Direct Drive Blower Motor 1/3-1/4-1/6HP

Product Description

The Fasco D723 is a blower motor designed for efficient operation in various applications. This model features a five point six inches frame and operates with a permanent split capacitor and direct drive. It offers multiple horsepower options including one third, one fourth, and one sixth HP. The motor runs at a speed of 1075 RPM and operates on a voltage range of 208-230 volts at 60 Hz.

• 5.6 inches frame diameter
• Open ventilated design
• Suitable for furnace and blower applications

Product Highlights

This motor is ideal for heating and cooling systems. The sleeve bearing ensures smooth operation and longevity.

Product Information

Standard Information

• Brand: Fasco
• Manufacturer: Fasco Motors

Technical Specifications

• Model / MPN: D723
• Product Type: Electric Motor
• Frame Diameter: 5.6 inches
• Horsepower: 1/3-1/4-1/6 HP
• RPM: 1075
• Voltage: 208-230 volt
• Current: 3.3-2.3-1.8 Amp
• Bearing Type: Sleeve
• Speed: 3-Speed
• Frequency: 60 Hz
