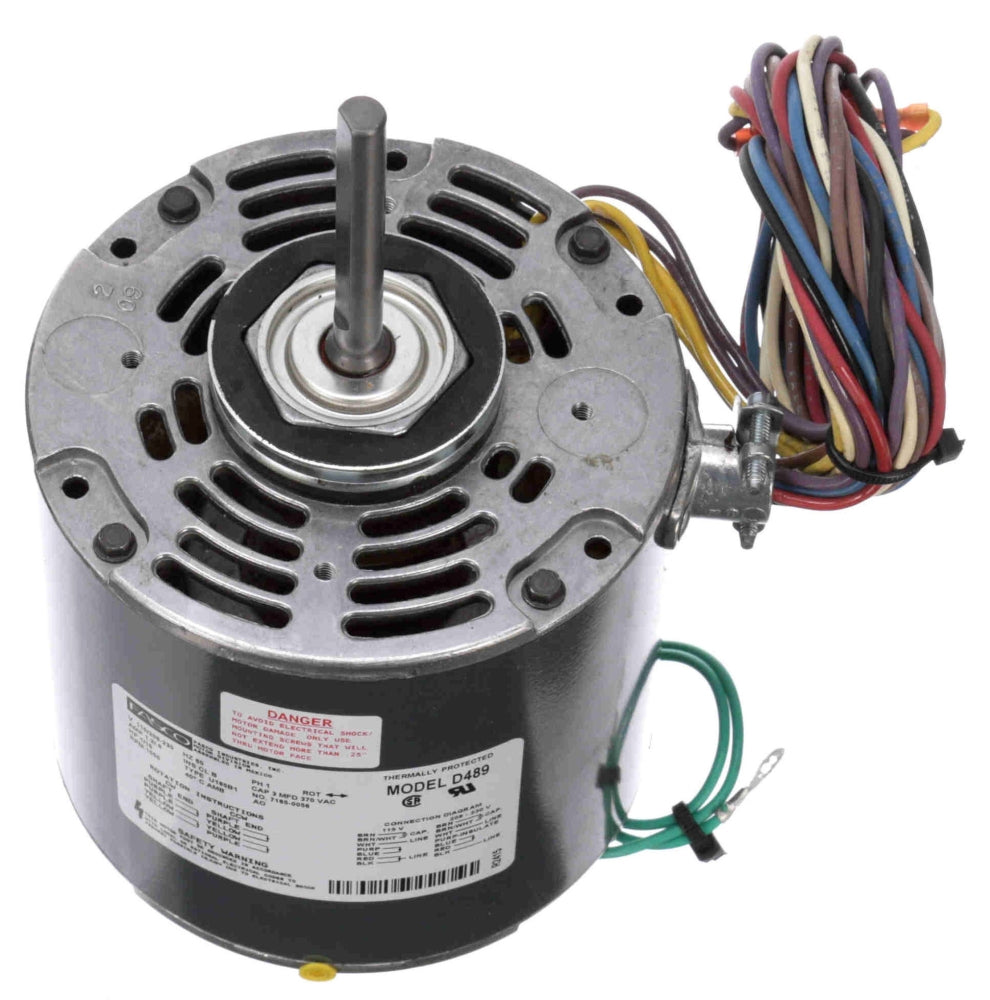

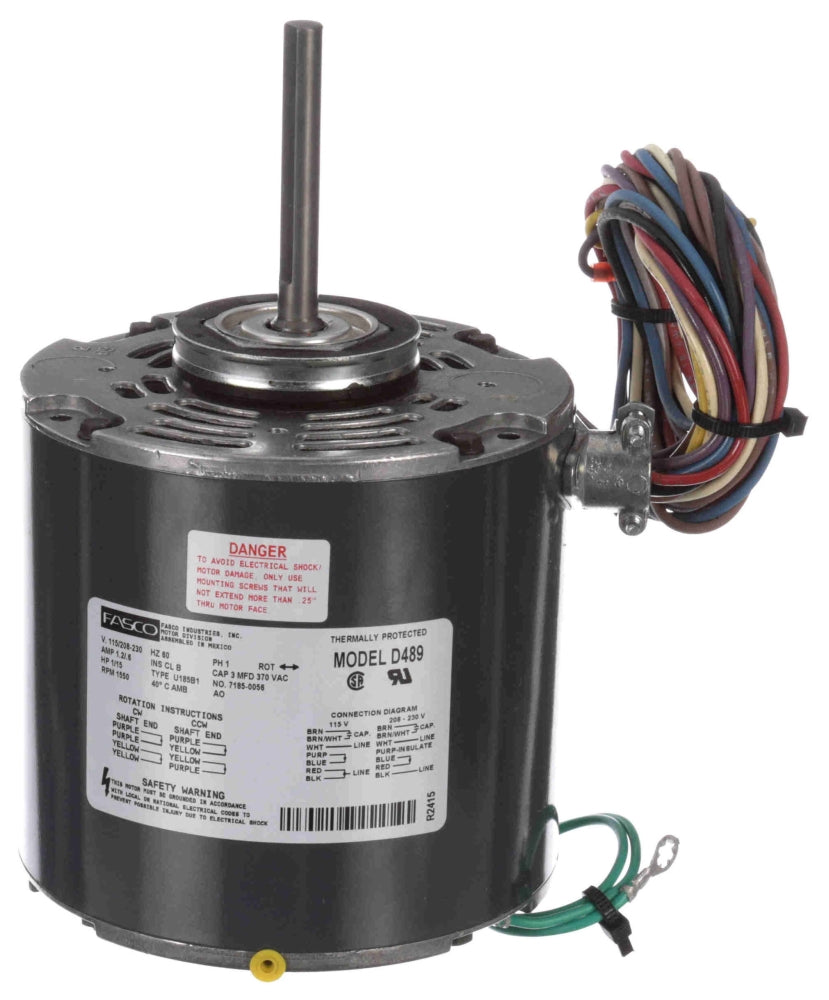

Fasco D489 Condenser Fan Motor 1/15 HP 115/208 to 230 VAC

Product Description

The Fasco Condenser Fan Motor, model D489, is designed to operate reliably in various HVAC applications. This motor is engineered to deliver efficient performance with a power rating of 1/15 HP. It is suitable for use in semi-enclosed environments and operates on a single-phase supply of 115/208 to 230 Volt AC.

• Reversible operation with ball bearings ensuring long service life.
• Permanent split capacitor design for consistent, energy-efficient operation.
• Compact size with an 8.62 inch overall length, accommodating tight installation spaces.

Product Highlights

This condenser fan motor features a resilient ring mount and a rolled steel frame, enhancing durability and stability. Its flat shaft and thermal protection enhance reliability in continuous duty applications.

Product Information

Standard Information

• Frame Material: Rolled Steel
• Motor FLA: 1.2/0.6 Amp

Technical Specifications

• Power Rating: 1/15 HP
• Voltage Rating: 115/208 to 230 VAC
• Frequency Rating: 60 Hz
• Speed: 1550 RPM
• Mounting: Resilient Ring
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Shaft Size: 0.375 inch diameter x 3.25 inch length
• Reversibility: Yes
