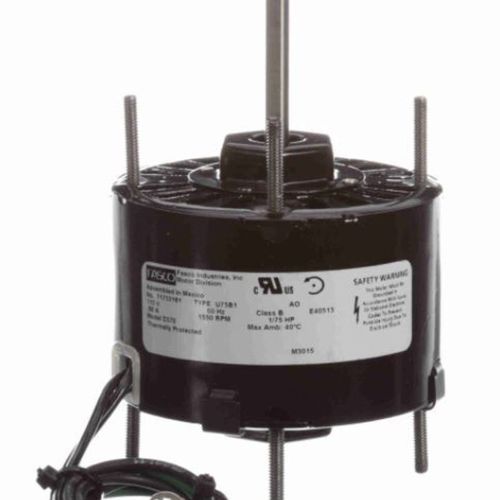

FASCO D370 Ventilation Motor 1/75 HP

Product Description

The FASCO D370 Ventilation Motor is suitable for various ventilation applications. It operates efficiently at 115V with a power output of 1/75 horsepower. The motor runs at a speed of fifteen hundred fifty revolutions per minute (RPM) and features an open air over enclosure for better airflow management.

• Fan and blower duty motor
• Diameter of three point three inches
• Thermally protected for reliable operation

Product Highlights

This motor is built with steel for enhanced durability and performance in demanding environments.

Product Information

Standard Information

• Electrical Type: Shaded Pole
• Phase: Single

Technical Specifications

• HP: 1/75
• RPM: 1550
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Voltage: 115
• Rotation: Counterclockwise Shaft End
• Material: Steel
• Mounting: Extended Studs
• Amperage: 0.60
• Shaft Type: Flat
• KW: 0.01
• Shaft Diameter: 0.250 inches
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 2.500 inches
• Overload: Thermally Protected
• Frequency: 60 Hz
• Insulation Class: B
• Number of Speeds: 1
• Overall Length: 5.11 inches
• Frame Length: 1.95 inches
• Thermal Cooling: Ambient
• Height: 3.38 inches
• Length: 8.00 inches
• Width: 3.88 inches
