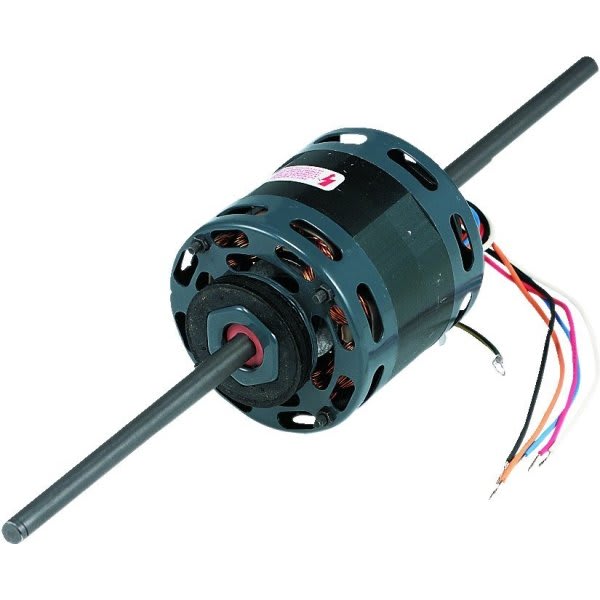

Fasco D338 Fan Coil & Air Conditioner Motor 1/6-1/10-1/12-1/15 HP

Product Description

The Fasco D338 is a fan coil and air conditioner motor with a power output of one-sixth to one-fifteenth horsepower. It operates efficiently at one hundred fifteen volts and sixty hertz. The motor has an open air over enclosure design and utilizes class B insulation.

• Thermally protected for enhanced safety
• Designed with a reversible rotation feature
• Includes resilient mounting rings and sleeve bearings

Product Highlights

This motor is designed for use in fan coil and room air conditioning applications. It provides reliable operation and is suitable for various HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• Application Type: Fan Coil/Room Air Conditioner Motor

Technical Specifications

• Phase: 1
• Output HP: 1/6-1/10-1/12-1/15 Hp
• Voltage: 115 V
• Speed: 1550 rpm
• Current: 5.4-3.2-2.5-2.1 A
• Enclosure: Open Air Over
• Length: 18.63 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 7.25 inches
• Weight: 10 pounds
