Fasco D314 1/5 HP, 230 VAC 60 Hz General Purpose Motor Replacement MPN

Product Description

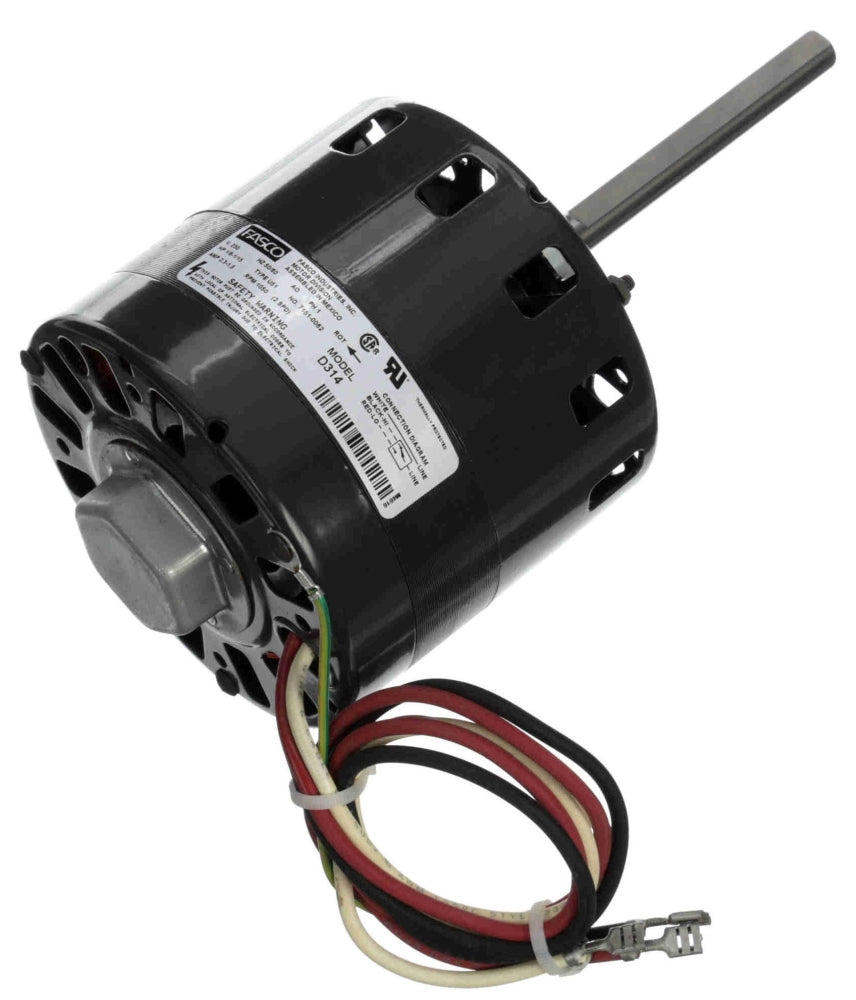

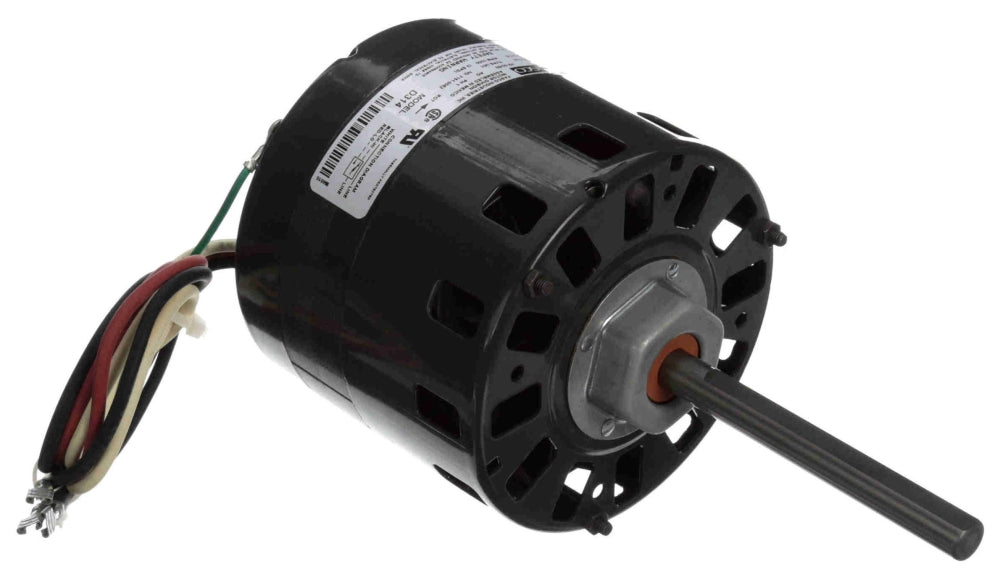

The Fasco D314 is a reliable general-purpose motor with a power rating of one-fifth horsepower and operates on two hundred thirty volts AC. This motor is designed for direct drive applications and is ideal for blower use. It features a six-pole design, operating at a speed of one thousand fifty RPM with two available speeds. The mounting system incorporates a resilient ring to ensure stability during operation.

• Voltage rating of two hundred thirty volts AC
• Operates at sixty hertz frequency
• Includes a twenty-inch lead with quick connect terminal

Product Highlights

The Fasco D314 is suitable for a variety of HVAC applications, providing dependable performance in open air-over enclosures.

Product Information

Standard Information

• Brand: Fasco
• MPN: D314

Technical Specifications

• Power Rating: 1/5 HP
• Voltage Rating: 230 Volt AC 1-Phase
• Number of Speeds: 2
• Speed Rating: 1050 RPM
• Service Factor: 1
• NEMA Frame Size: 42
• Weight: 9 Pound
• Insulation Class: A
• Ambient Temperature Rating: 40 Deg C
• Application: Direct Drive Blower
• Approval: UL, CSA
