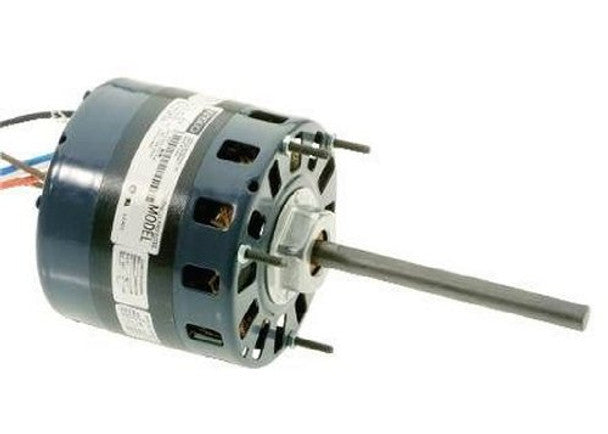

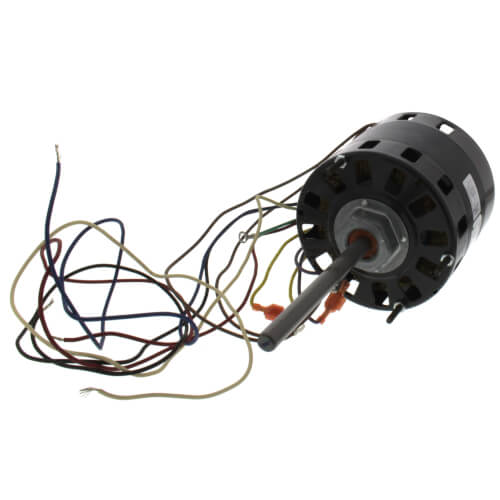

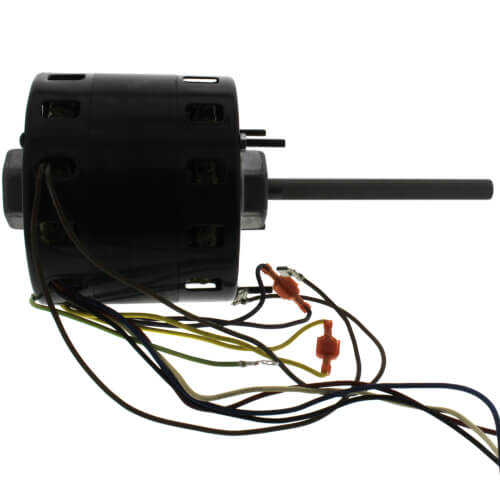

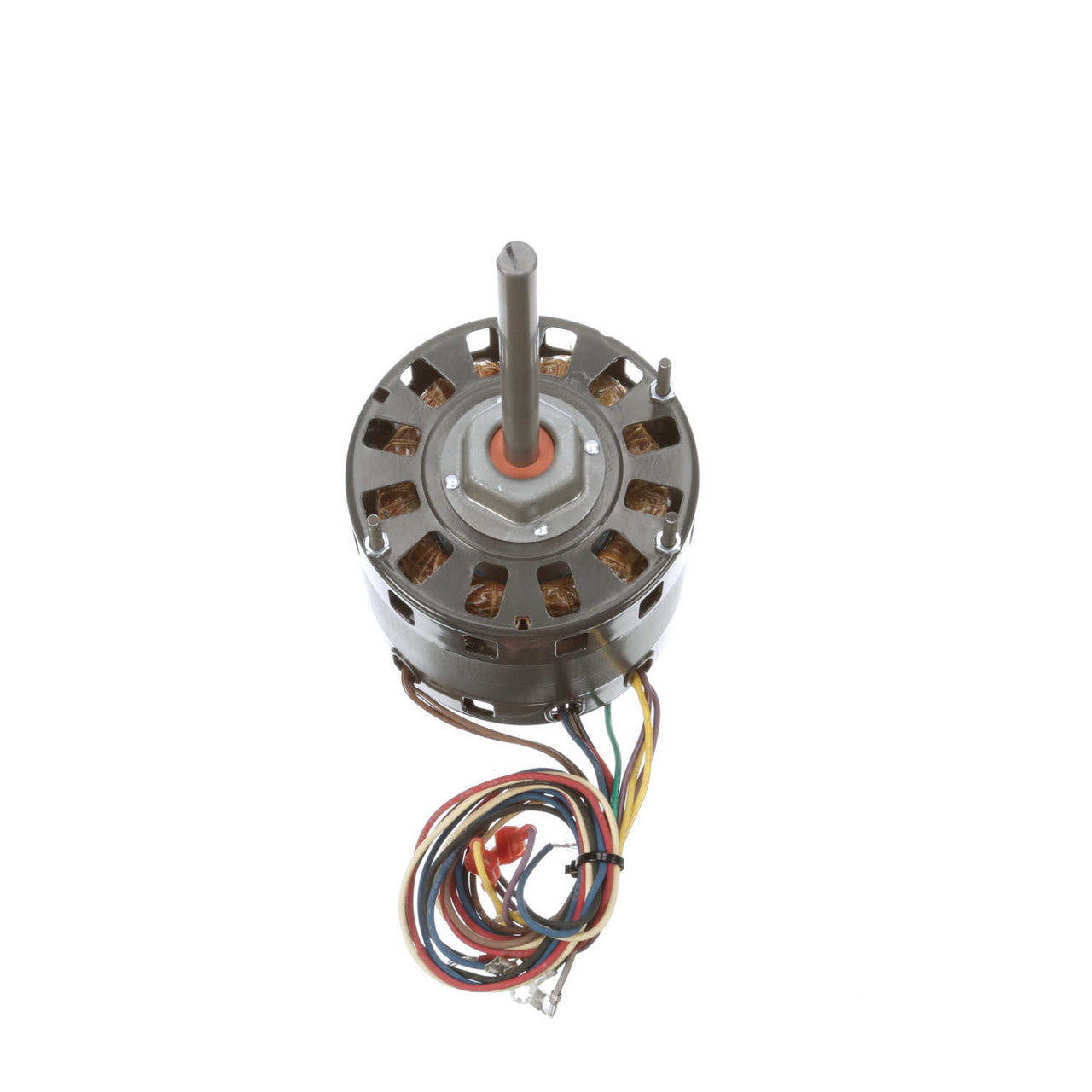

FASCO D150A Direct Drive Blower Motor 1/4 Hp

Product Description

The FASCO D150A is a direct drive blower motor suitable for HVAC and refrigeration applications. It operates on 115 volts and 60 hertz, with three-speed settings and a nominal speed of one thousand fifty RPM. The motor features an open air over enclosure and includes automatic overload protection. Its reversible rotation allows for versatile installation in various systems.

• Direct drive blower motor.
• Three-speed functionality.
• Reversible rotation for flexibility.

Product Highlights

Durable and reliable, the FASCO D150A motor is designed for continuous duty applications.

Product Information

Standard Information

• Brand: Fasco
• Country of Origin: Mexico

Technical Specifications

• MPN: D150A
• Horse Power: 1/4, 1/5, 1/6 Hp
• Input Voltage: 115 V
• Frequency: 60 Hz
• Output Current: 4.6, 3.2, 2.5 A
• RPM: 1050
• Number of Speeds: 3
• Phase: 1
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Mounting Type: Extended Studs
• Frame Size: 42
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6 inches
• Shaft Type: Flat
• Bearing Type Drive End: Ball
• Bearing Type Opp Drive End: Ball
• Electrical Type: Permanent Split Capacitor
• Duty: Continuous
• Service Factor: 1.0
• Overload Protection: Automatic
• Insulation Class: B
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: Y
• Poles: 6
• Frame Material: Rolled Steel
• Frame Length: 4.58 inches
