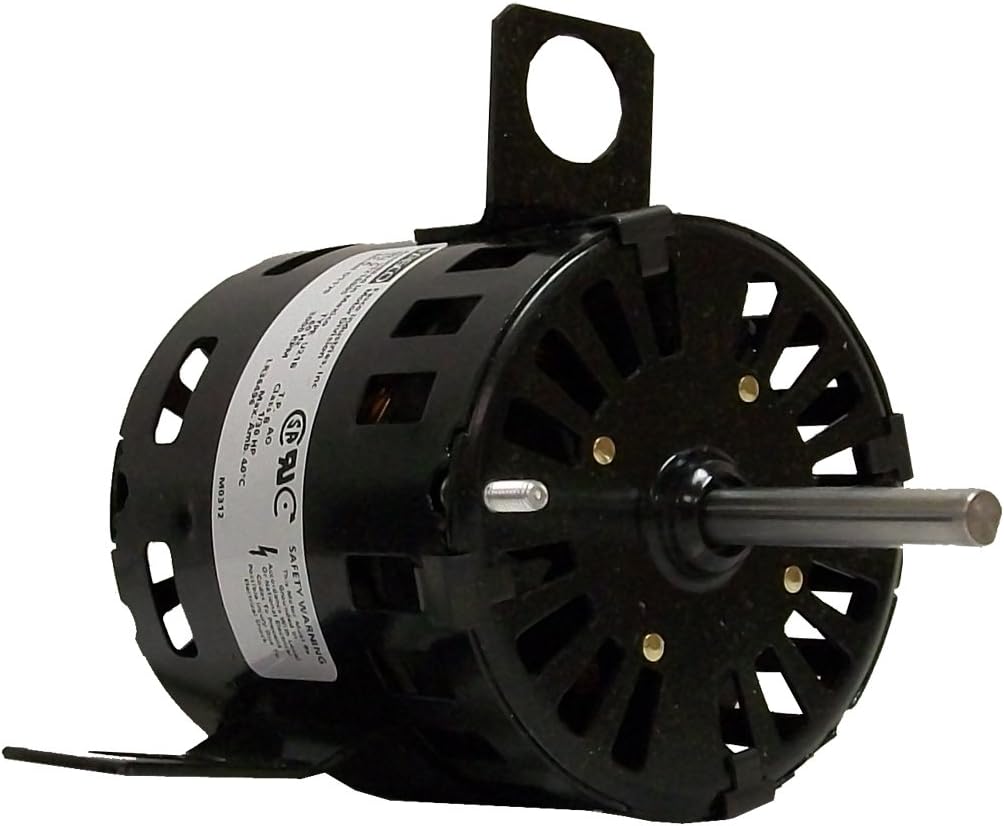

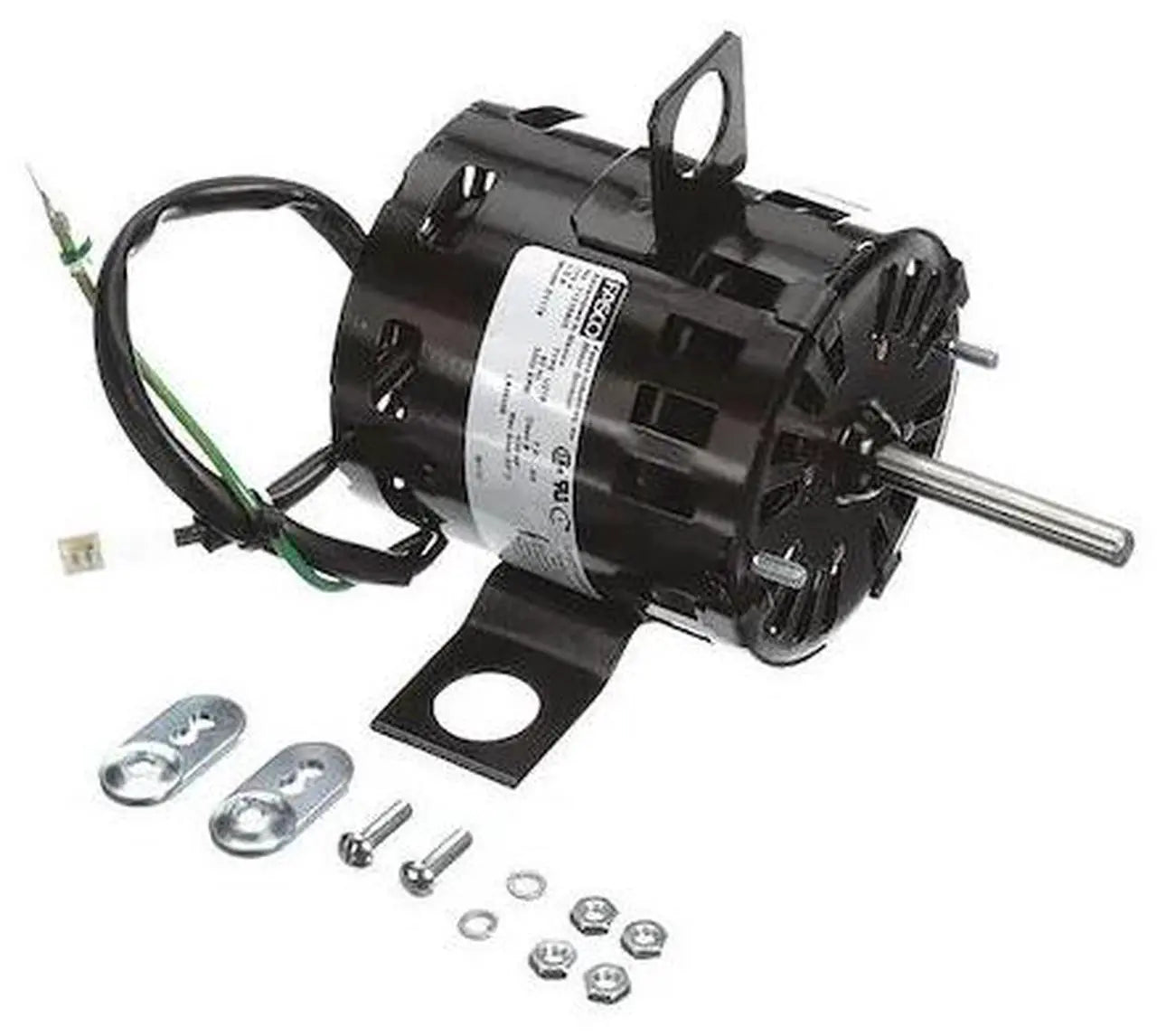

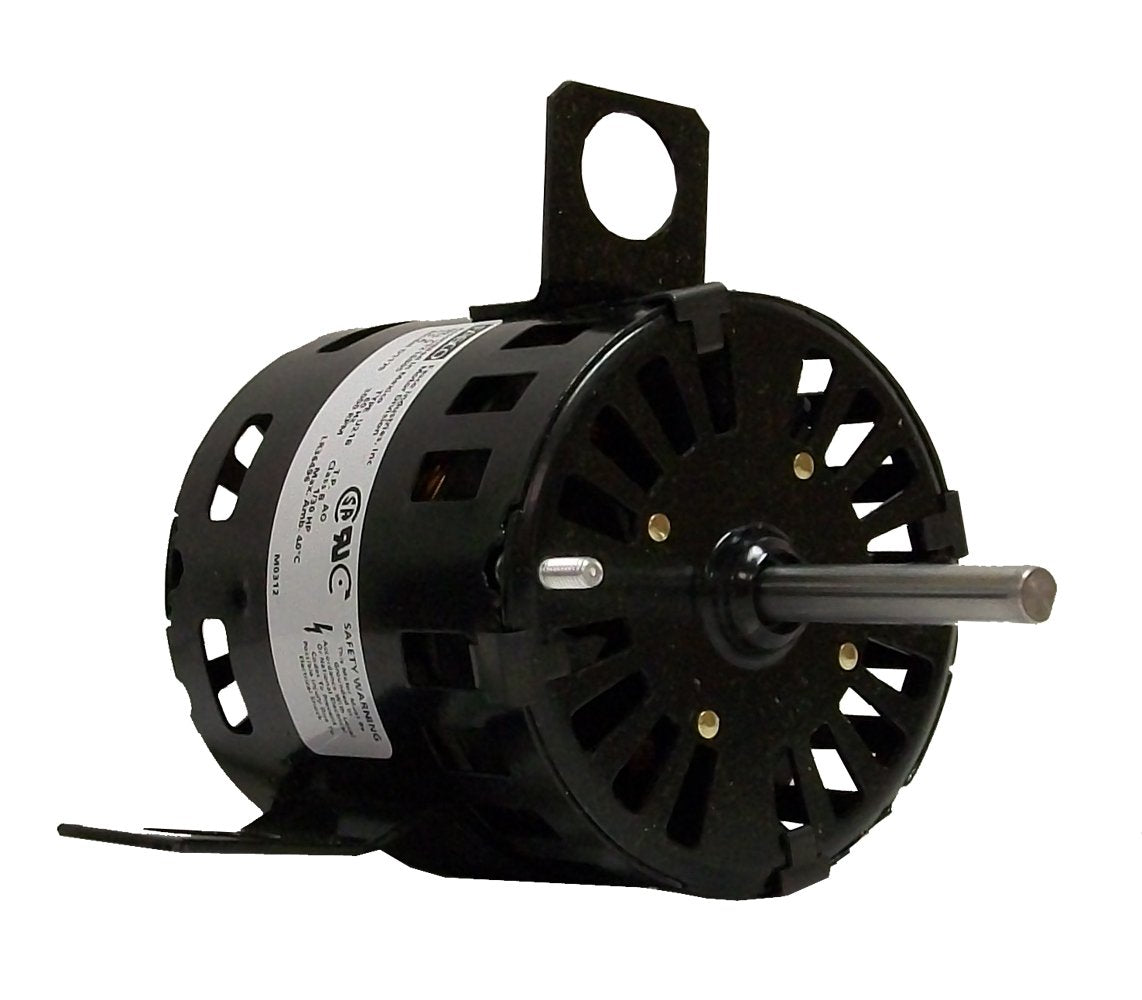

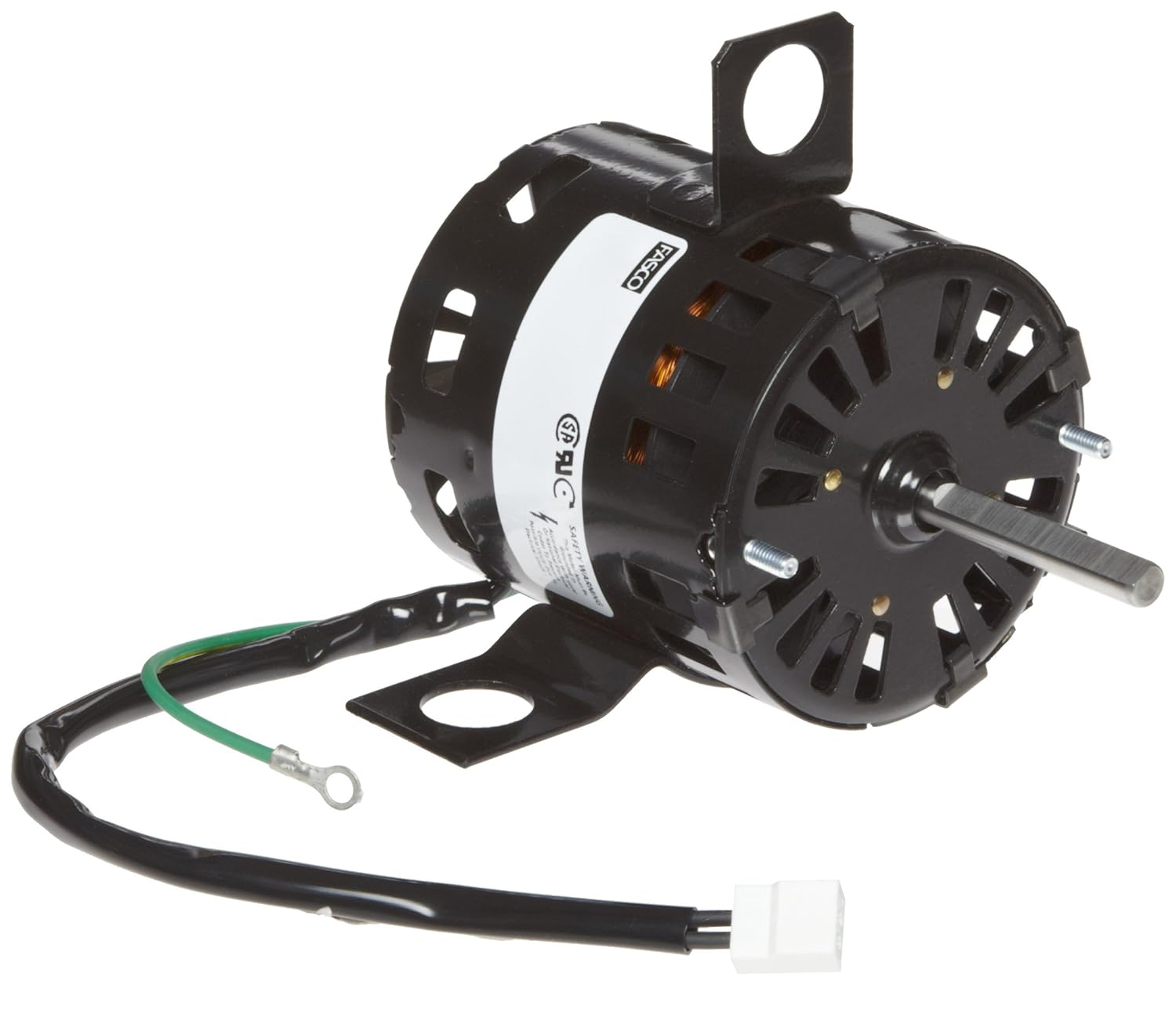

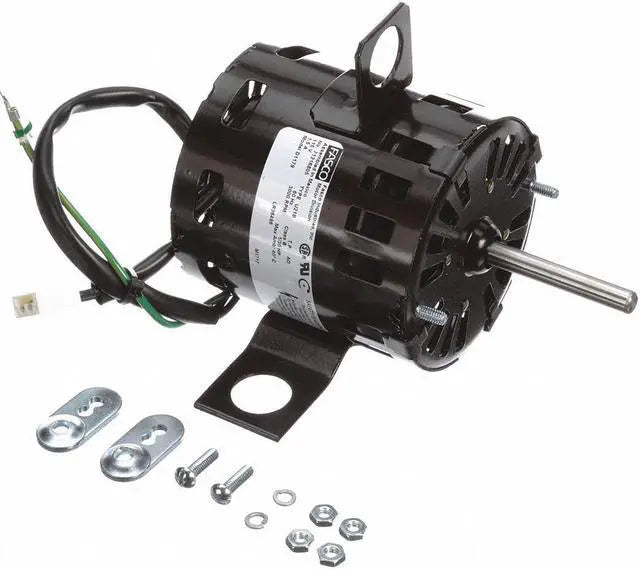

Fasco D1179 Draft Inducer Motor, 1/30 Hp, 115 Volt REPLACEMENT 8251510360

Product Description

The FASCO D1179 draft inducer motor is a 1/30 HP, 115V motor. This motor is designed as a condenser fan motor with a shaded pole and operates at 3000 RPM. It features an open air-over enclosure and automatic thermal protection. Commonly used for flue exhaust and draft booster blower applications.

• Open ventilated design
• Sleeve bearing
• Automatic thermal protection

Product Highlights

This Fasco motor is suitable for various applications, including condenser fans and flue exhaust systems. It ensures efficient performance and protection against overheating.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D1179
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• Horsepower: 1/30 HP
• Voltage: 115V
• Frame: 3.3"
• Application: Flue Exhaust and Draft Booster Blower Motor
• Frequency: 60 Hz
• Amperage: 1.5
• Speed: 3000 RPM
• Motor Design: Shaded Pole
• Phase: Single Phase
• Motor Service Factor: 1
• Motor Thermal Protection: Auto
• Insulation Class: B
• Maximum Ambient Temperature: 40 Degrees C
• Motor Shaft Rotation: CWSE
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Type: Stud
• Motor Frame Material: Steel
• Electrical Type: Shaded Pole
• Rotation: Clockwise Shaft End
• Material: Steel
• Mounting: Lug Bracket
• Shaft Type: Flat
• KW: 0.02
• Shaft Diameter: 0.313
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 2.200"
• Overload: Thermally Protected
• Poles: 2
• Number of Speeds: 1
• RPM Range: 3001-3600 rpm
• Rated RPM: 3000
• Bearing Type: Sleeve
• Enclosure Type: Open/Drip Proof
• Full Load Amps: 0.6 FLA
• Mounting Location: Stud
• Motor RPM 60 Hertz: 3000 rpm
• Manufacturers Part Number: D1179
• Certifications: UL and CSA
• Length Less Shaft: 3 in
• MPN: D1179
• OEM Replacement Brand: Carrier/BDP
• Replacement For: 8251510360
• Voltage Compatibility: 115V AC, 120V AC
