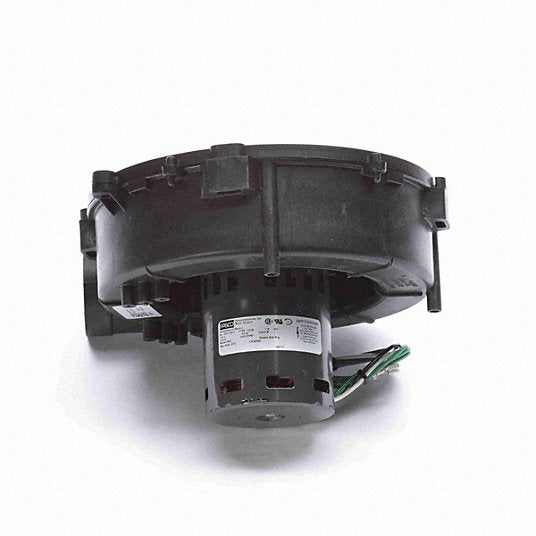

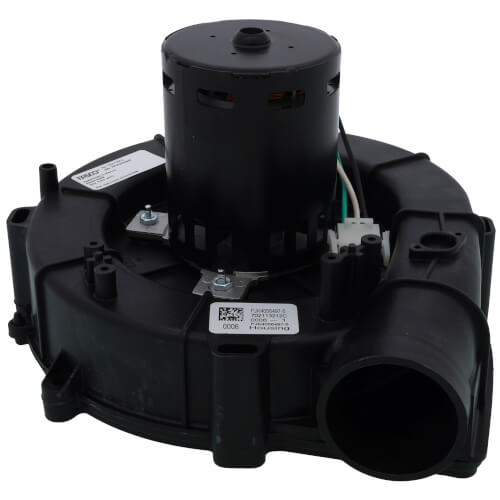

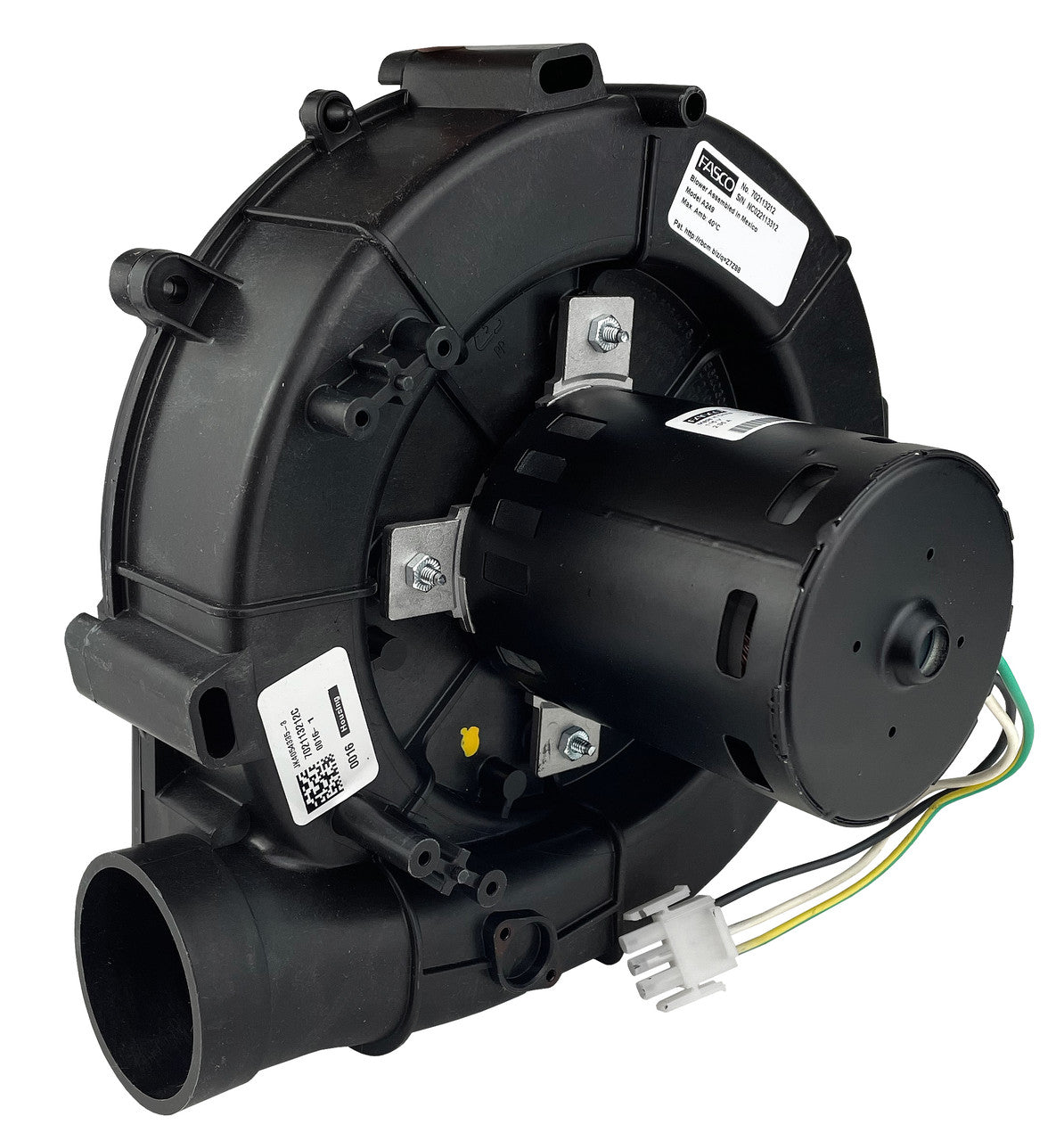

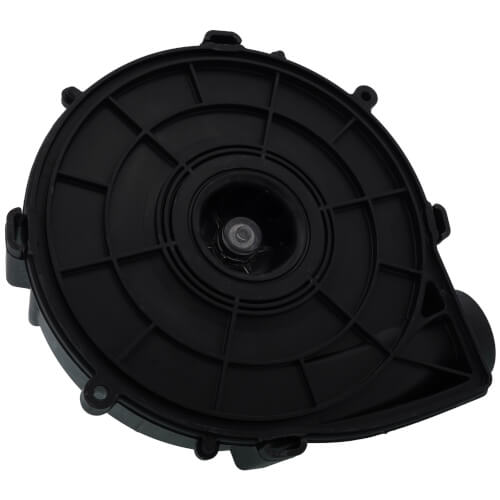

Fasco A249 Draft Inducer Blower Motor 1 Speed 3400 RPM

Product Description

The FASCO A249 is a 1-speed draft inducer blower motor designed for optimal performance at 3400 RPM and operates on 115V. As a shaded pole motor, it comes with thermal protection, ensuring reliable functionality. This motor serves as a direct replacement for Lennox models 103618-01 and 103618-03, making it a suitable choice for various HVAC systems.

• OEM Direct Replacement for Draft Inducer Blowers
• 3.3 Inches Diameter for Easy Installation
• Thermally Protected with Class B Insulation

Product Highlights

This motor is suitable for applications requiring a draft inducer in HVAC systems, ensuring efficient air movement.

Product Information

Standard Information

• Brand: Fasco
• Model Name: A249

Technical Specifications

• Voltage: 115V
• Type: Shaded Pole
• Amperage: 2.35 A
• Speeds: 1
• RPM: 3400
• Bearings: Ball
• Max Ambient Temp: 104°F
• Insulation Class: B
• Motor Enclosure Type: Open Air Over
• Power Source: Corded Electric
• Compatible Products: Central Furnace
• Shaft Diameter: 5/16 Inches
• Shaft Length: 15/16 Inches
• Overall Length: 9-13/16 Inches
