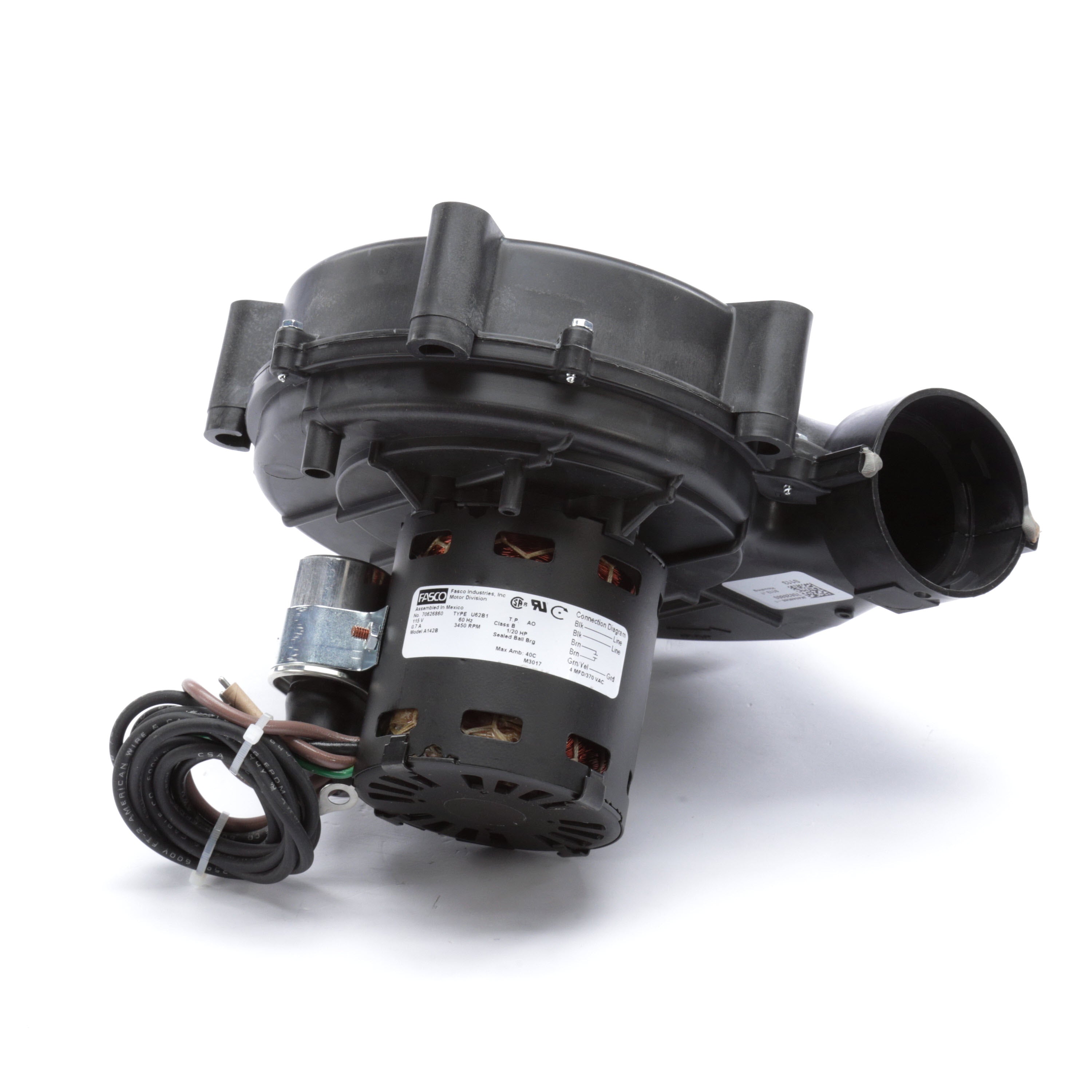

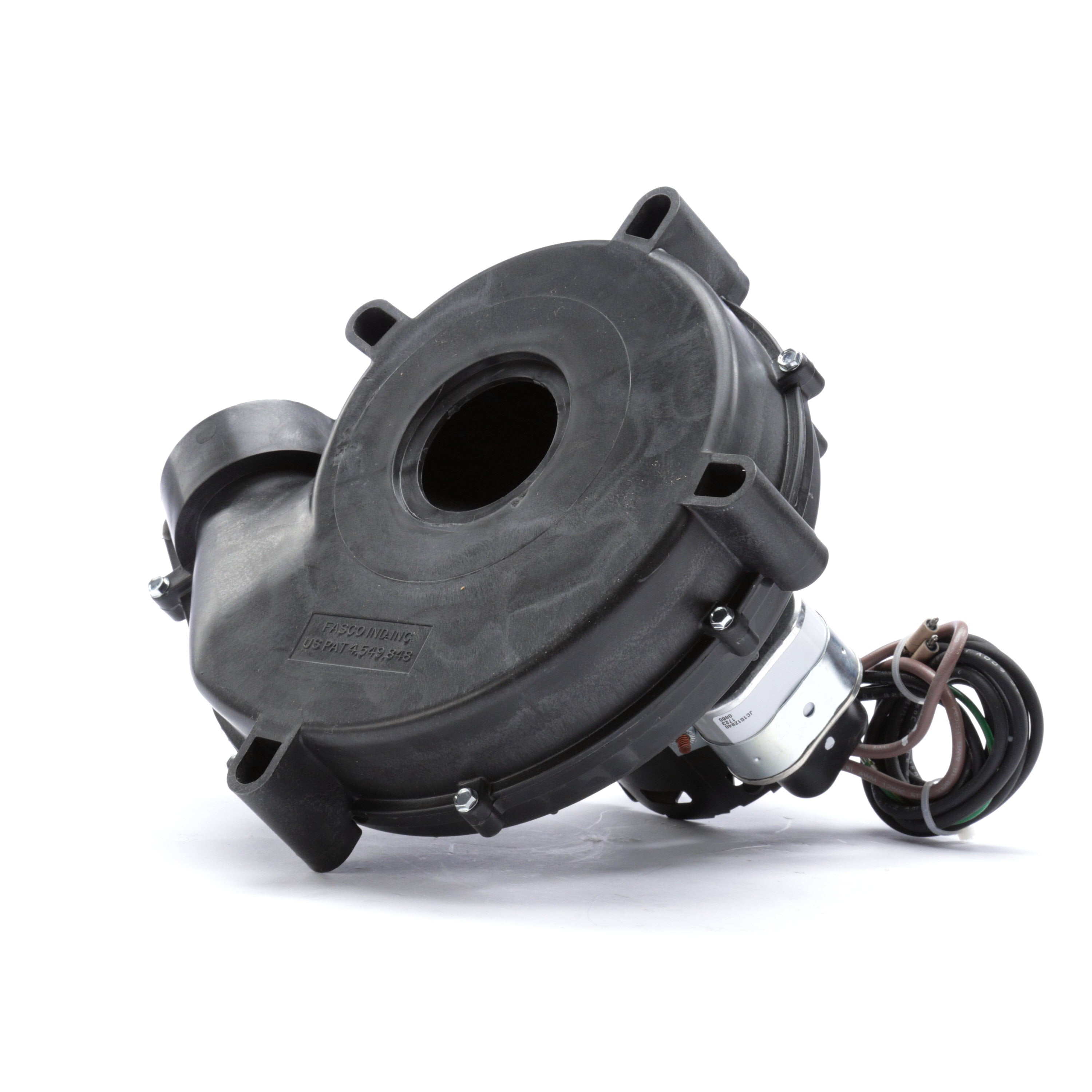

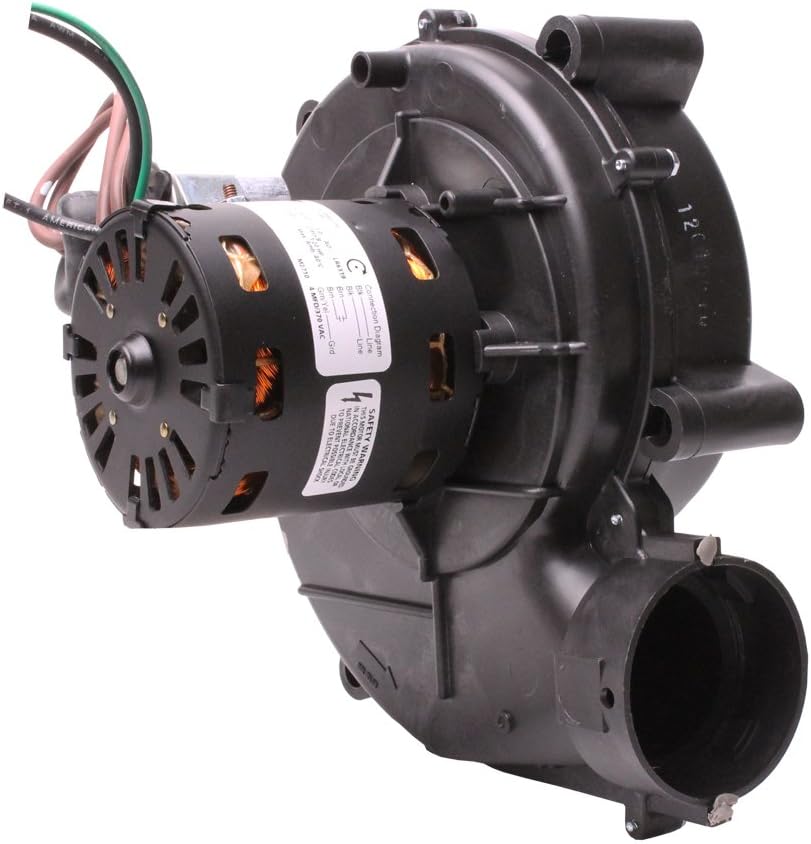

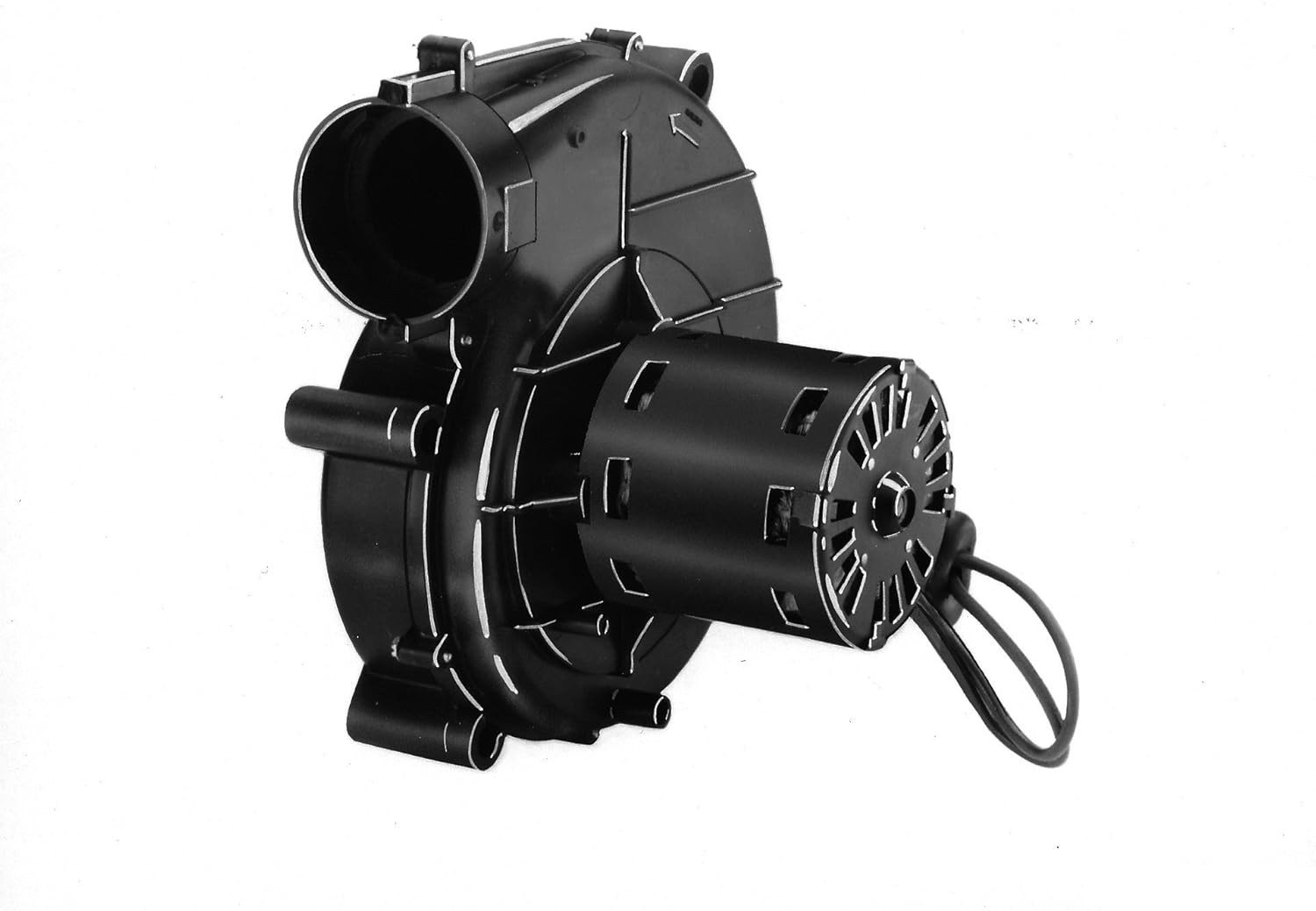

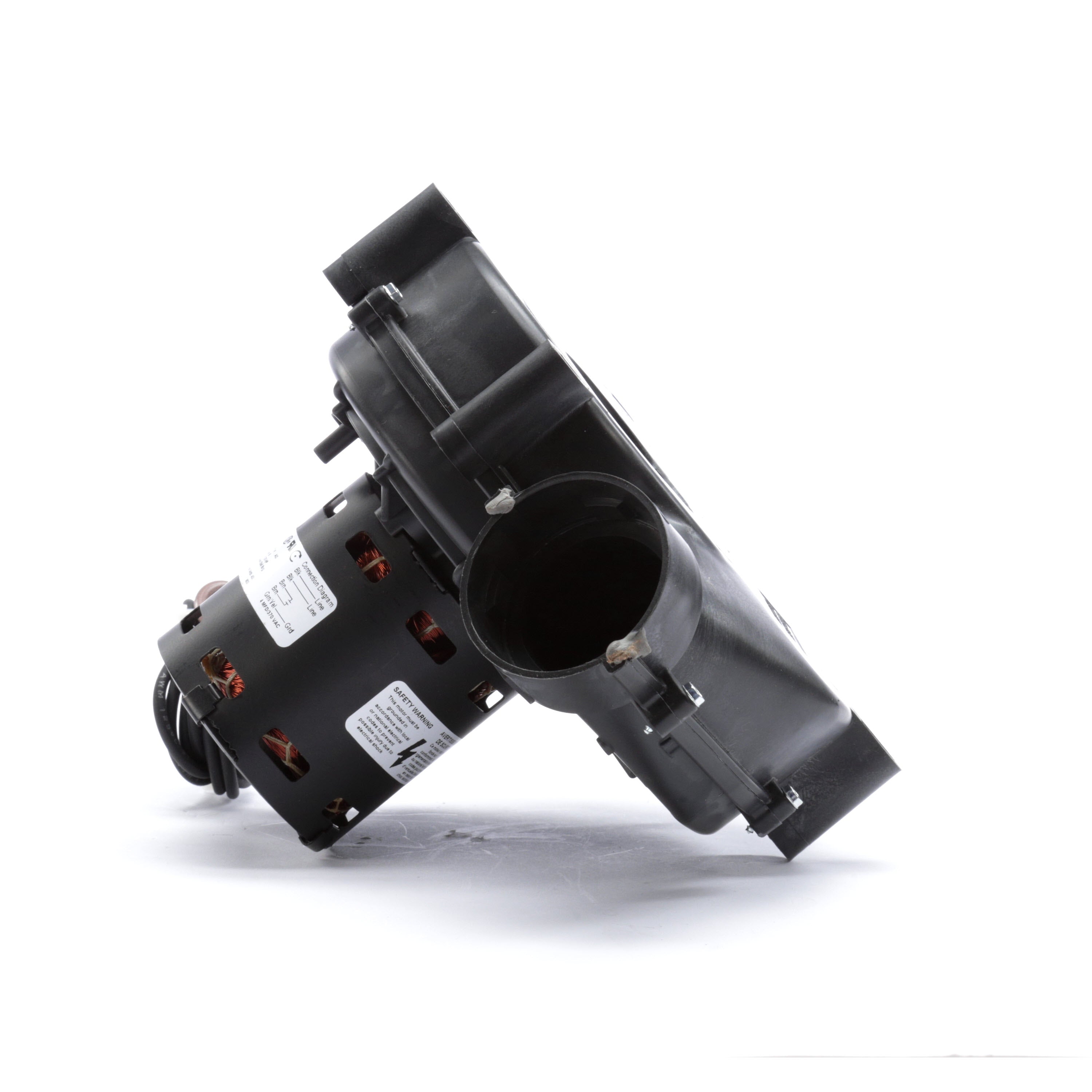

Fasco A142 3.3 inches Frame Permanent Split Capacitor OEM Replacement Specific Purpose Blower 1/20HP

Product Description

The Fasco A142 3.3" Frame Permanent Split Capacitor OEM Replacement Specific Purpose Blower features a sleeve bearing, 1/20HP, 3,450 rpm, 115V, 60 Hz, and 0.7 amps. This blower is designed as an OEM replacement and is suitable for various applications including furnaces, boilers, and water heaters. It helps improve the efficiency and performance of systems.

• OEM Replacement
• Sleeve Bearing
• Permanent Split Capacitor

Product Highlights

The Fasco A142 blower is an OEM replacement part with a permanent split capacitor and sleeve bearing.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: A142
• Country of Origin: Mexico

Technical Specifications

• Speed: 3450 RPM
• Voltage: 115 Volts
• Amps: 0.7
• OEM: Rheem, PMI Vulcan Hart
• Cross Reference: 7062-1881, 7062-2615, 7062-2513, 416673-00003, 70621881, 70622615, 70622513, 41667300003
• DEM Reference: FA#A142
• Spec Sheet: A142
• amps at free air: 0.6
• bearings: Sleeve
• capacitor: 4MFD-370V
• diameter: 3.3"
• enclosure: Open
• hertz: 60
• nameplate cfm: 159
• overload: Automatic
• phase: 1
• rotation: CW
• rpm: 3450
• rpm at free air: 3100
• speeds: 1
• type: Permanent Split Capacitor
• Brand: Fasco
• Manufacturer: Fasco Motors
• MPN: A142
• Model: A142
