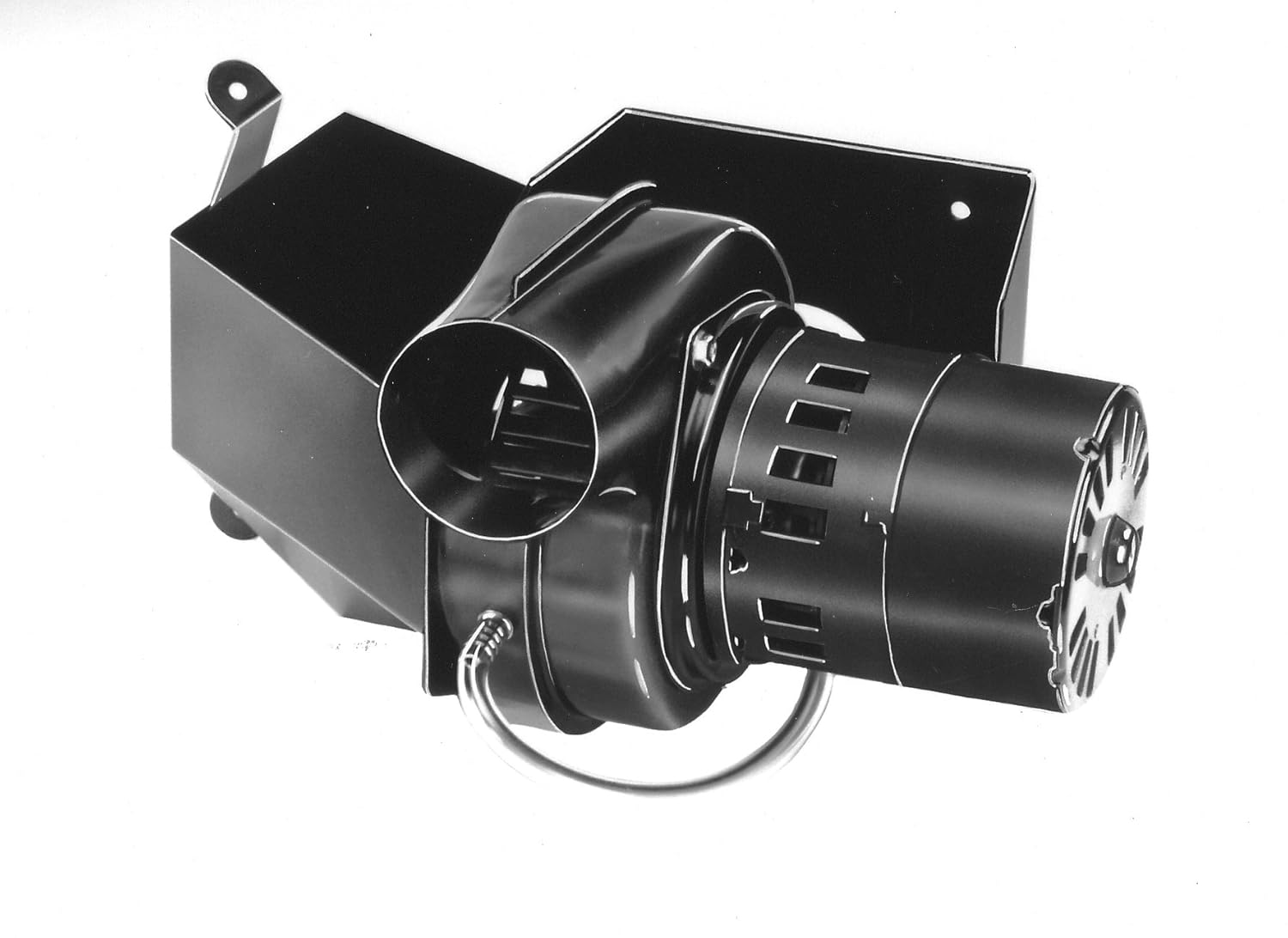

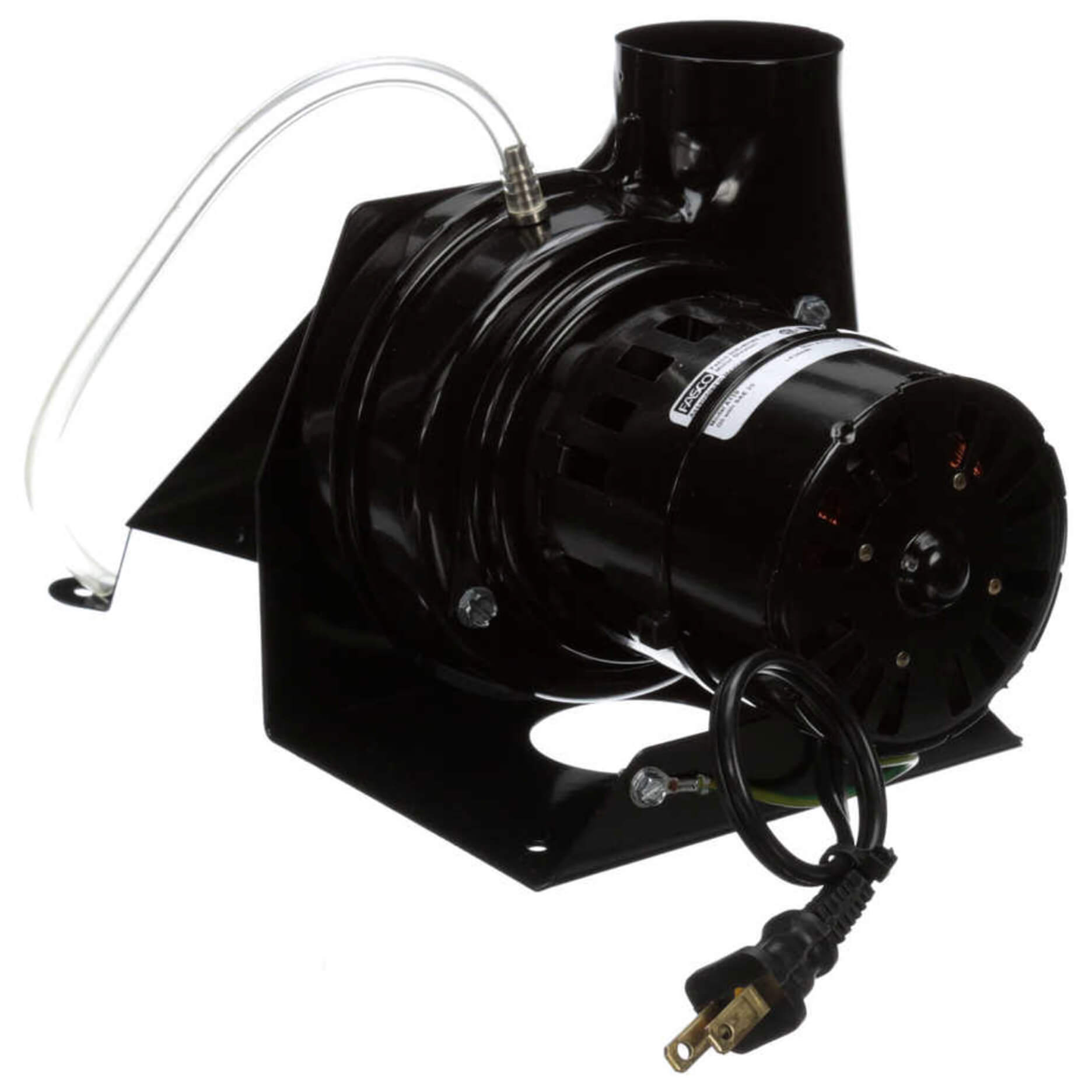

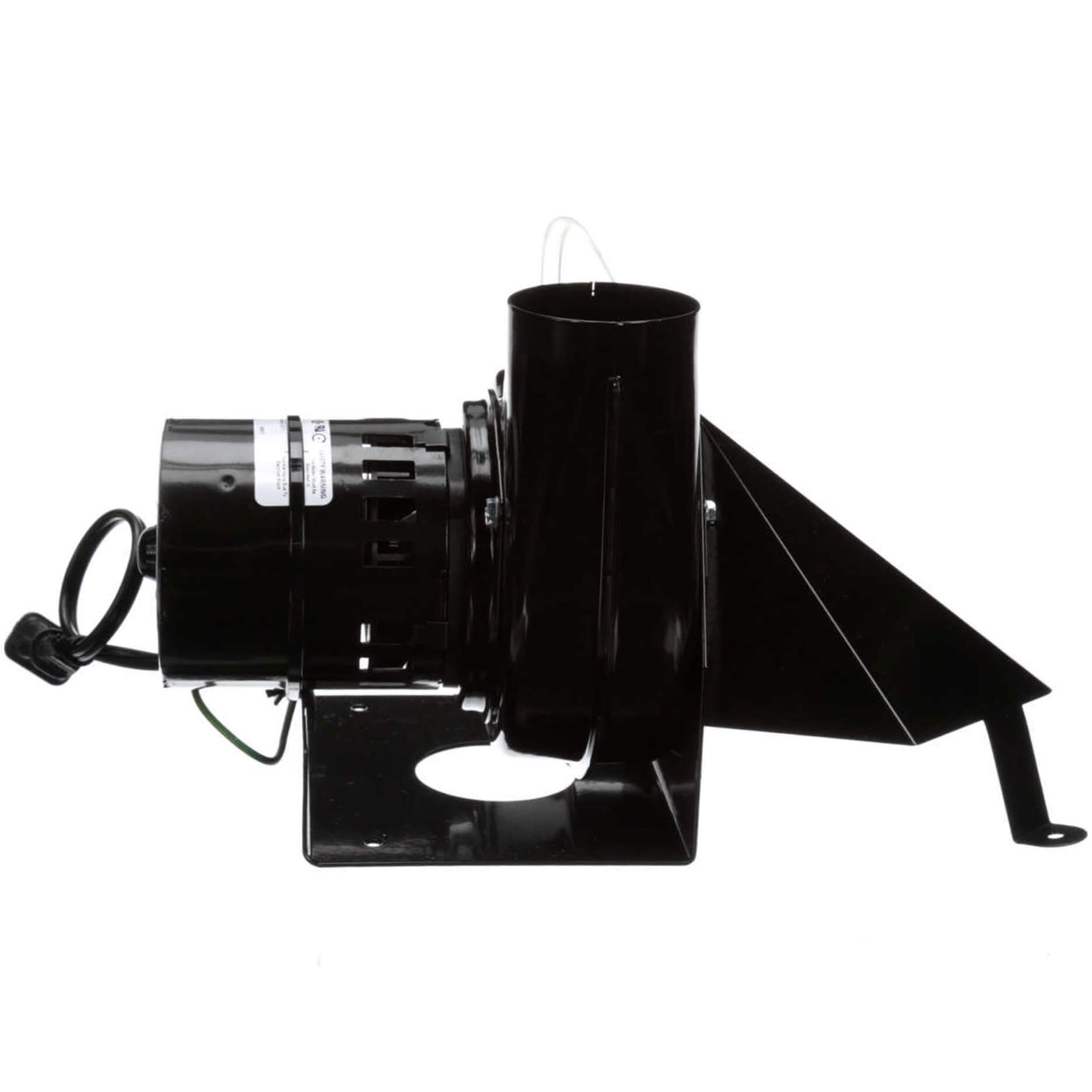

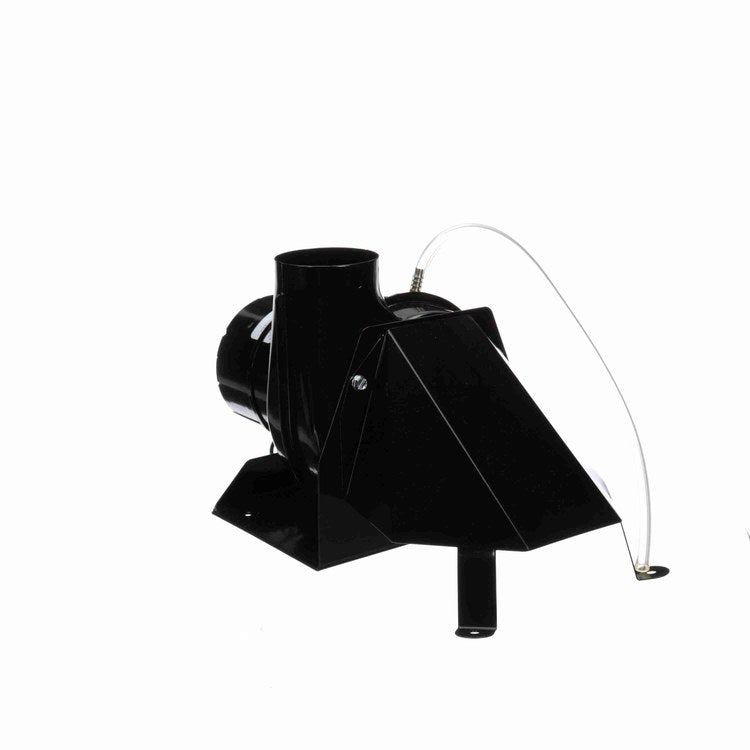

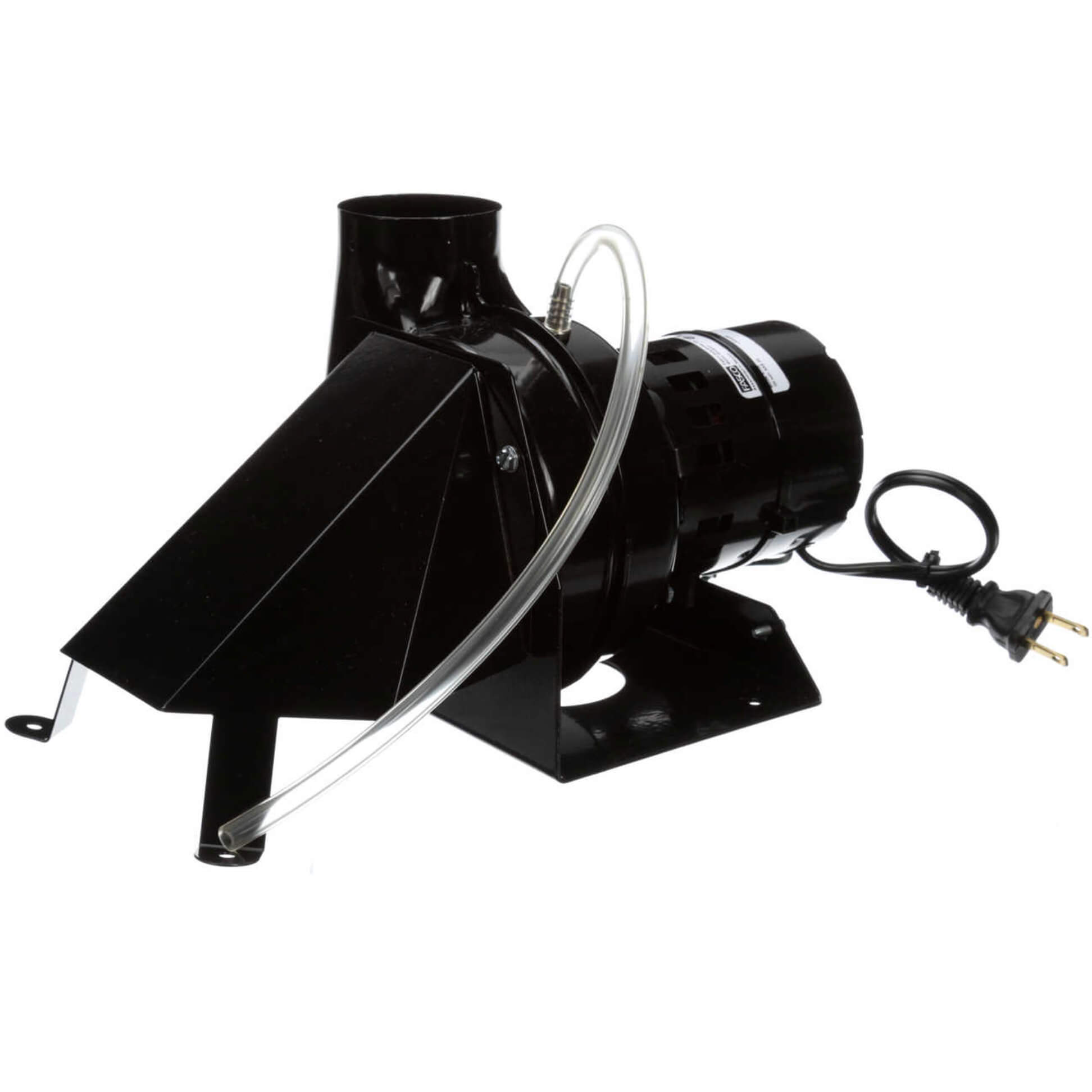

Fasco A139 1-Speed Rheem Draft Inducer Motor 115V 3000 RPM

Product Description

The Fasco A139 is a 1-speed draft inducer motor designed for specific applications. This motor operates on 115 volts with a speed of 3000 RPM and a power output of 1/55 horsepower. It is ideal for use in Rheem systems and serves as an OEM replacement. The motor features a durable sleeve bearing and is built to function reliably in demanding conditions.

• OEM Replacement for Rheem Systems
• Specific Purpose Blower
• Optimized air flow capacity of 139 CFM

Product Highlights

This motor operates at 60 Hz with an amperage of 0.95, supporting efficient operation.

Product Information

Standard Information

• Brand: Fasco
• OEM: Rheem

Technical Specifications

• Voltage: 115V
• RPM: 3000
• Horsepower: 1/55 hp
• Frame: 3.3 inches
• Frequency: 60 Hz
• Amps: 0.95
• Rotation: Clockwise
• Phase: 1
• Speeds: 1
• Enclosure Type: Open Fan Cooled
• Insulation Class: B
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Air Flow Capacity (CFM): 139
• Approvals: CSA, UL
