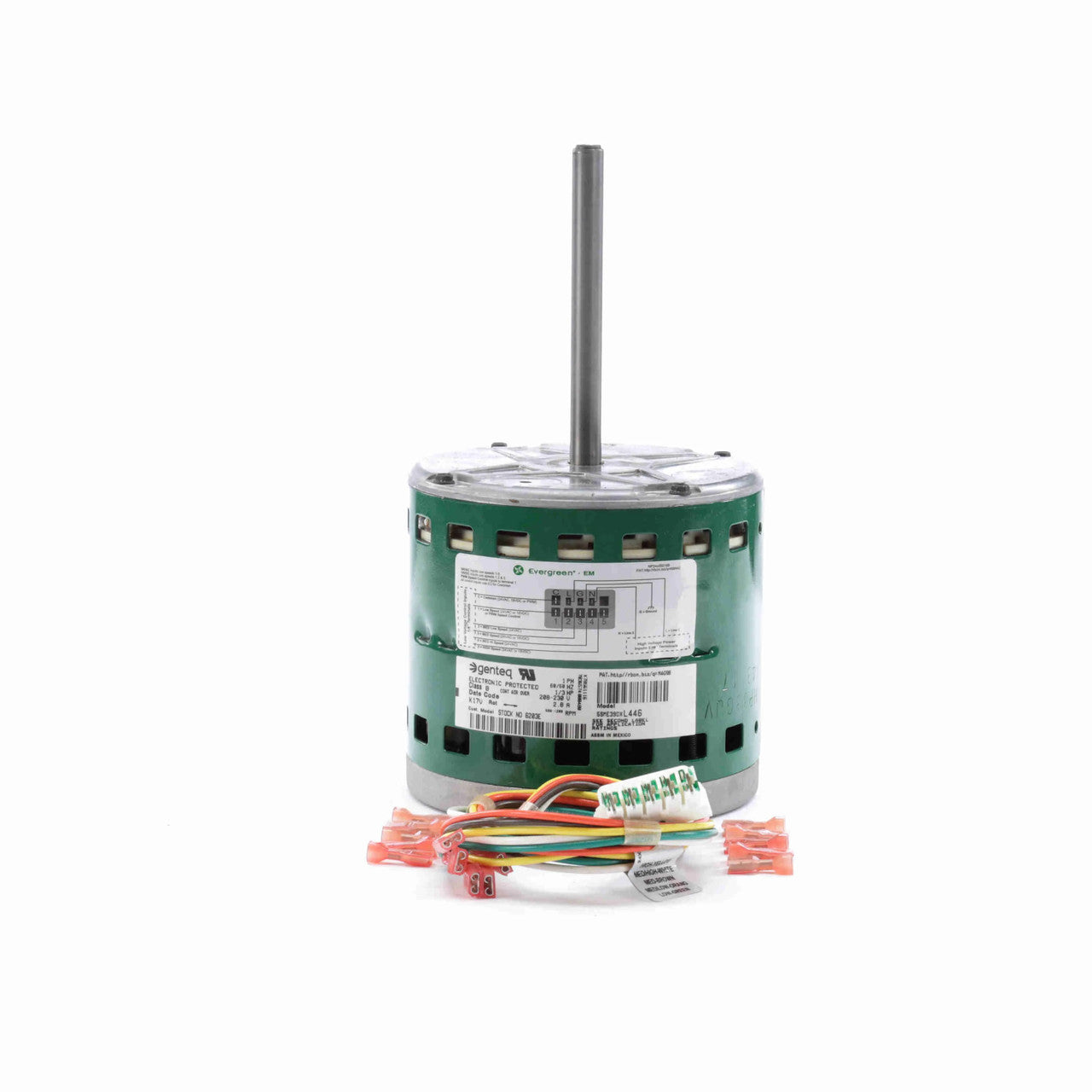

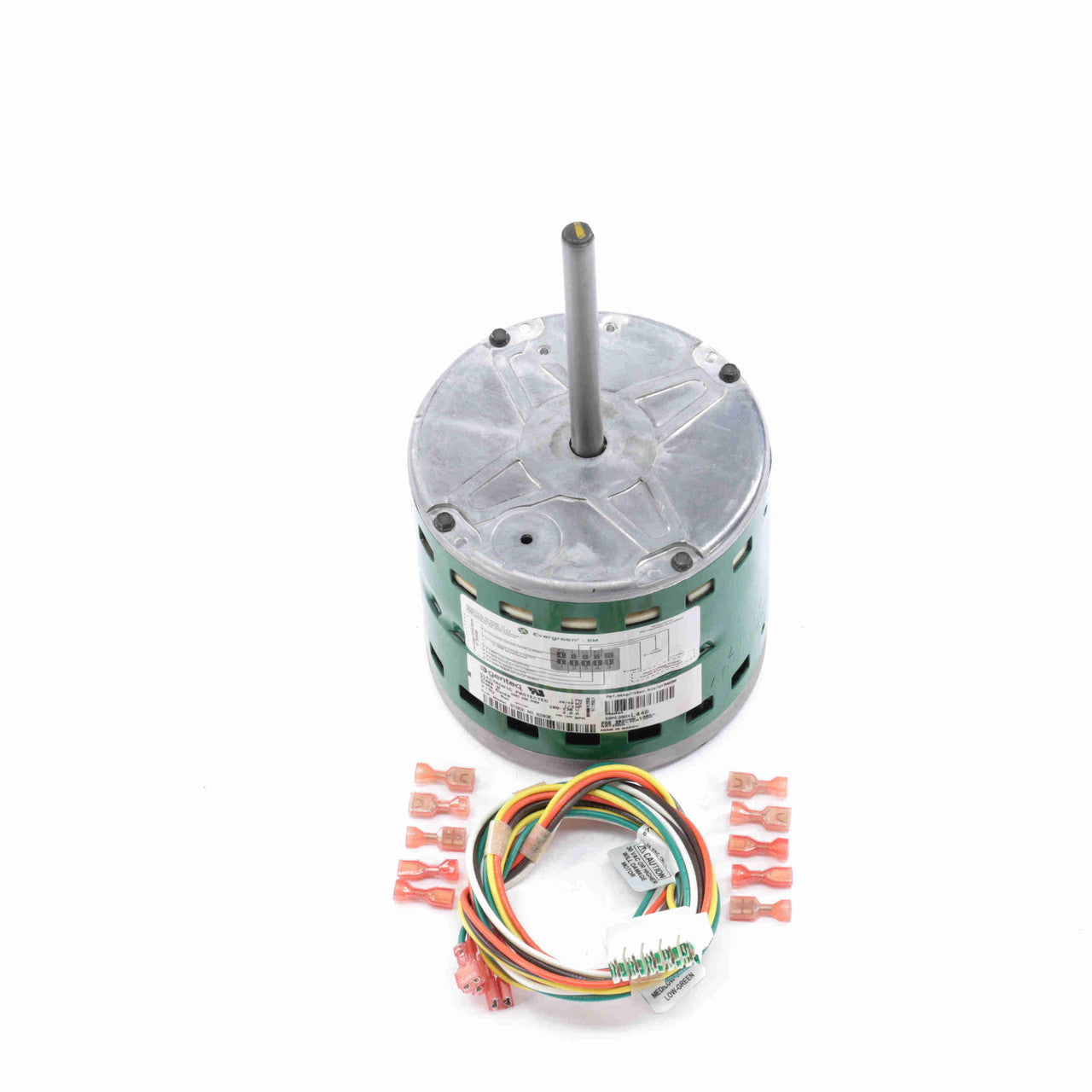

Fasco 6203E Direct Drive Motor 1/3 HP

Product Description

The Fasco 6203E Direct Drive Motor is an ECM type motor. It features single-phase operation and a voltage range of 208-230 volts, delivering 1/3 hp output. The motor has a rolled steel construction and OAO enclosure. It is designed for efficiency and versatility in various applications.

• ECM Motor
• Direct Drive Motor
• 208-230 voltage range

Product Highlights

The Fasco 6203E is an ECM motor with a 208-230V voltage range, rolled steel material, and OAO enclosure.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 6203E

Technical Specifications

• Electrical Type: ECM
• RPM: 1075
• Frame: 48Z
• Diameter: 5.6"
• Enclosure: OAO
• Phase: Single
• Voltage: 208-230 V
• Rotation: REV
• Overload: None
• Material: Rolled Steel
• Mounting: Belly Band
• Amperage: 2.8 A
• Shaft Type: Flat
• Motor__Frame_Size: 48
• Motor__Frame_Suffix: Z
• Output KW: 0.25 kW
• Frequency: 60 Hz
• Service Factor: 1
• Duty: Continuous Air Over
• Insulation Class: B
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: N
• CE: N
• Number of Speeds: 5
• Poles: 12
• Motor Orientation: Hor
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 10.20 in
• Frame Length: 4.32 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.92 in
• Thru-bolts Extension: 0 in
• Horsepower: 1/3
• Speeds: Multi
