Fasco 5863 Us Motors Rescue Direct Drive Blower Motor 1/3HP

FASCO
Brand: FASCO
SKU: 5863
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$497.33
$497.33
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

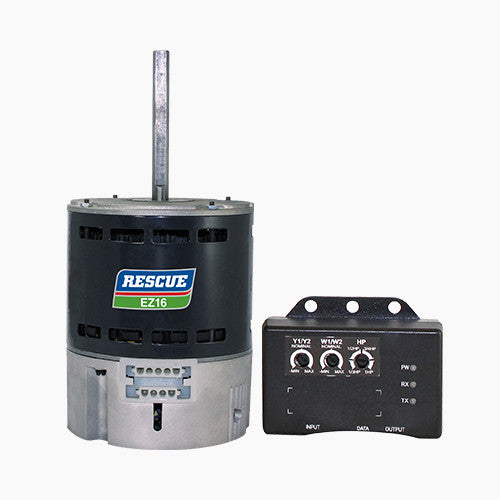

The FASCO 5863 US Motors RESCUE Direct Drive Blower Motor is an EZ16 ECM programable motor. This .33 HP motor features an adjustable airflow and is a 16-Pin Replacement for ECM 2.0, 2.3, EON. It is field tunable with an EZ Interface and has a reversible rotation.

  • Direct Drive Blower
  • Field Tunable EZ Interface
  • Adjustable airflow at point of installation

Product Highlights

The FASCO 5863 is a .33 HP motor with a reversible rotation and adjustable airflow.

Product Information

Standard Information

  • Brand: FASCO
  • Manufacturer Part Number: 5863

Technical Specifications

  • PHASETYPE: 1_BRUSHLESS PERMANEN
  • MOTOR ENCLOSURE: OPAO
  • HORSEPOWER: .33
  • KILOWATTS: 0.3
  • POLES: 10
  • NUMBER SPEEDS: 1
  • RPM: 1075
  • HERTZ: 60
  • HERTZ 2: 50
  • VOLTS PRIMARY: 115/208-230 V
  • FRME: 48
  • SHAFT CODE: Y
  • STACK: 0.9
  • MOTOR TYPE: FHP
  • OPPOSITE END BEARING: BALL
  • SHAFT END BEARING: BALL
  • AMBIENT: 40
  • ROTATION: REVERSIBLE
  • THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
  • INSULATION CLASS: B
  • FULL LOAD AMPS PRIMARY: 4.5/2.9-2.7&4.5/2.9-2.7
