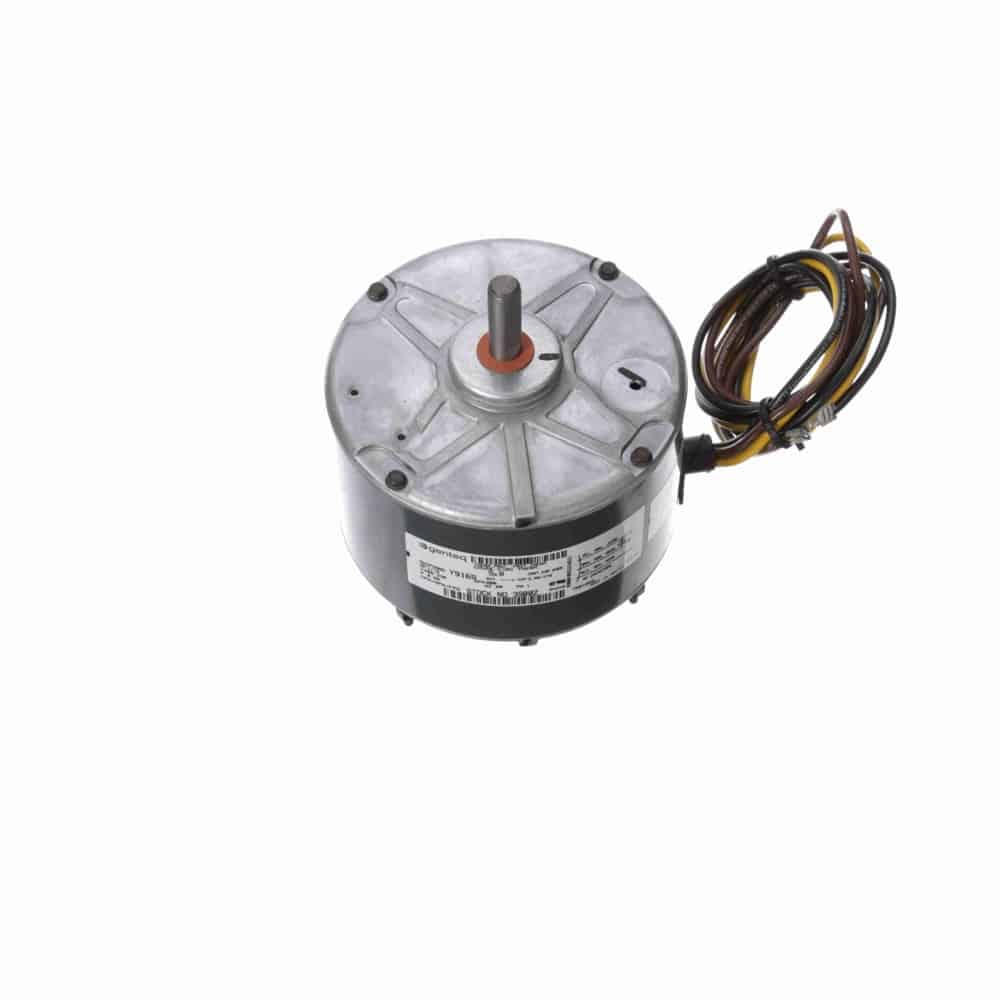

Fasco 3S002 Genteq Motor 1/15 HP

Product Description

The FASCO 3S002 Genteq motor is an OEM direct replacement part. This 1/15 HP motor operates at 208-230 V and 800 RPM with a single speed. It features a 48 frame, TEAO enclosure, and is thermally protected. Compatible with Fasco products, it's designed for continuous air over duty.

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)

Product Highlights

The FASCO 3S002 is a 1/15 HP Genteq motor with a 48 frame, designed as a direct OEM replacement. It operates at 208-230V and 800 RPM.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 3S002
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/15 Hp
• Output KW: 0.05 kW
• Voltage: 208-230 V
• Speed: 800 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.50 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Poles: 8
• Rotation: Clockwise
• Mounting: Extended Studs
• Motor Orientation: Vertical Shaft Down
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 5.71 in
• Frame Length: 3.07 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 1.50 in
