Product Description

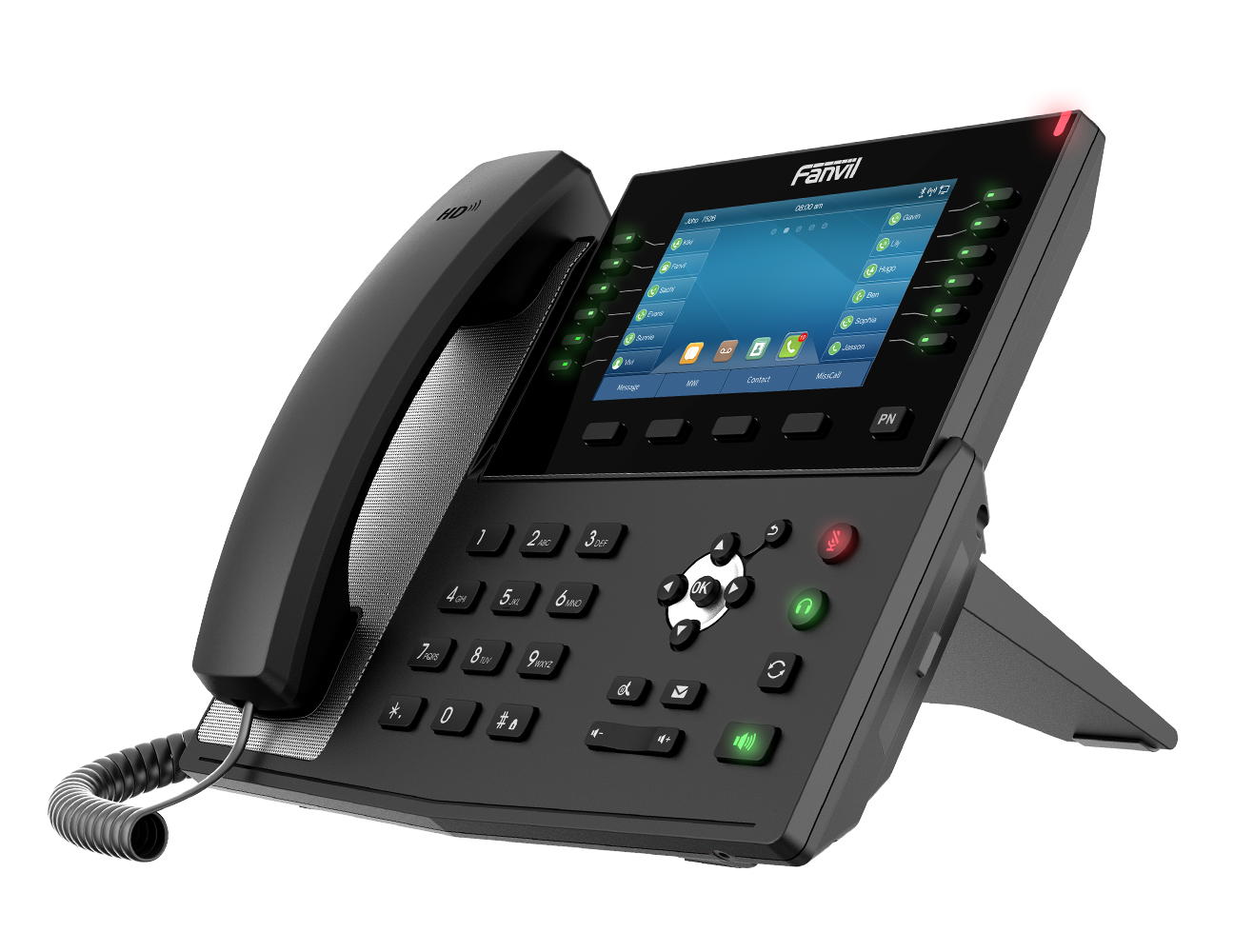

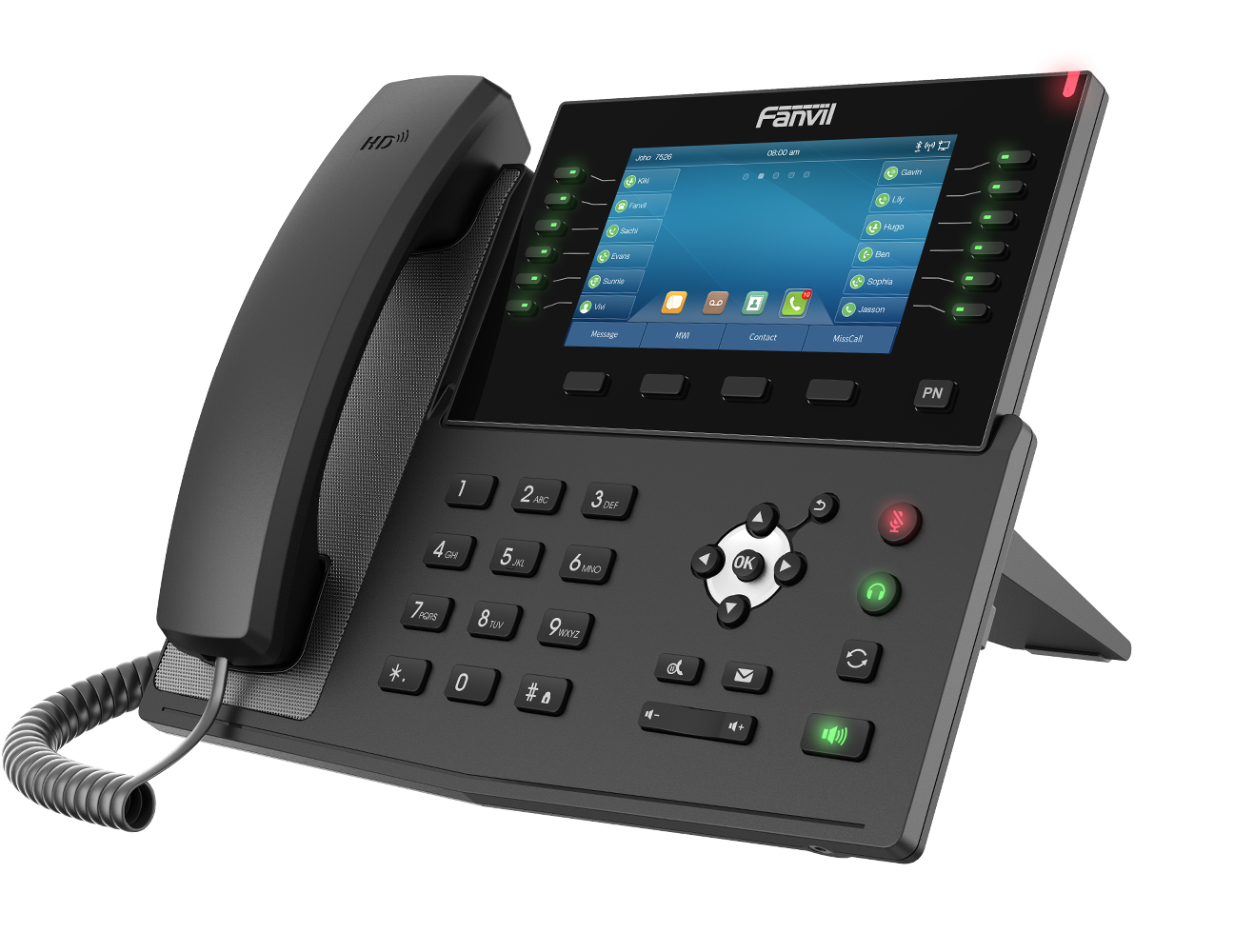

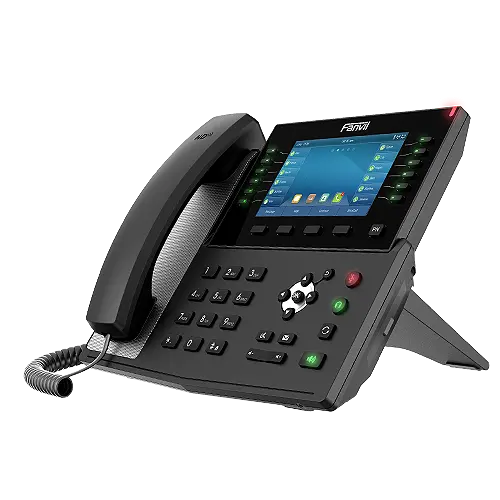

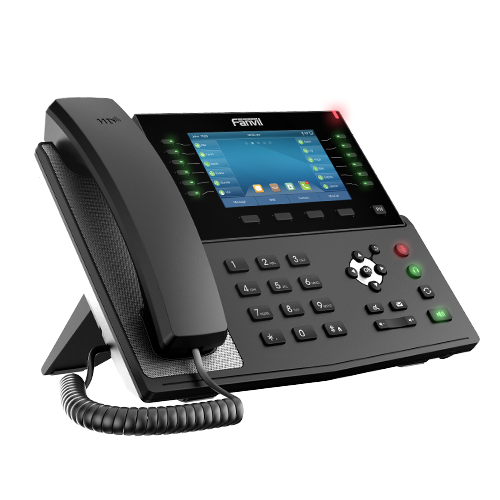

The Fanvil X7C is a high-end enterprise IP phone designed for business users needing immediate access to important information. Featuring a 5-inch high-resolution color screen, the phone supports 20 SIP lines and HD audio with Opus support. It also offers up to 60 DSS keys (12 physical) and built-in Bluetooth.
- 5-inch high-resolution color screen
- 20 SIP lines
- HD audio with Opus support
Product Highlights
The Fanvil X7C enterprise IP phone provides essential communication features for the modern business environment, including multiple SIP lines, high-definition audio, and flexible connectivity options.
Product Information
Standard Information
-
Brand: Fanvil
-
Manufacturer Part Number: X7C
Technical Specifications
-
Main Screen: 800X480 5-inch Color Screen
-
Side Screen: ×
-
Video Codec: H.264
-
Video Call: Only receive video from the calling side (1080p)
-
Camera: ×
-
DSS Keys: 60
-
SIP Lines: 20
-
Line Keys: 12
-
Local Phone Book: 2000
-
Call Log: 1000
-
Audio Conference: V2: 6-way conference
-
IPv6: √
-
HD Audio: √
-
Wideband Codec: G.722,Opus
-
Bluetooth: Built-in Bluetooth
-
Wi-Fi: Via USB Dongle
-
PoE: √
-
Network: 10/100/1000 Mbps
-
EHS Headset: √
-
Foot Stand: 40° and 50°
-
Display: 5" high-resolution color display
-
Audio: HD audio on speakerphone and handset
-
Adjustable Angles: Stand with 2 adjustable angles of 40 and 50 degrees
-
Ethernet Ports: Dual Gigabit ports, integrated PoE
-
Compatibility: Compatible with major platforms: 3CX, Avaya, Asterisk, Broadsoft, Metaswitch, Elastix etc.
-
HD Voice: Yes
-
Video Call Support: Yes
-
PoE Enabled: Yes
-
LCD Screen: 5 Inch Color LCD Screen
-
Handset/Hands-free/Headset Mode: Yes
-
Intelligent DSS Keys: Yes
-
Remote Phonebook (XML/LDAP): 2000 entries
-
Video call resolution: QCIF / CIF / VGA
-
HD Voice Microphone/Speaker: Handset/Hands-free, 0 ~ 7KHz Frequency Response
-
Wideband ADC/DAC: 16KHz Sampling
-
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729A/B, AMR, iLBC
-
Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
-
IP Mode: IPv4/IPv6/IPv4&IPv6
-
IP Configuration: Static / DHCP / PPPoE
-
Network Access Control: 802.1x
-
VPN: L2TP / OpenVPN
-
Main LCD: 5.0 inch (800x480) Color screen
-
Keypad: 43 keys
-
RJ9 Port: Handset x1, Headset x1
-
RJ45 Port: Network x1, PC x1 (Bridged to Network)
-
USB2.0 Port: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
-
DC Power Input: 5V/2A
-
Power Consumption (PoE): 2.6~ 9W
-
Power Consumption (Adapter): 2.4~8W
-
Working Temperature: 0~45℃
-
Working Humidity: 10~95%
-
Installation: Desktop Stand
