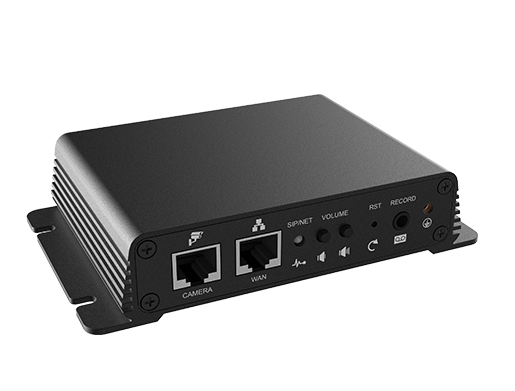

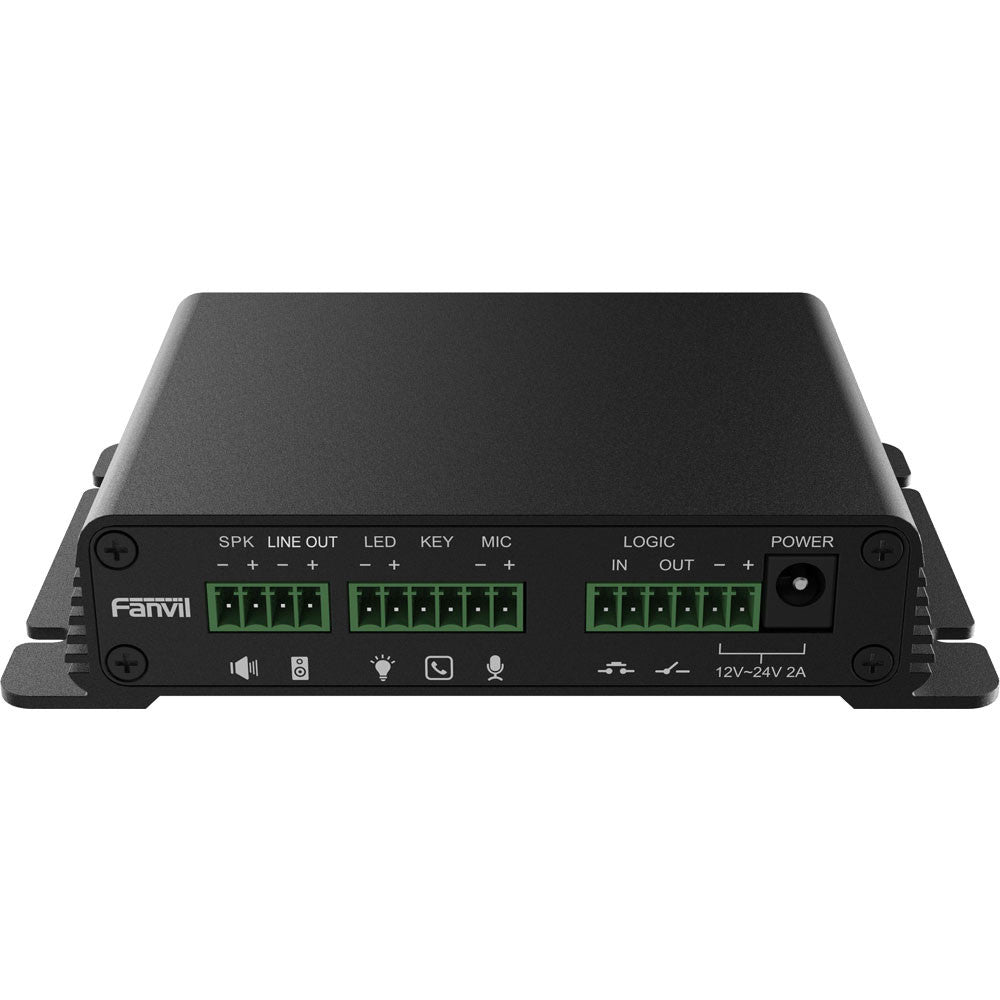

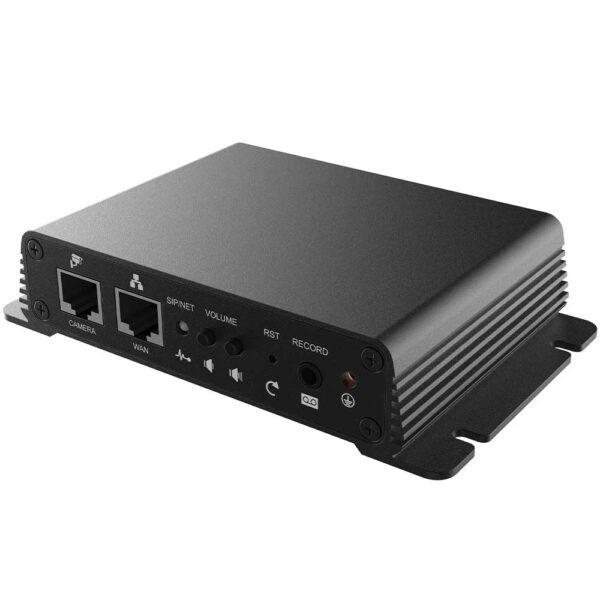

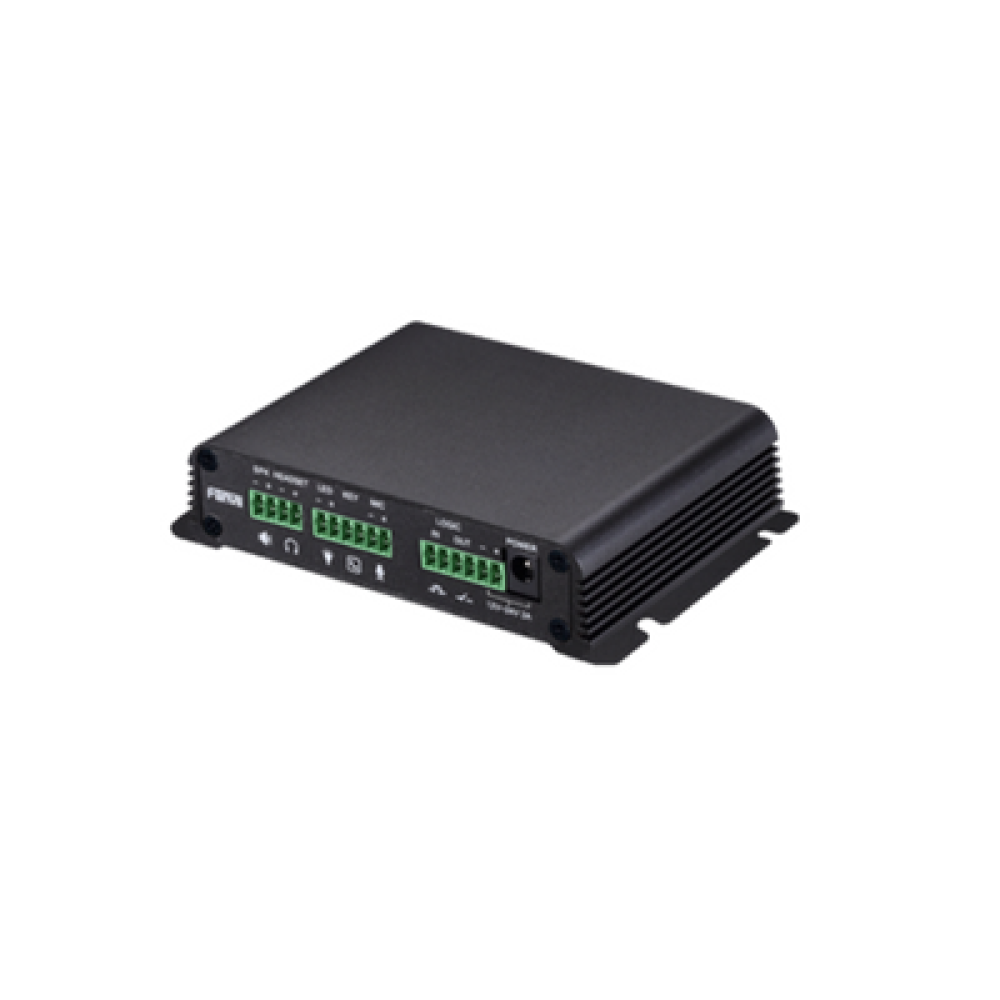

Fanvil PA2S sip paging gateway 30W

Product Description

The Fanvil PA2S is a SIP paging gateway utilizing the standard IP/RTP/RTSP protocol for media streaming. Integrating broadcast, recording, intercom, and security functions, it connects external devices for audio and video intercom, broadcast, and security triggers. Its compact size suits DIY applications across various integrated solutions. It supports a maximum 30W power amplifier.

• Supports broadcast, recording, intercom, and security features.
• Enables audio and video intercom functionality.
• Features integration with third-party systems and IP cameras.

Product Highlights

Ideal for versatile connectivity with external devices, delivering audio/video intercom, broadcast, and security triggers across various deployment scenarios.

Product Information

Standard Information

• Brand: Fanvil
• Manufacturer Part Number: PA2S

Technical Specifications

• SIP Line: 2
• Camera: Connect the camera interface of RJ45
• Standalone intercom-No Central Unit /Server Needed: √
• HD Audio(G.722): G.722 ,Opus
• Linkage with Third Party IP Camera: √
• Built-in Electric Relay: 1
• Access control: 2
• Audio Line-in/Line-out: √
• Power Supply PoE: √
• Power Supply 12V DC: 12V-24V 2A
• Wide Temperature Range: -30°C~70°C
• Power Amplifier: Maximum 30W
• Short Circuit Output: 1
• Short Circuit Input: 1
• Auto-Provisioning via DHCP/TR069/SIP PNP: √
• Integration with Third Party Systems: √
• MP3 broadcasting: √
• Ethernet Ports: 2x 10/100 RJ45
• PoE: Class 3
• SIP Lines: 2
• Physical: 10/100 Mbps Ethernet
• IP mode: IPv4 / IPv6 / IPv4&IPv6
• IP configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN: √
• LLDP: √
• QoS: √
• PROTOCOLS: SIP 2.0 over UDP / TCP / TLS RTP / RTCP / SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP / TFTP HTTP / HTTPS TR-069
• Narrowband codecs: G.711 A/U, G.729 A/B, iLBC, G.723, G.726-32K
• Wideband codecs: G.722, Opus
• Full-duplex hands-free speakerphone with AEC: √
• DTMF: In-band, Out-of-Band (RFC2833 / SIP INFO)
