Product Description

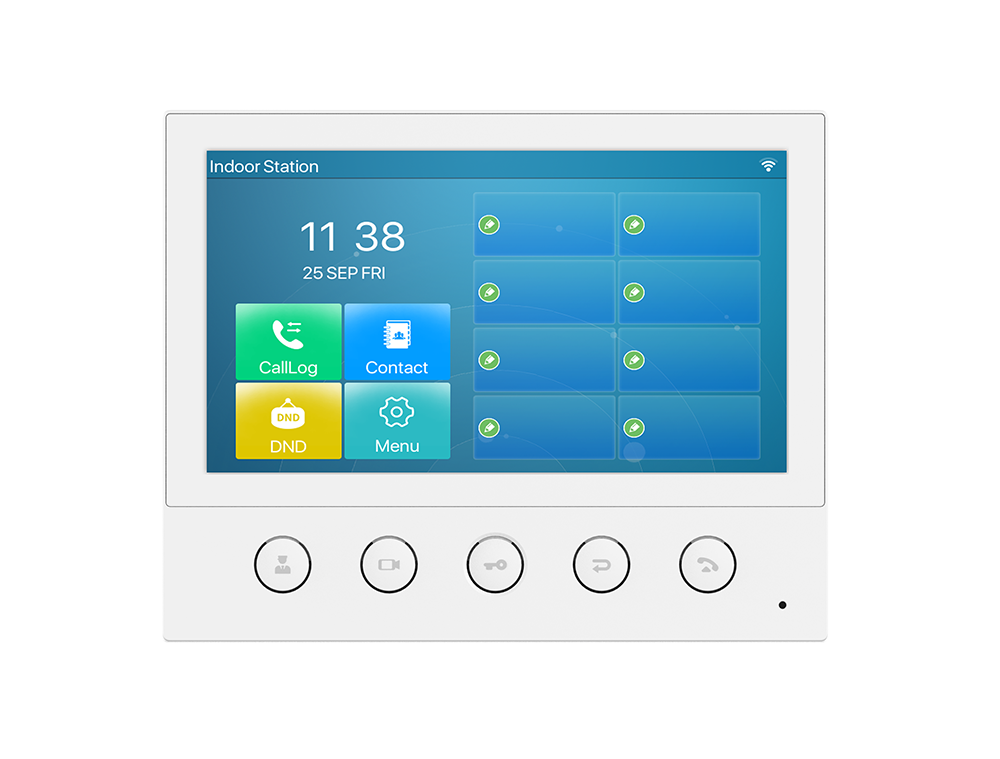

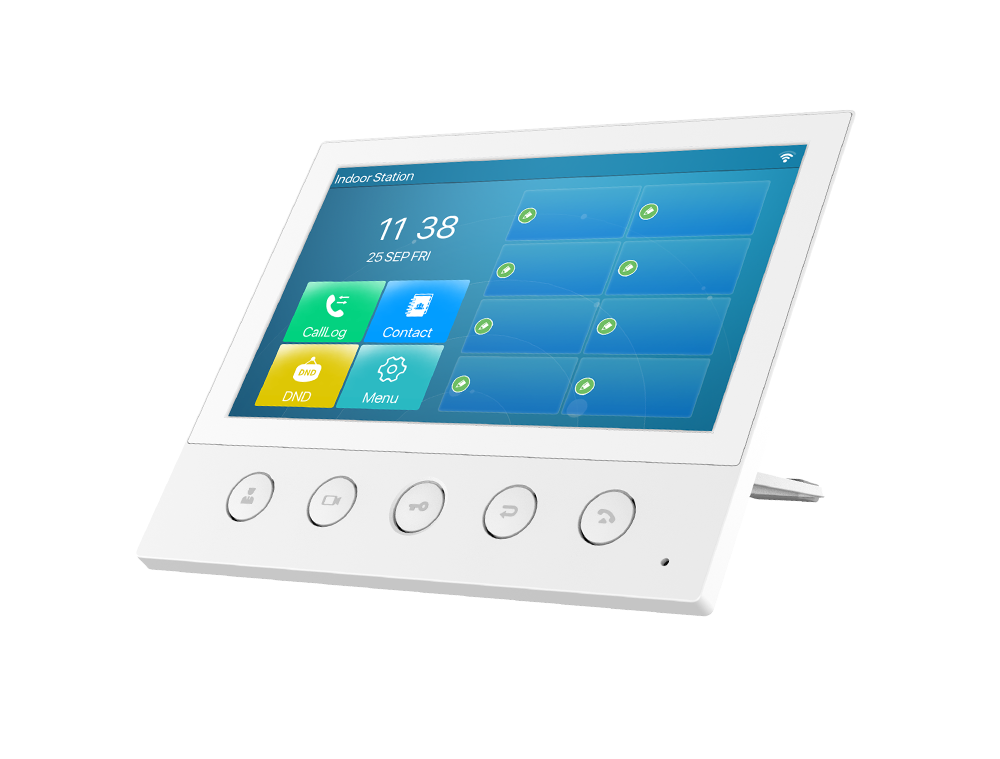

The Fanvil I53W is a 7-inch color touch screen SIP indoor station, equipped with 5 function buttons, suitable for various indoor applications. It facilitates remote access control for residences when used with door phones and intercoms. The I53W can also connect to alarms and other intelligent security devices through its interfaces.
- Features a 7-inch color touch screen.
- Includes 5 function buttons.
- Enables remote access control for residences.
Product Highlights
The Fanvil I53W SIP indoor station provides remote access and connects to alarms for enhanced security.
Product Information
Standard Information
-
Brand: Fanvil
-
Manufacturer Part Number: I53W
-
Country of Origin: Hong Kong
Technical Specifications
-
System: Linux
-
Screen: 7-inch 800×480 color screen
-
HD Audio: √
-
Wideband Codecs: G.722,Opus
-
Speaker Power: 2W
-
Video Resolution: 1080P
-
Video Codec: H.264
-
ONVIF: √
-
SIP Lines: 6
-
Bluetooth: ×
-
WiFi: Built-in 2.4G WiFi
-
Buttons: 5
-
Alarm Input Interfac: 8
-
Short Circuit Output: ×
-
Door Bell Interface: ×
-
RS-485 Interface: 1
-
TF Interface: ×
-
USB Port: ×
-
Network: 10/100 Mbps
-
PoE: √
-
Installation Mode: Wall-mounted and desktop installation methods
-
Brand: Fanvil
-
Series: I53W
-
Item model number: i53W
-
Voltage: 12 Volts
-
Function Keys: 5 physical function keys
-
Speaker: Built-in 1.5W speaker with AEC
-
Features: Support visual intercom and remote access control
-
Monitoring: Real-time monitor of the door phone and cameras
-

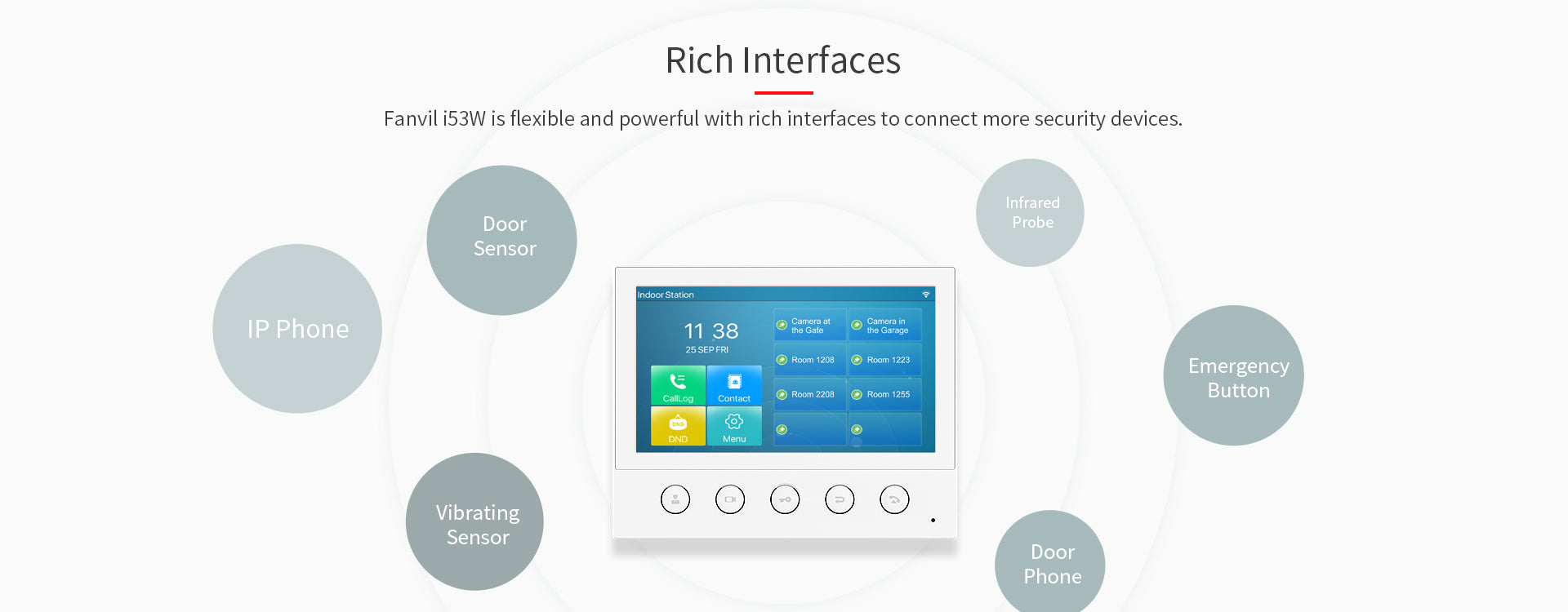

Alarm Input: 8 alarm input interfaces
-
Interfaces: 1 pair of RS-485 interfaces
-

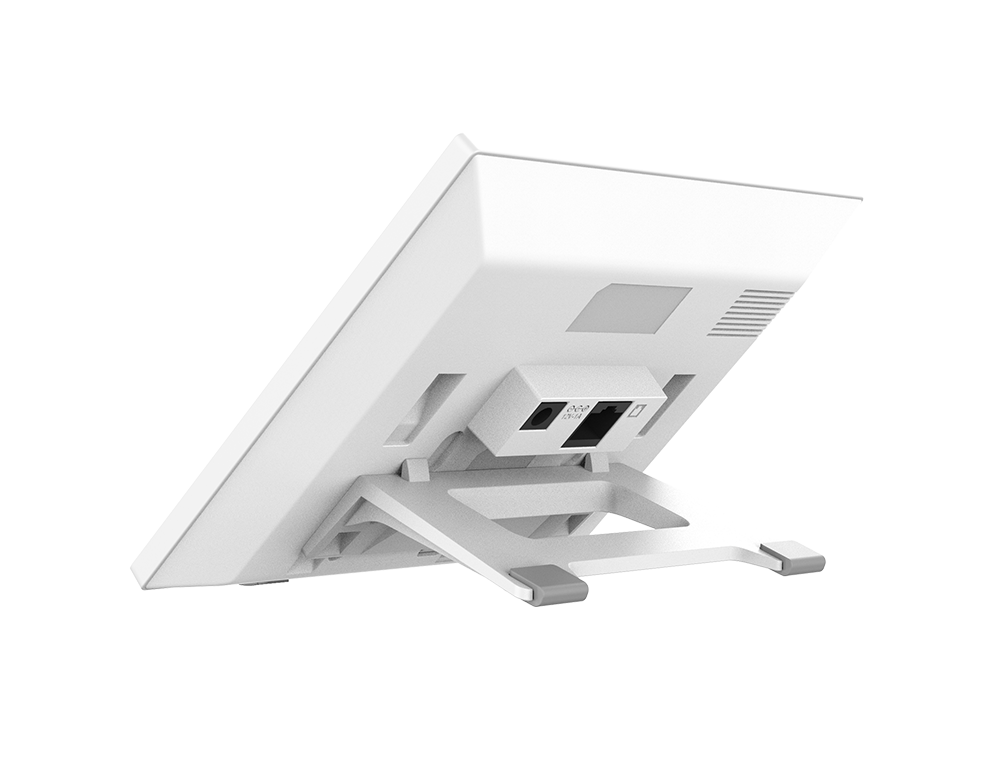

Installation: Wall-mounted and desktop installation methods (with the external desk stand)
-
Compatibility: Compatible with major platforms: 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc.
