Product Description

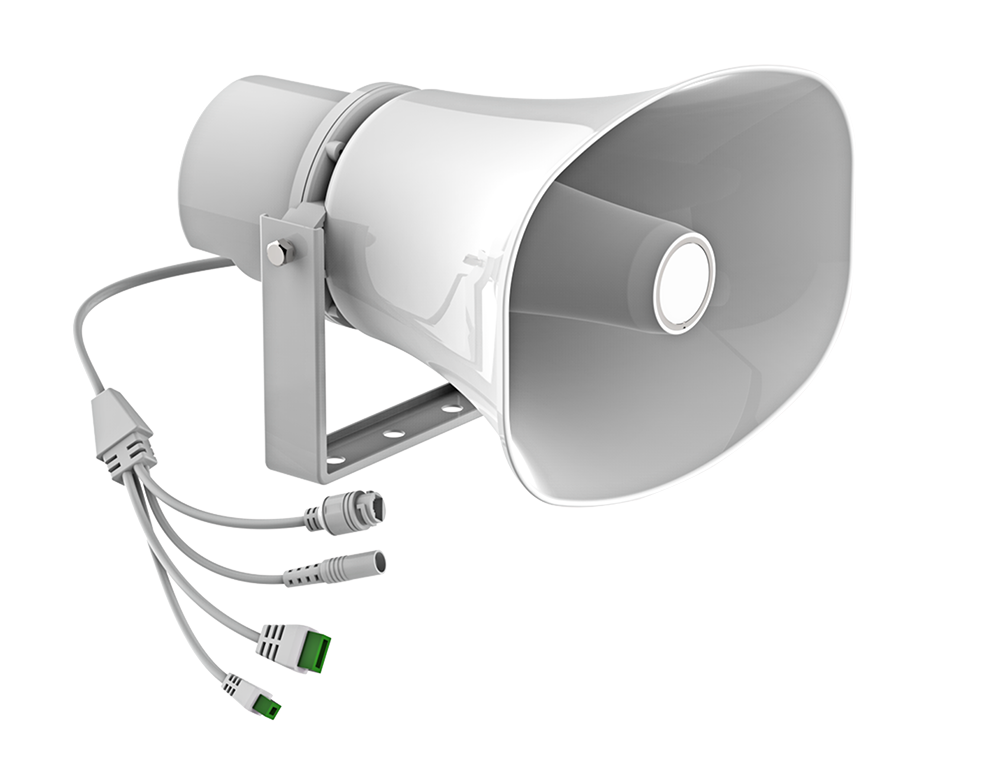

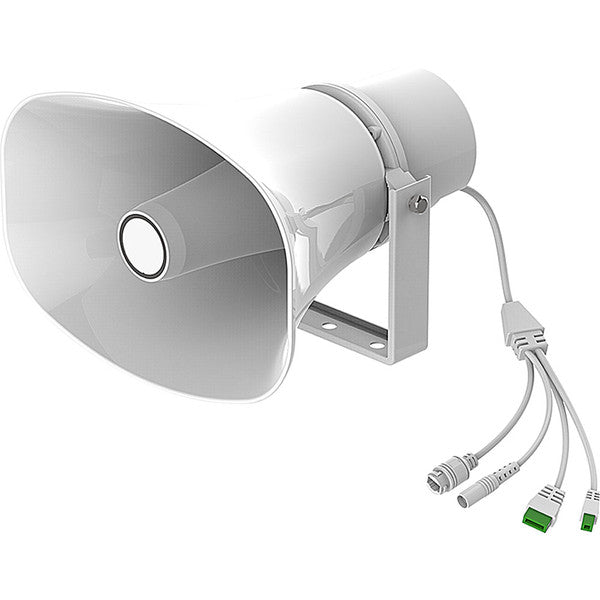

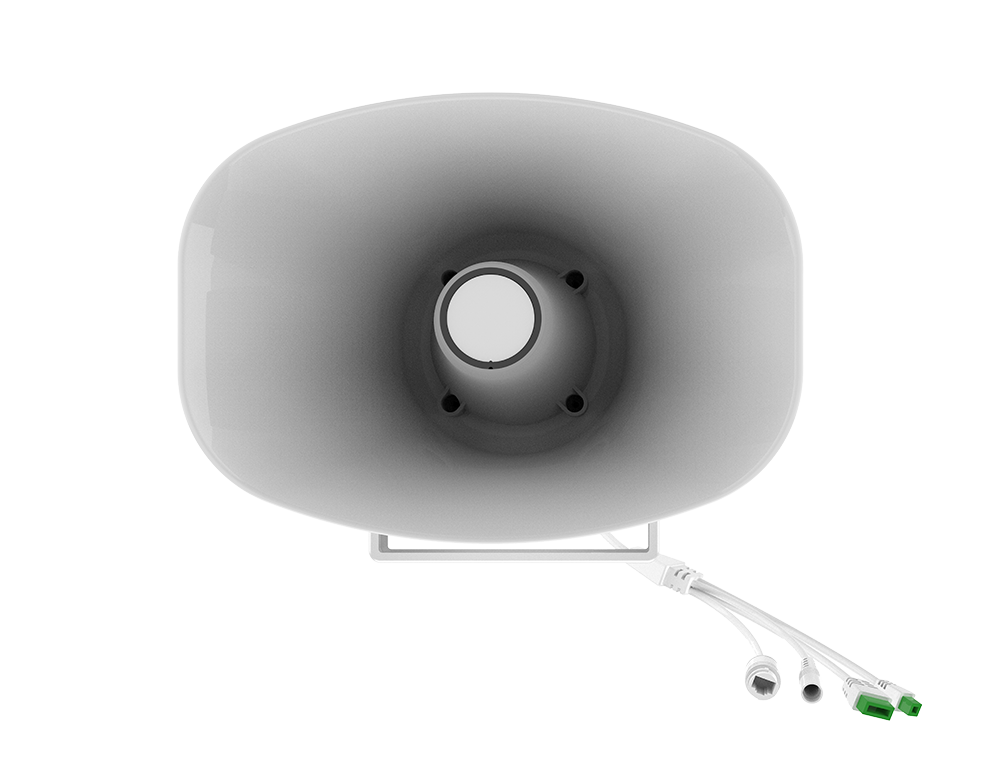

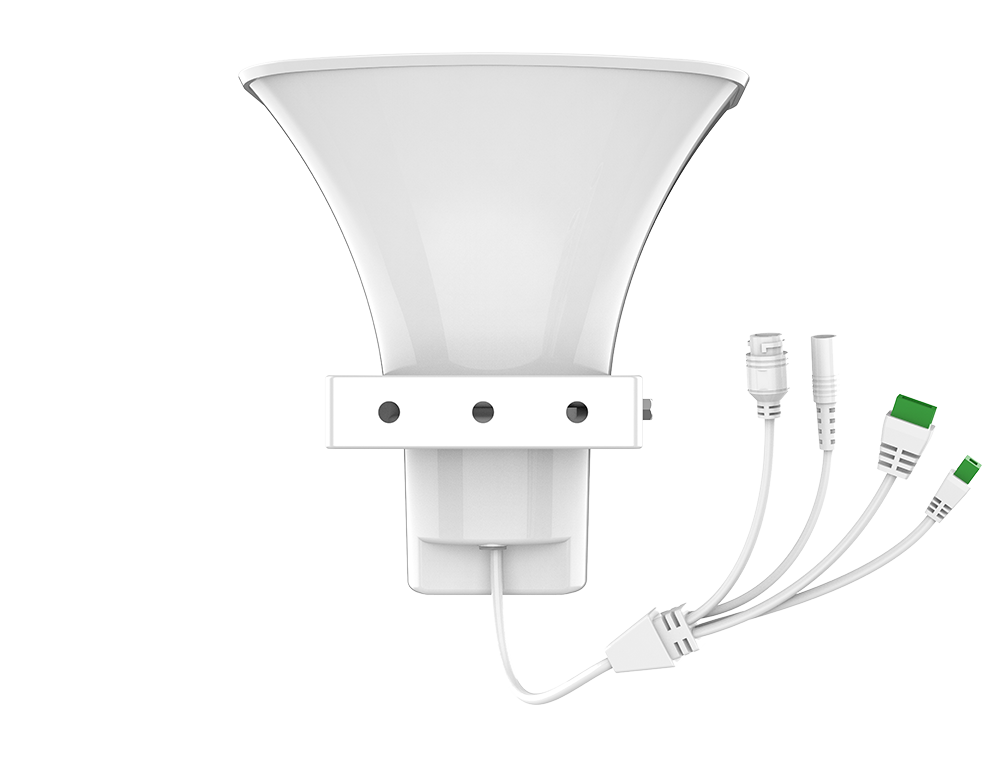

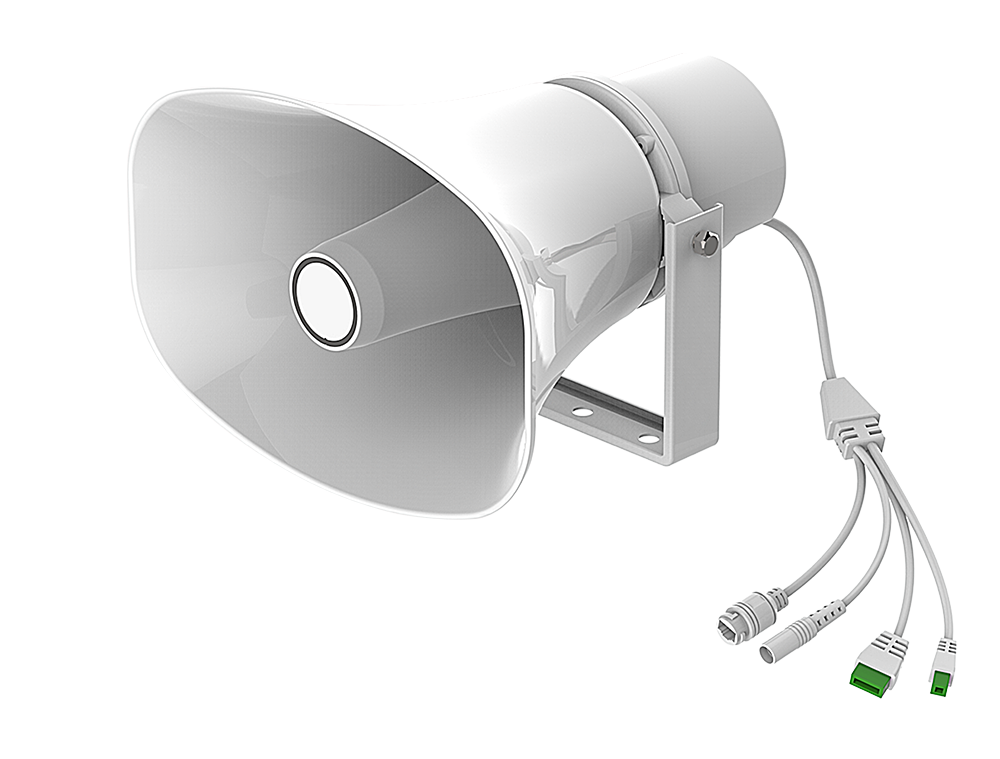

The Fanvil A233 horn speaker is a commercial-grade IP audio terminal that functions independently or integrates with unified communication, video surveillance, and access control systems. Its IP66 protection ensures waterproofing and dustproofing for outdoor environments. The A233 features a 30W speaker, delivering clear sound with high volume and wide dispersion.
- Functions independently or integrates with unified communication, surveillance, intercom, and access control systems.
- 30W speaker delivers clear, high-volume sound with wide dispersion.
- Waterproof and dustproof with an IP66 rating for reliable outdoor use.
Product Highlights
The Fanvil A233 IP horn speaker is designed for commercial and industrial settings, providing reliable audio in demanding environments.
Product Information
Standard Information
-
Brand: Fanvil
-
Manufacturer Part Number: A233
-
Country of Origin: China
Technical Specifications
-
Installation: U-bracket installation
-
Microphone: built-in
-
Speaker power: 15W PoE+; 30W DC24V
-
Frequency response: 350-7.5KHz
-
Sensitivity: 107dB±3dB 1M/1W
-
Audio filesstorage: 24MB
-
Support protocol: SIP/Onvif
-
Maximum SPL: 120dB（1m / 30W）
-
Short circuit input: 1
-
Short circuit output: 1
-
Power supply: PoE + / 24V DC 2A
-
Protection Level: IP66
-
Working temperature: -30℃~ 60℃
-
Brand: Fanvil
-
Speaker Maximum Output Power: 30 Watts
-
Connectivity Technology: Ethernet
-
Audio Output Mode: Mono
-
Mounting Type: Wall Mount
-
Model Name: A233
-
Speaker Type: Outdoor
-
Recommended Uses For Product: For Commercial or Industrial Settings, For Outdoor Use
-
Compatible Devices: Smartphone, Tablet, Laptop, Desktop, Projector, Television
-
Unit Count: 1.0 Count
-
Included Components: 1 x Speaker
-
Is Waterproof: true
-
Number of Items: 1
-
Speaker Size: 8 Inches
-
Specific Uses For Product: Outdoor/Commercial/Security Systems
-
Manufacturer: Fanvil
-
Shape: rectangular prism
-
Item model number: A233
-
Connectivity Type: IP/VoIP
-
Device Type: Paging Speaker
-
Indoor/Outdoor: Outdoor
-
Paging Speaker Type: Horn Speaker
-
Paging Speaker Features: Self-Amplified
-
VoIP Protocol: SIP
-
Speaker: 8-Ohm, 30W
-
Physical Connectors: Ethernet: 1x 10/100 RJ45 POE
-
Power: 1x DC 24V/2A input
-
I/O: short circuit input, short circuit output
-
Durability Rating: IP66
-
Operating Temperature Range: -22°F to 140°F
