Fantech RSK10 Backdraft Damper 10 Inch

Product Description

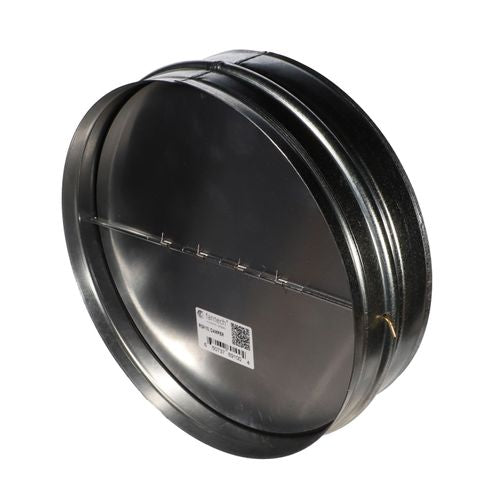

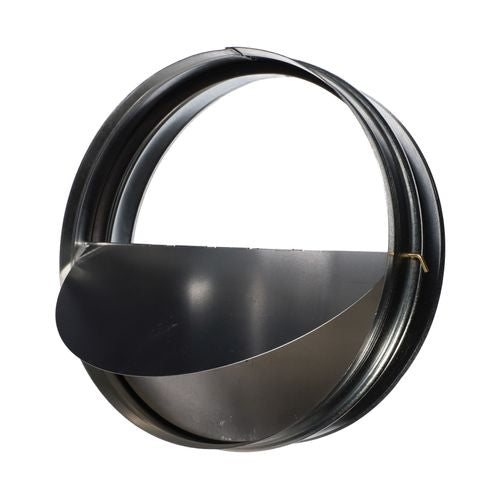

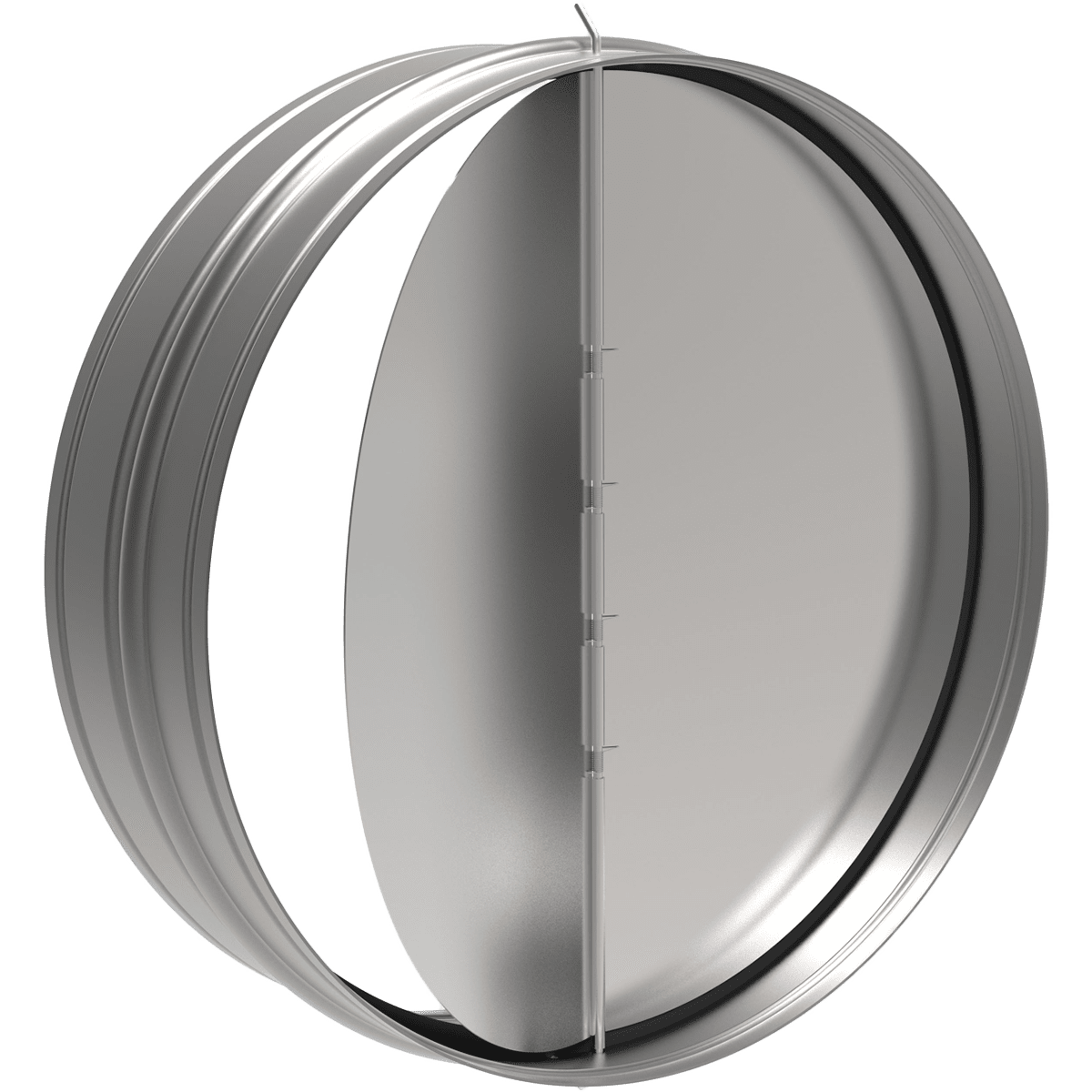

The Fantech RSK10 Backdraft Damper is a ten-inch circular duct damper made from galvanized steel. This product allows airflow in one direction while blocking reverse flow in HVAC systems for exhaust or intake. It features spring-loaded blades, ensuring effective backdraft prevention and can be installed both horizontally and vertically for convenience.

• Manufactured from durable galvanized steel.
• Designed with spring-loaded blades for reliable backdraft control.
• Versatile mounting options: horizontally or vertically.

Product Highlights

The Fantech RSK10 Backdraft Damper is ideal for HVAC systems that require efficient airflow management and backdraft prevention.

Product Information

Standard Information

• Type: Circular, Spring Loaded
• Duct Size: 10 Inch

Technical Specifications

• Material Thickness: 24 Gauge
• Blade Material: H14 Aluminum
• Inclusions/Features: 3/32 Inch Diameter Brass Central Rod, EPBM Synthetic Rubber Gasket
• Housing Material: Galvanized Steel
• Depth: 3.0 inches
• Duct Diameter: 10.0 inches
• Height: 10.0 inches
• Weight: 1.4 pounds
• Width: 10.0 inches
• Manufacturer's Warranty: 5-Year Limited Warranty
