Product Description

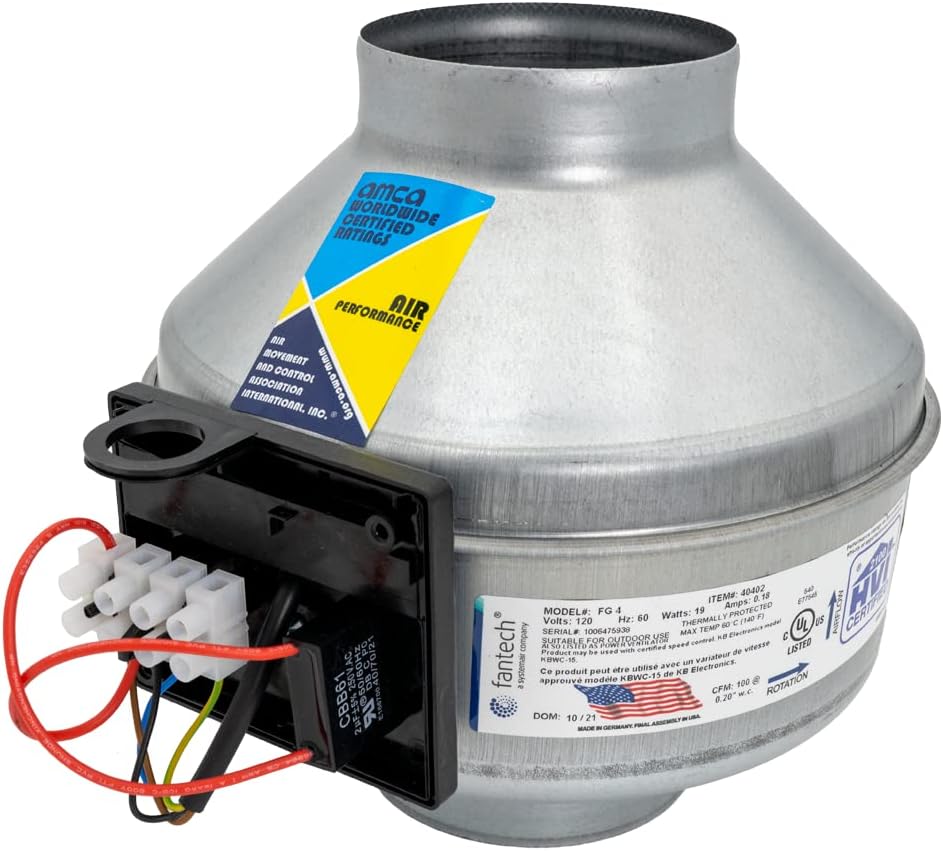

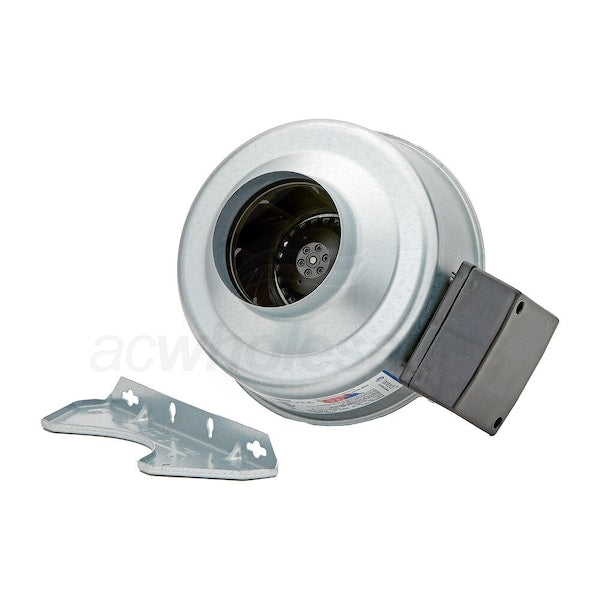

The Fantech FG4 is a centrifugal inline duct fan that delivers a maximum airflow of 135 CFM. Constructed with galvanized steel, it ensures durability and peak performance in ventilation applications. This fan fits a four-inch duct and operates at 120 volts, making it suitable for various setups.
- Maximum airflow of 135 CFM.
- Thermal overload protection.
- Features a backward curved impeller.
Product Highlights
This inline fan is designed to be installed directly into ductwork, providing efficient airflow while minimizing noise. It is suitable for use in both indoor and outdoor applications, thanks to its durable housing.
Product Information
Standard Information
Technical Specifications
-
Voltage: 120 Volts
-
Maximum Air Flow: 135 CFM
-
Duct Diameter: 4 Inches
-
Housing Material: Galvanized Steel
-
Current Draw: 0.19 Amps
-
Motor Speed: 2950 RPM
-
Maximum Inlet Air Temperature: 140 Degrees Fahrenheit
-
Dimensions: 8 1/2 Inches diameter, 10 1/2 Inches height
