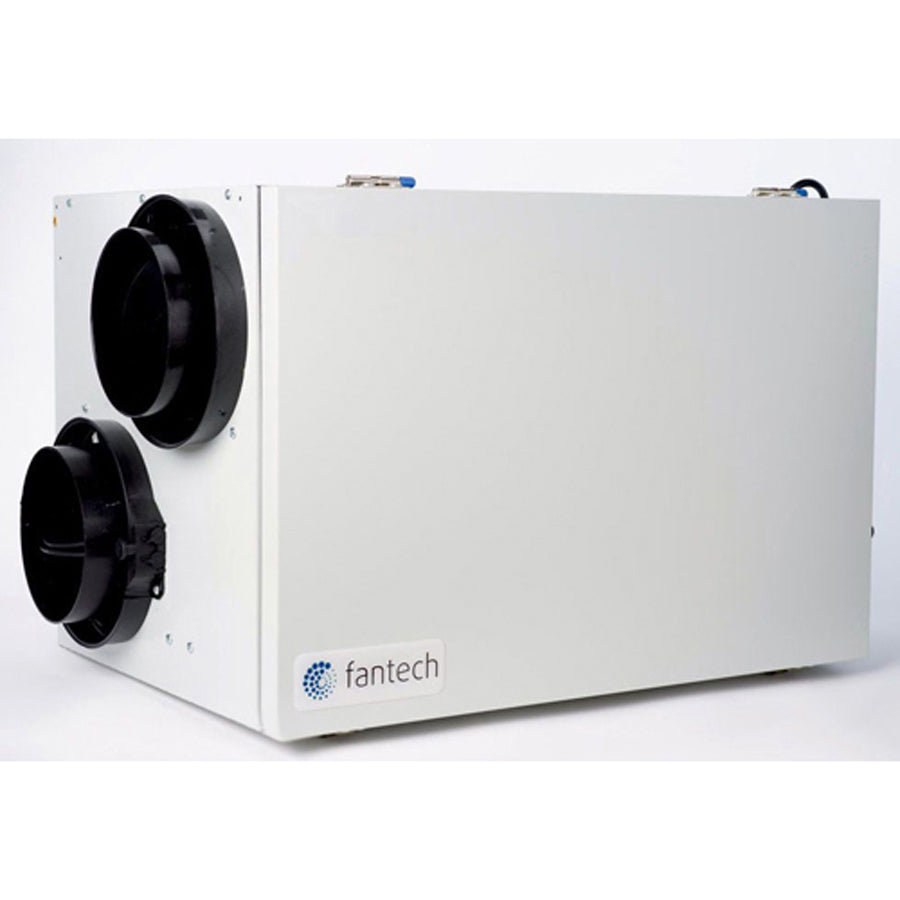

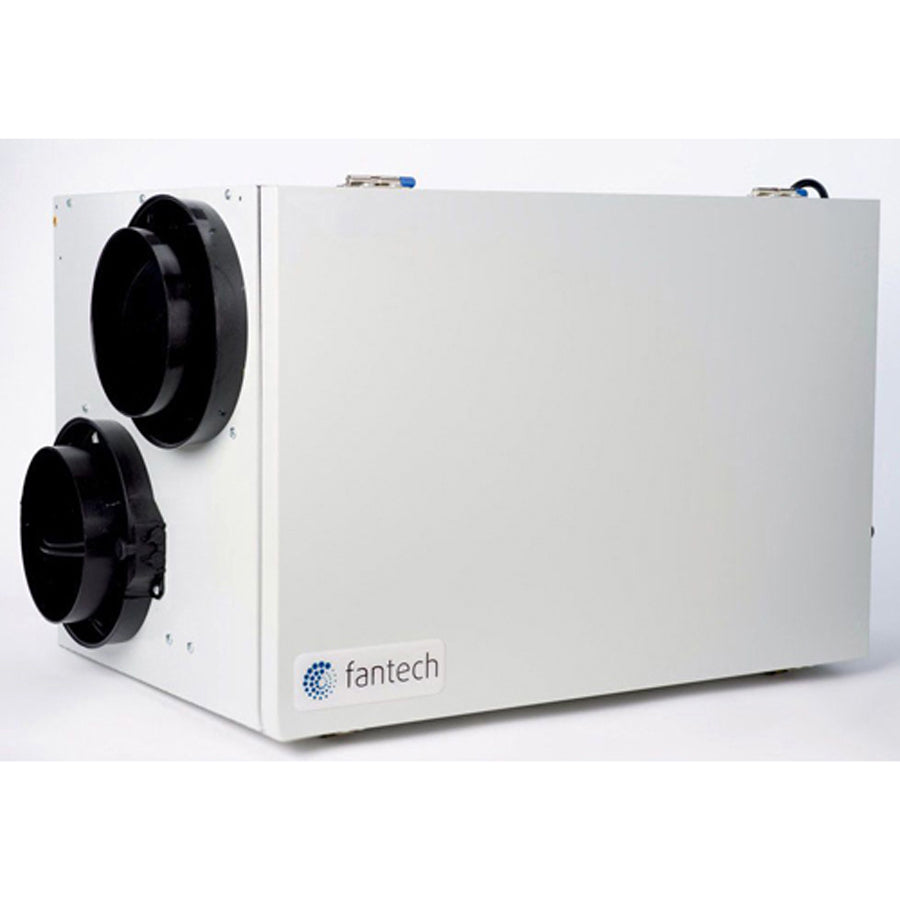

Fantech 99213 Fresh Air Appliance 159 Cfm Side Duct

Product Description

The FANTECH 99213 is a fresh air appliance designed to introduce controlled outdoor ventilation into residential and light-commercial HVAC systems. Rated at 159 CFM, it operates on 120 VAC, 60 Hz, single-phase power at 1.4 amps, making it compatible with standard household electrical service. The unit measures 23.75 inches x 23.75 inches x 16.25 inches and connects to ductwork through a side port, allowing flexible placement within a mechanical room or utility space. Licensed HVAC technicians install this unit as part of a balanced or supply ventilation strategy.

The FANTECH 99213 is suited for residential ventilation applications where consistent fresh air delivery is required. Its side duct connection simplifies integration into existing duct systems, and it is compatible with Fantech low-voltage controls, allowing it to tie into standard thermostat or ventilation control wiring. Typical installations include new construction and retrofit projects where code-required fresh air ventilation must be added to forced-air systems.

Key Features

• 159 CFM airflow rating for consistent fresh air delivery
• Side port duct connection for flexible installation positioning
• 120 VAC, 60 Hz, single-phase operation at 1.4 amps
• Compatible with Fantech low-voltage ventilation controls
• Compact footprint at 23.75 inches x 23.75 inches x 16.25 inches

Compatibility

Compatible with Fantech low-voltage controls. Designed as an OEM-style fresh air appliance for use in residential and light-commercial forced-air ventilation systems with side duct connections.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and ASHRAE 62.2 ventilation requirements. Disconnect and lock out all power before servicing or making electrical connections. Ensure ductwork is properly sealed at all side port connections to prevent air leakage and maintain rated CFM performance. Low-voltage control wiring should comply with applicable NEC requirements for Class 2 circuits.

Technical Specifications

• Airflow: 159 CFM
• Voltage: 120 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Current Draw: 1.4 amps
• Width: 23.75 inches
• Depth: 23.75 inches
• Height: 16.25 inches
• Duct Connection: Side Port

Standard Information

• Brand: FANTECH
• Manufacturer Part Number: 99213
