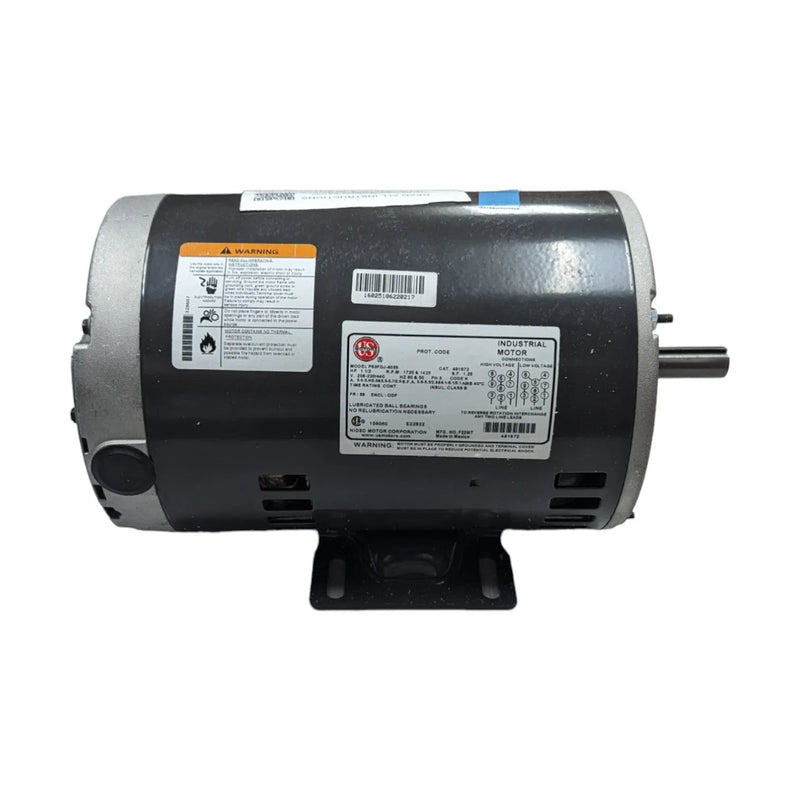

Fantech 49917 Belt Drive Blower Motor 1.5 Hp

Product Description

The FANTECH 49917 is a belt drive blower motor designed for commercial and residential ventilation and air handling applications. Rated at 1.5 horsepower with dual-speed operation at 1425 and 1725 RPM, this motor supports both 50 Hz and 60 Hz systems and accepts a wide voltage input of 208-220 volts or 440 volts. It is a direct replacement-style unit installed by licensed HVAC technicians in belt-driven air handler and blower assemblies where the motor connects to the blower wheel via a drive belt and pulley system.

This motor is suited for belt drive blower assemblies found in commercial rooftop units, large air handlers, and industrial ventilation systems. The dual-voltage configuration makes it adaptable to a range of electrical service conditions, and the dual-speed rating allows installation flexibility depending on the driven equipment's airflow requirements. HVAC technicians select this motor when servicing or replacing failed OEM belt drive motors in similarly rated blower systems.

Key Features

• 1.5 HP output for medium-duty belt drive blower applications
• Dual-speed rated at 1425 RPM (50 Hz) and 1725 RPM (60 Hz)
• Wide voltage input: 208-220 volts single or 440 volts for compatibility with varied electrical services
• Dual-frequency rated at 50 Hz and 60 Hz
• Belt drive design for use with standard pulley and sheave arrangements

Compatibility

Designed as an OEM-style replacement for belt drive blower motors in commercial and residential air handling equipment requiring a 1.5 HP, 1425/1725 RPM, 208-220/440 volt motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handling unit before removing or installing the motor. Verify pulley alignment, belt tension, and sheave condition before returning the unit to service. Follow applicable local codes and the equipment manufacturer's wiring diagram when connecting motor leads.

Technical Specifications

• Horsepower: 1.5 HP
• Speed: 1425 RPM (50 Hz) / 1725 RPM (60 Hz)
• Voltage: 208-220 volts / 440 volts
• Frequency: 50/60 Hz
• Drive Type: Belt Drive

Standard Information

• Brand: FANTECH
• Manufacturer Part Number: 49917
