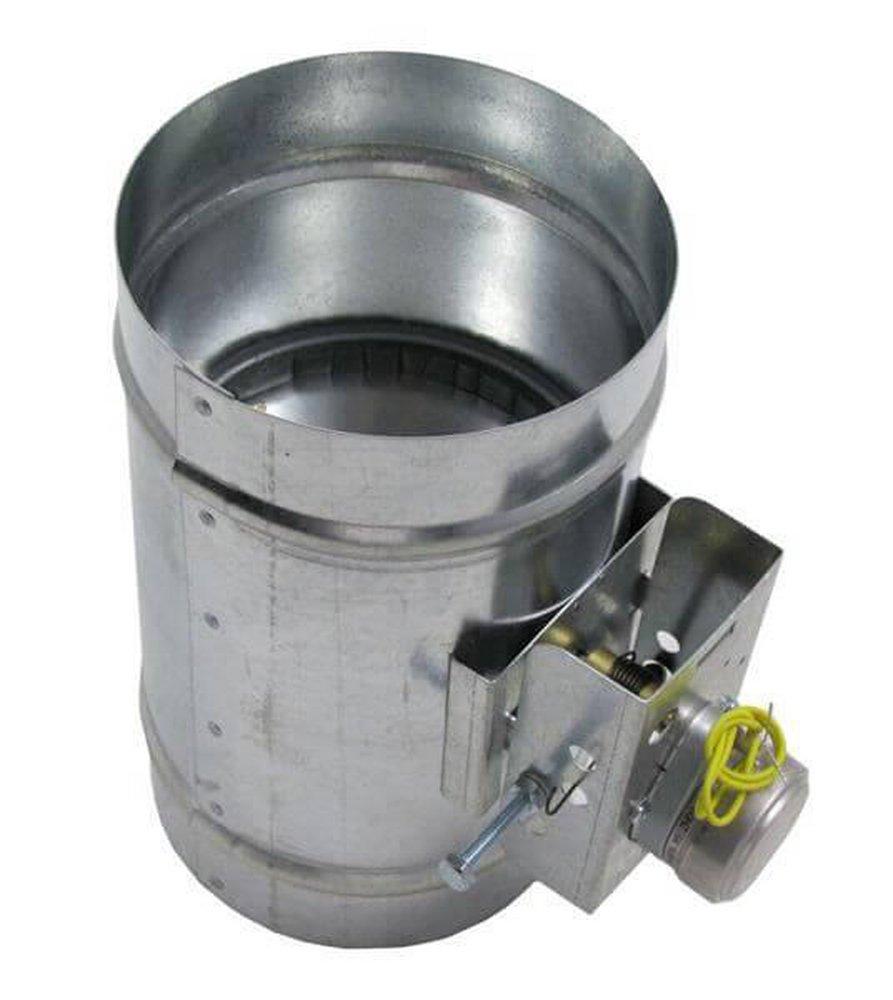

FAMCO ADC8120ES 10 x 8 in. Spring Return Round Damper

Product Description

The FAMCO ADC8120ES is a 10 x 8 inch spring return round damper designed for effective air distribution in heating and cooling systems. Constructed from 28 gauge galvanized steel, this damper is engineered for durability and reliable operation.

• 8-inch size for versatile use
• Power open with spring return function
• 120 volt motor option available

Product Highlights

This damper features a foam seal option and includes an end switch with certain models, allowing additional appliances to operate once the damper is fully open or closed. Its floating motor mount provides proper alignment to reduce the risk of binding. The design also includes a flow control adjustment on units without an end switch, allowing the damper blade to be restricted as needed.

Product Information

Standard Information

• Brand: FAMCO
• MPN: ADC8120ES

Technical Specifications

• Size: 10 x 8 inches
• Material: 28 gauge galvanized steel
• Operating Voltage: Available in 24 or 120 volts
• Temperature Rating: -20 to 160 degrees Fahrenheit
• Weight: 15 pounds
• Functionality: Normally closed with power open and spring return action
• End Switch: Optional
