Falltech 72706SB5 DuraTech Mini Class 1 Personal SRL-P 6 ft Single-Leg

Brand: FALLTECH
SKU: 72706SB5
Availability: In Stock

Ships same day if ordered by 12 pm
$283.67
$283.67
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

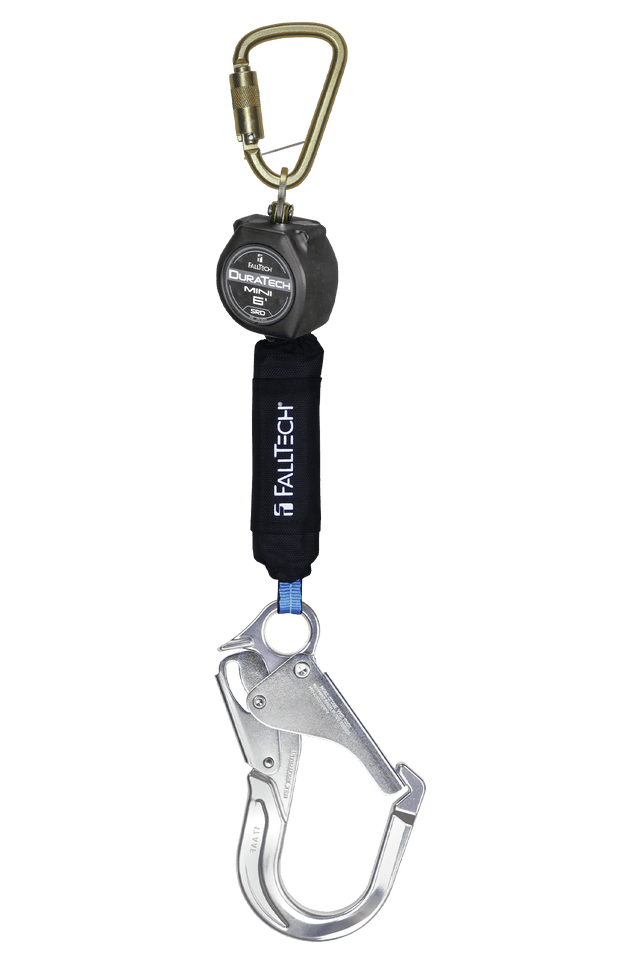

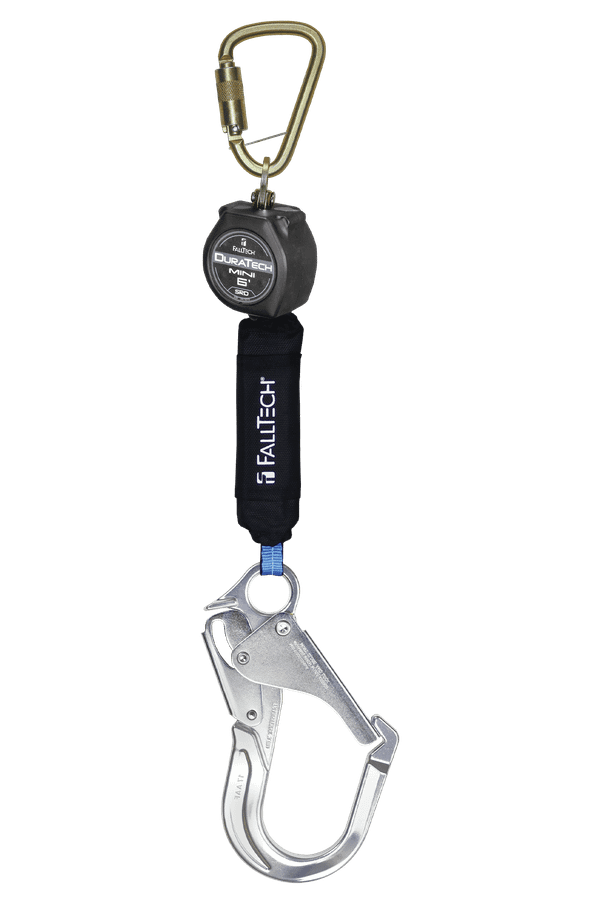

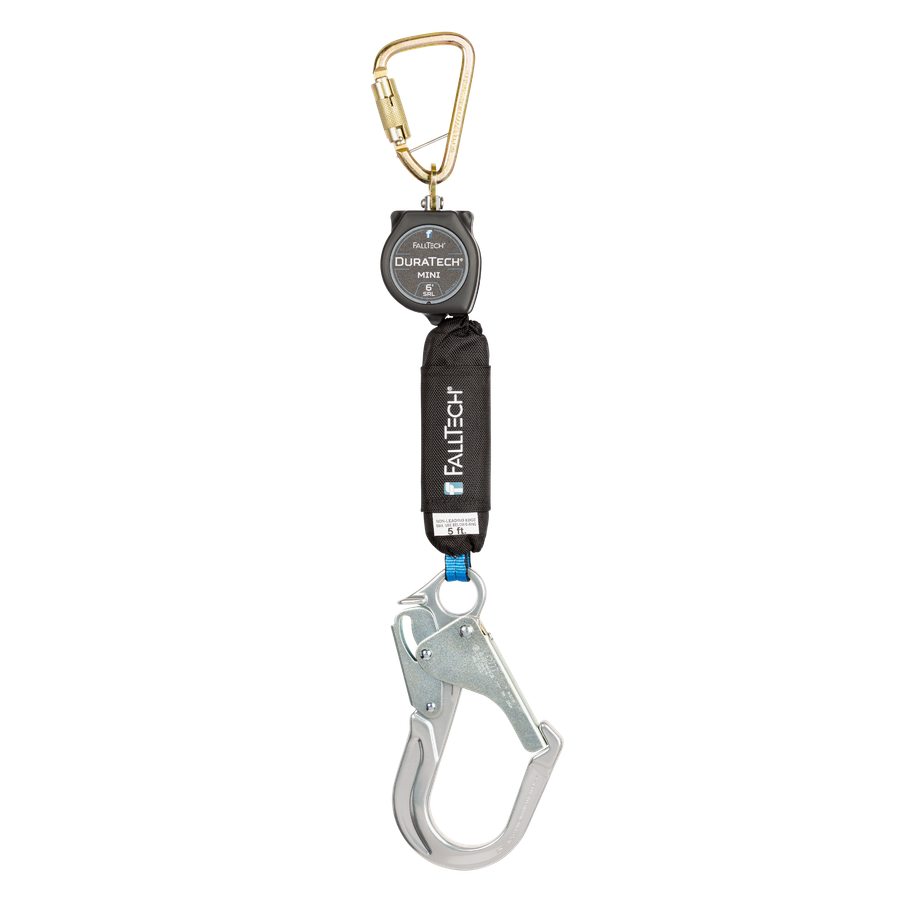

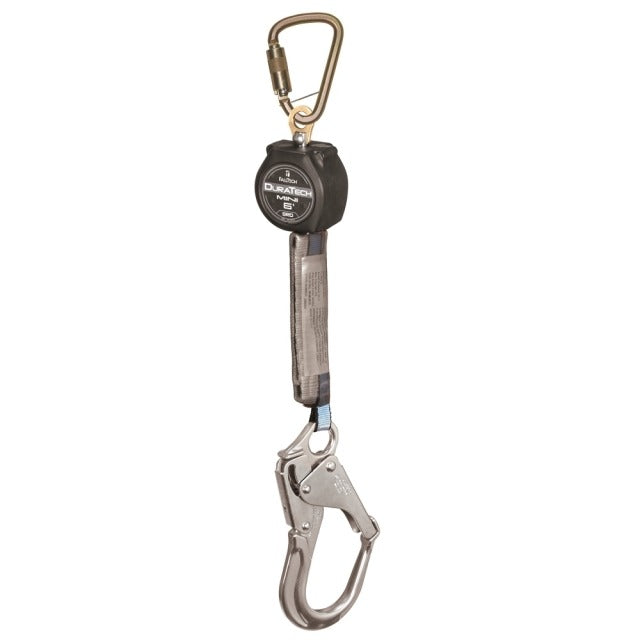

Falltech 72706SB5 is a 6-foot DuraTech Mini self-retracting lifeline (SRL-P) configured as a single-leg web SRD for personal fall arrest. The unit uses a Dyneema/polyester web lifeline, internal locking pawls, and a ViewPack external polyester energy absorber housed in impact-resistant nylon. It includes an aluminum alloy rebar hook anchorage connector and an alloy steel dorsal connecting carabiner, and is rated for user weights 130 to 310 lb with 3,600 lb static strength.

  • 6 ft Dyneema/polyester web lifeline with ViewPack external energy absorber and internal locking pawls
  • Aluminum alloy rebar hook anchorage connector and included alloy steel dorsal connecting carabiner; plated swivel-eye to reduce lifeline twisting
  • ANSI Z359.14 Class 1 SRL-P; static strength 3,600 lb; user capacity 130–310 lb; average arrest force ~900 lb

Product Highlights

6 ft single-leg SRL-P with Dyneema webbing, external energy absorber, aluminum rebar hook, 3,600 lb static strength, ANSI/OSHA/CSA compliant

Product Information

Standard Information

  • Brand: FALLTECH
  • Manufacturer Part Number: 72706SB5
  • Country of Origin: Unknown
Technical Specifications
Brand
Falltech
MPN
72706SB5
Product name
6 ft web mini SRD single-leg
Length
6 ft (lifeline travel)
Type
Single-leg web self-retracting device (SRL-P)
Webbing
Dyneema/polyester blend; 4,500 lb minimum tensile
Energy absorber
Polyester tear-away (ViewPack external energy absorber)
Housing
Impact-resistant nylon (Nylon 6/6)
Anchorage connector
Aluminum alloy rebar hook; 5,000 lb minimum minimum static strength (typical for hooks)
Dorsal connector
Alloy steel dorsal connecting carabiner; plated swivel-eye to reduce lifeline twisting
Static strength
3,600 lb minimum
Average arrest force
Approximately 900 lb (typical average arrest force)
Maximum arrest force
Listed as 1,800 lb (peak/maximum - verify with manufacturer for exact peak values)
Maximum arrest distance
42 inches (typical total fall arrest distance including deceleration/extension)
User capacity (ANSI/OSHA)
130 to 310 lb
ANSI SRL class/type
Class 1 SRL-P (ANSI Z359.14)
Standards / Compliance
ANSI Z359.14-2021; OSHA 1926.502 and 1910.66; CSA Z259.2.2-2017
Weight
4.1 lbs
Connector gate strength
3,600 lb minimum (connector minimum strength typical)
Tensile strength
Minimum 3,000 to 4,500 lb (webbing and connector ratings provided)
SRD housing components
Main shaft alloy steel; pawls stainless steel; spring rolled carbon steel
