Product Description

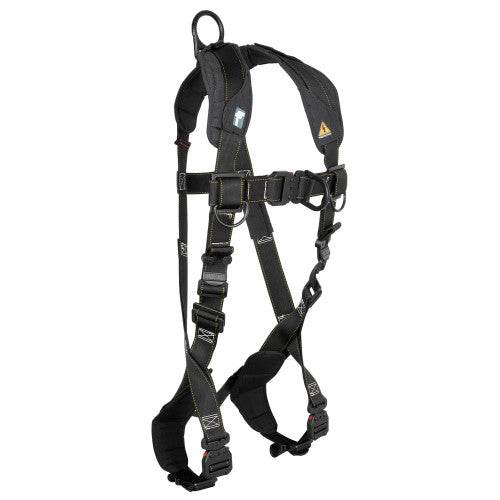

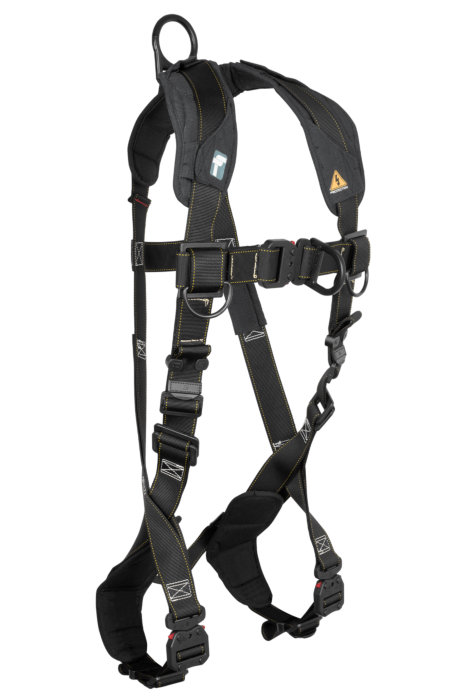

The FALLTECH 7054FD-M Arc Flash Nylon 2D Climbing Non-belted Full Body Harness features quick-connect adjustments for ease of use. Designed for working at height, this harness meets ANSI Z359.11-2014 and ASTM F887 standards. It includes a wishbone-shaped shoulder yoke for comfort and overmolded alloy steel D-rings for strength. The nylon webbing provides arc flash resistance.
- Wishbone shaped shoulder yoke reduces neck irritation and improves comfort
- Features overmolded alloy steel dorsal and sternal D-rings, quick-connect buckle leg, chest, belt and torso adjusters
- Nylon webbing throughout shoulders, torso, and legs provides arc flash resistance
Product Highlights
Arc flash resistant full body harness with quick-connect adjustments and comfortable design.
Product Information
Standard Information
-
Brand: FALLTECH
-
Manufacturer Part Number: 7054FD-M
Technical Specifications
-
Webbing: Nylon, 5,000 lb min. static strength
-
D-rings: Overmolded alloy steel, 5,000 lb min. static strength
-
Buckles and Adjusters: Overmolded alloy steel, 3,372 lb min. static strength
-
Static Strength: 3,600 lb min.
-
ANSI User Capacity: 130 to 310 lb max.
-
OSHA User Capacity: 130 to 425 lb max.
-
Manufacturer: FallTech
-
Manufacturer Part Number(s): 7054FDM
-
Features: Harness - Arc Flash
-
Prop 65: No
-
Family Group: Arc Flash
-
Product Type: Climbing Non-Belted
-
Approval Standard 1: ANSI Z359.11-2014
-
Approval Standard 2: ASTM F887
-
Approval Standard 3: OSHA 1926.502 and 1910.66
-
Category: Full Body Harnesses
-
Sub Category: Arc Flash
-
Size: Medium
-
Type: 2D
-
Model: Arc Flash
-
Side D-Rings: No
-
Front D-Ring: Yes
-
Hardware: Overmolded Steel (Arc Rated)
