Falk 0333090 FAL Straight Rough Stock Bore Grid Coupling Hub 1150T

Product Description

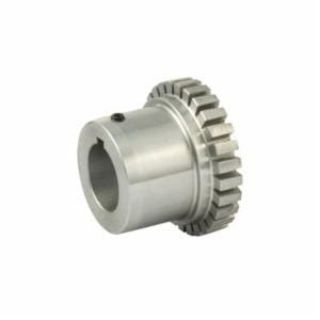

The Falk 0333090 FAL is a straight rough stock bore grid coupling hub. It is designed for use with Falk Steelflex type T10 and T20 close coupled grid couplings. This hub supports bore diameters ranging from four and one-eighth to eight inches.

• Constructed from durable steel material.
• Features a hub diameter of ten point six inches and a hub length of seven point two inches.
• Operates at a maximum speed of one thousand five hundred to two thousand rpm.

Product Highlights

This coupling hub is part of the T-Hub design utilized in various close coupled couplings. It supports custom boring needs and is suitable for a range of industrial applications.

Product Information

Standard Information

• Brand: Falk
• Manufacturer: Rexnord

Technical Specifications

• Material: Steel
• Hub Length: 7.2 in
• Hub Diameter: 10.6 in
• Bore Diameter: 4-1/8 to 8 in
• Coupling Size: 1150T
• Maximum Speed: 1500/2000 rpm
• Length Through Bore: 4.21 in
