Falcon T581PDAN626 T Series Storeroom Lever Lock

Product Description

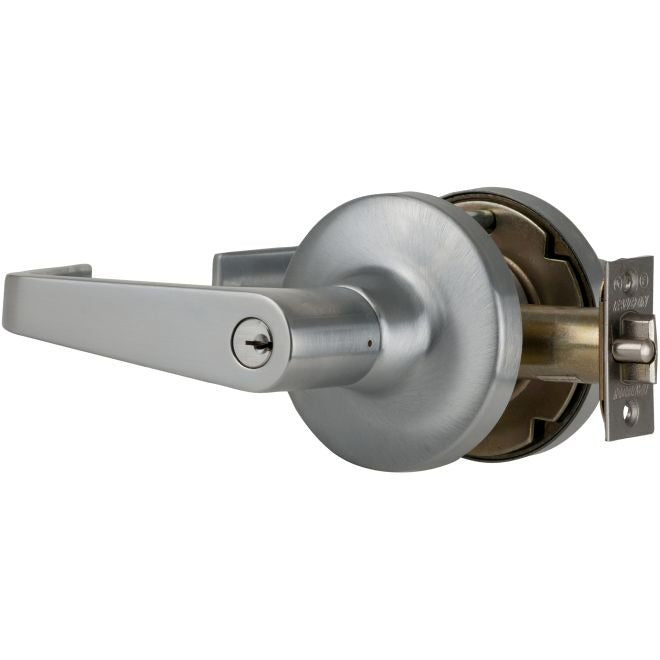

The FALCON T581PDAN626 is a T Series storeroom lever lock featuring the Dane lever trim in a satin chrome finish. It is designed for storeroom function, meaning the lever is always locked from the outside and free-egress is provided from the inside at all times. The lock ships with a C keyway keyed-different cylinder, a 23981145 latch, and a 5164 strike. The cylindrical chassis accepts interchangeable cores, allowing a facility manager or locksmith to rekey the lock by pulling and replacing the core without disassembling the hardware. Sold as an individual unit.

This lock is suited for commercial and institutional interior doors where controlled access to storage rooms, utility closets, and similar restricted spaces is required. The storeroom function is commonly specified in office buildings, schools, hospitals, and light industrial facilities. The satin chrome finish coordinates with standard commercial door hardware schedules. Installation is performed by a licensed locksmith or qualified door hardware installer working to the project hardware schedule and applicable building codes.

Key Features

• Storeroom function: outside lever is always locked, inside lever provides free egress at all times
• Dane lever design in satin chrome finish for standard commercial aesthetics
• C keyway keyed-different cylinder included
• Interchangeable core design allows fast rekeying without disassembling the lockset
• Includes 23981145 latch and 5164 strike
• Sold individually; case quantity of 10 available

Compatibility

Designed as an OEM-style cylindrical lever lock for commercial doors prepared to standard ANSI cylindrical bore specifications. Specific cross-compatible door preparations or frame types were not stated in the product data; verify the door prep and backset requirements against the project hardware schedule before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial cylindrical locksets. Verify the door prep, backset dimension, and handing before installation. Ensure the door is held open or the latch is retracted manually before final strike alignment to avoid misalignment under load. Consult applicable local building codes and ANSI A156.2 standards for commercial lever lock requirements.
