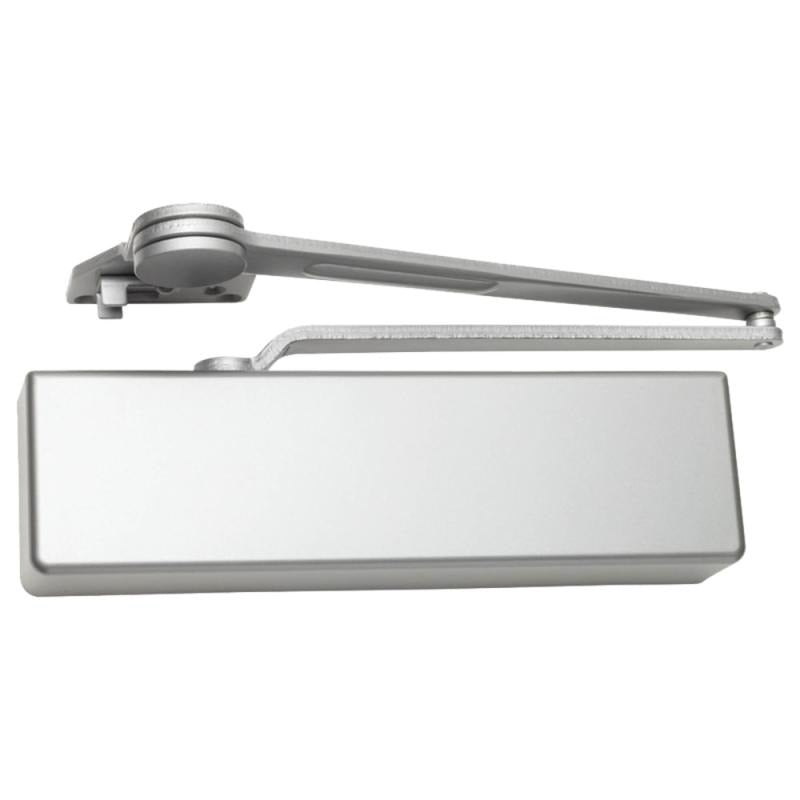

Falcon SC71A DS AL Door Closer with Dead Stop Parallel Arm (Size 1-6)

Brand: FALCON
SKU: SC71A DS AL
Availability: In Stock

Ships same day if ordered by 12 pm
$305.52
$305.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Falcon SC71A DS AL is a heavy-duty surface door closer with a dead stop parallel arm designed for commercial and institutional high-traffic installations. It is non-handed, adjustable sizes 1–6, and provides separate adjustable general speed, latch speed, and backcheck. The unit uses a 1.5-inch heat-treated steel piston, double heat-treated pinion, and UL10C-approved fluid, and is ANSI/BHMA A156.4 Grade 1 and ADA compliant.

  • Dead stop parallel arm with positive mechanical stop; non-handed for left or right swinging doors
  • Adjustable spring sizes 1–6 with separate adjustable general speed, latch speed and backcheck
  • 1.5 in heat-treated steel piston and double heat-treated pinion with UL10C-approved fluid; ANSI/BHMA A156.4 Grade 1 and ADA compliant

Product Highlights

Heavy-duty Grade 1 surface closer; adjustable 1–6; dead stop parallel arm; UL10C and ANSI/BHMA A156.4 certified.

Product Information

Standard Information

  • Brand: FALCON
  • Manufacturer Part Number: SC71A DS AL
  • Country of Origin: USA
Technical Specifications
Brand
Falcon
Manufacturer Part Number
SC71A DS AL
Series
SC70A
Type
Surface door closer
Function
Dead stop (DS) - Dead stop parallel arm
Mounting Type
Parallel arm (push side); top frame mount option described
Arm Type
Parallel arm (dead stop)
Size
Adjustable 1-6
Spring Size
1-6 (adjustable)
Piston Diameter
1.5 inches
Piston Material
Heat-treated steel
Pinion
Double heat-treated pinion
Body Material
Single-piece cast aluminum
Finish
Aluminum painted
Handing
Non-handed
Adjustments
Separate adjustable general speed, latch speed and backcheck
Fluid
UL10C-approved all-weather fluid
Closer Cover
Full plastic cover
Certifications
ANSI/BHMA A156.4 Grade 1; UL10C and UBC 7-2 (1997) compliant; ADA and ANSI A117.1 compliant
Mounting Location
Push side (parallel arm); push or pull side noted in some configurations
Door Thickness Compatibility
1-3/4 inch
Door Width Compatibility
Up to 3 ft 6 in (exterior); up to 4 ft 6 in (interior)
Maximum Opening
180 degrees
Dimensions (L x H x D)
13-5/8 in x 3-7/8 in x 2-1/8 in
UPC
043156123483
Made In
USA
