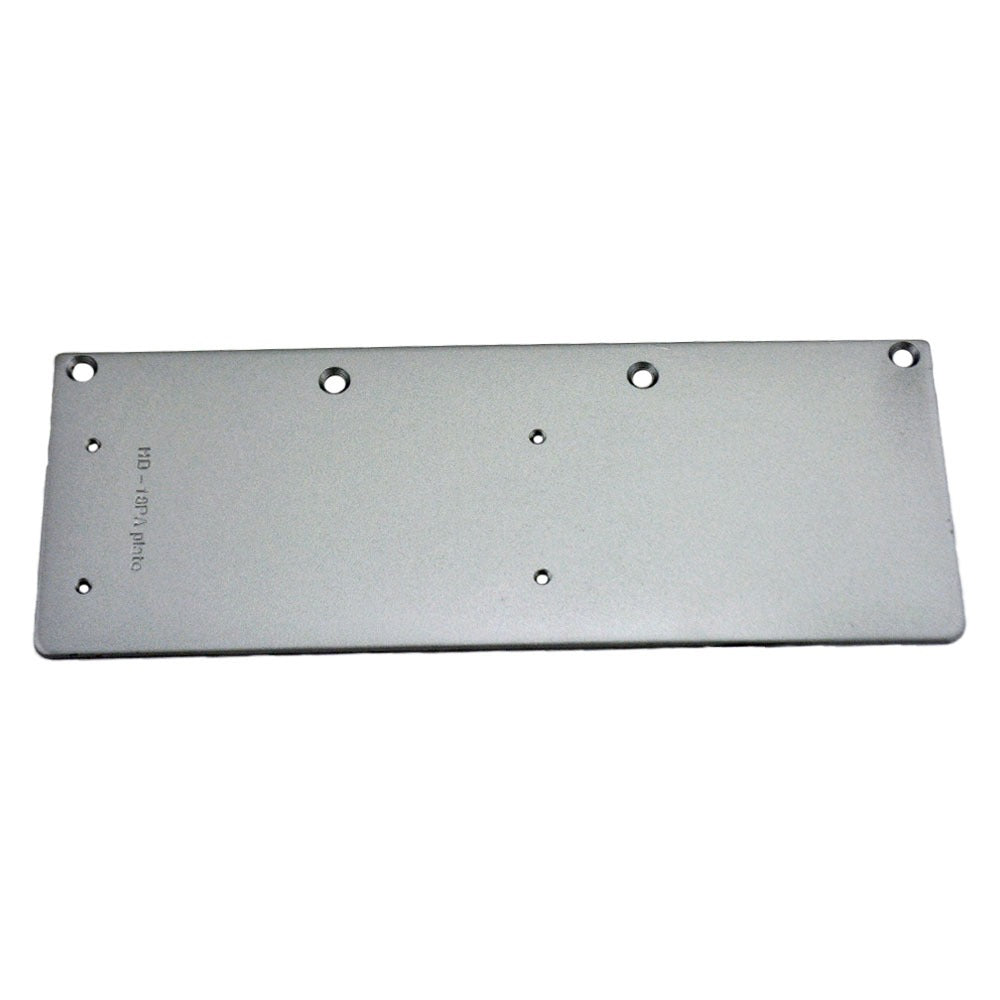

Falcon SC70A18PA689 Narrow Top Rail Drop Plate SC70 Series

Product Description

The FALCON SC70A18PA689 is a narrow top rail drop plate designed for use with the SC70 Series exit device line. This hardware component mounts to the top rail of a door to provide the correct offset and mounting surface for proper exit device installation. Finished in aluminum, it is suited for applications where consistent hardware aesthetics are required. At 16 inches long, 6 inches wide, and 0.5 inches in height, this drop plate delivers the precise geometry needed for a clean, code-compliant installation. It is typically installed by licensed door hardware technicians or commercial locksmiths during new installation or retrofit work.

This drop plate is used in commercial and institutional door hardware applications where SC70 Series exit devices are specified. It is designed for narrow top rail door configurations, making it appropriate for aluminum-framed doors common in commercial storefronts, office buildings, schools, and similar facilities. The aluminum finish coordinates with standard commercial door hardware finishes in these environments.

Key Features

• Designed specifically for SC70 Series exit devices on narrow top rail doors
• Aluminum finish for consistent hardware appearance
• Compact profile at 16 inches long, 6 inches wide, and 0.5 inches tall
• Single-unit sale for straightforward procurement
• Provides correct mounting offset for proper exit device alignment

Compatibility

Designed for use with FALCON SC70 Series exit devices on narrow top rail door configurations.

Installation Notes

Installation should be performed by a qualified door hardware technician or commercial locksmith familiar with exit device hardware. Ensure the door and frame are properly measured before mounting to confirm alignment with the exit device. Verify compliance with applicable life safety codes, including NFPA 101 and local building codes, before completing installation. Secure all fasteners fully before returning the door to service.
