Falcon MA571P SN 626 Dormitory or Exit Mortise Lock (1 Pack)

Brand: FALCON
SKU: MA571P SN 626
Availability: In Stock

Ships same day if ordered by 12 pm
$484.02
$484.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

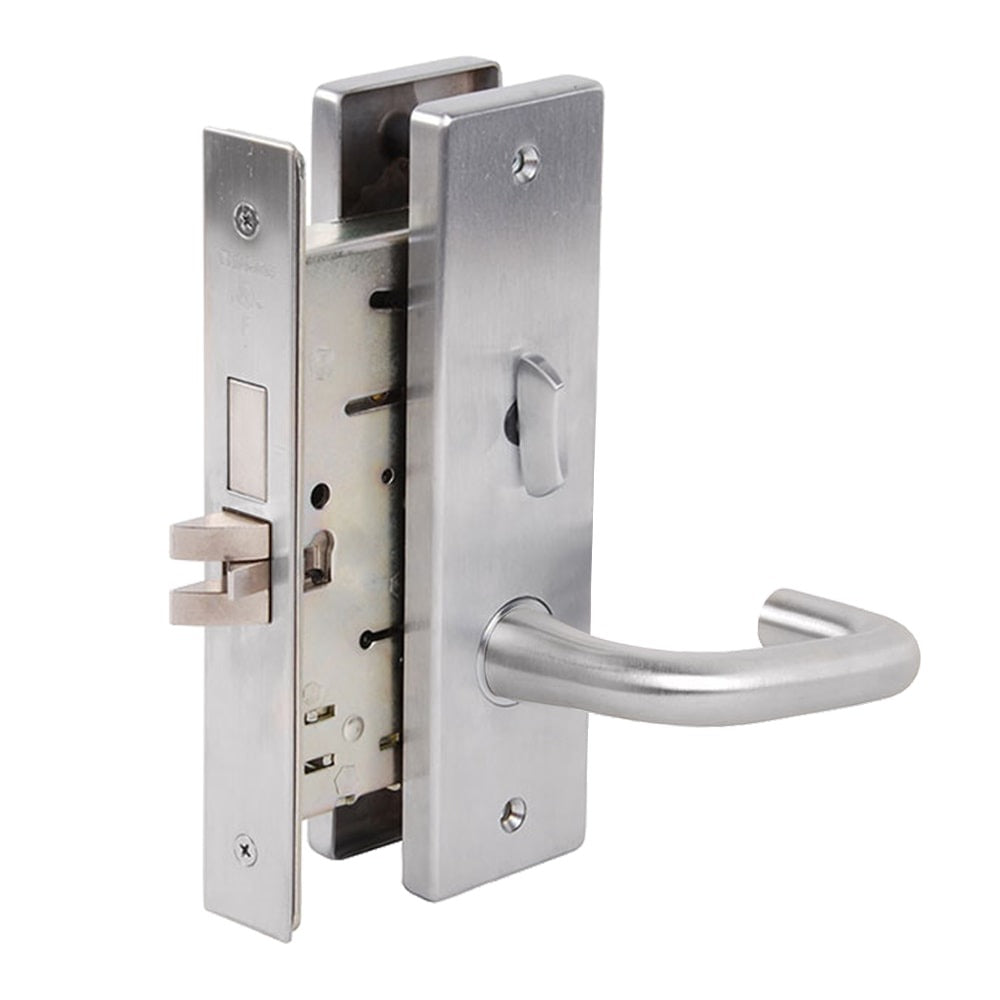

The Falcon MA571P SN 626 is a Grade 1 dormitory/exit mortise lock configured for dormitory or exit function (MA571, ANSI F13). It features a cold-formed steel case, Sutro lever on a Napa escutcheon, conventional drilled cylinder pinned in 5, a two-piece stainless steel anti-friction latch (3/4" projection) and a 1" stainless steel deadbolt. The lock meets ANSI/BHMA 156.13 Series 1000 and is UL listed for 3-hour fire doors.

  • ANSI/BHMA 156.13 Series 1000, Grade 1 mortise lock; UL listed 3-hour fire door (A label)
  • Conventional 6-pin drilled cylinder pinned in 5; furnished with two nickel silver keys; SFIC and other pinning options available
  • Two-piece stainless steel anti-friction latch (3/4" projection), 1" stainless steel deadbolt with saw-resistant hardened steel rollers; 2-3/4" backset

Product Highlights

Grade 1 dormitory/exit mortise lock with Sutro lever, Napa escutcheon, field-reversible handing, and reinforced armored faceplate.

Product Information

Standard Information

  • Brand: FALCON
  • Manufacturer Part Number: MA571P SN 626
Technical Specifications
Brand
Falcon
Manufacturer Part Number
MA571P SN 626
Model
MA571P SN
Series
MA - Grade 1
Function
Dormitory or Exit (MA571, ANSI F13)
ANSI/BHMA Standard
ANSI/BHMA 156.13 Series 1000, Grade 1
UL Listing / Fire Rating
UL listed 3-hour fire door (A label)
Door Thickness
1 3/4" - 1 7/8" (standard)
Backset
2 3/4"
Case Material
Cold formed steel, zinc dichromate plated, .090" thick
Hubs
Hardened steel
Handing
Field reversible (right hand standard; left optional)
Cylinder Type
Conventional 6-pin drilled cylinder, pinned in 5 (standard); optional 7-pin conventional or 6/7-pin SFIC available
Keying / Keys Supplied
Keyed different; two nickel silver keys supplied
Latch Bolt
Two-piece stainless steel mechanical anti-friction bolt, 3/4" projection
Deadbolt
1" throw, stainless steel with two 3/16" diameter hardened steel free-turning saw-resistant rollers
Faceplate (Armored Front)
1 1/4" x 8" brass or stainless steel, adjustable for door bevel, reinforced with stabilizing ribs
Strike
Brass or stainless steel, meets ANSI A115.1 for frame preparation, non-handed
Trim

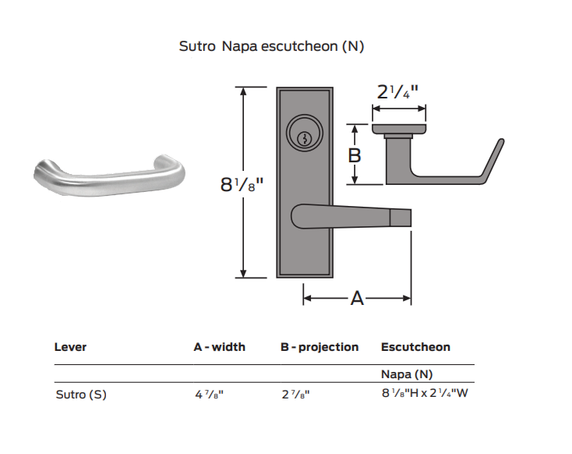

Sutro lever with Napa escutcheon
Finish / Available Finishes
626 (satin chrome); other available finishes include 605, 606, 625, 630
Electrified Functions
Available in 12 or 24 VDC
Pack Quantity
1
